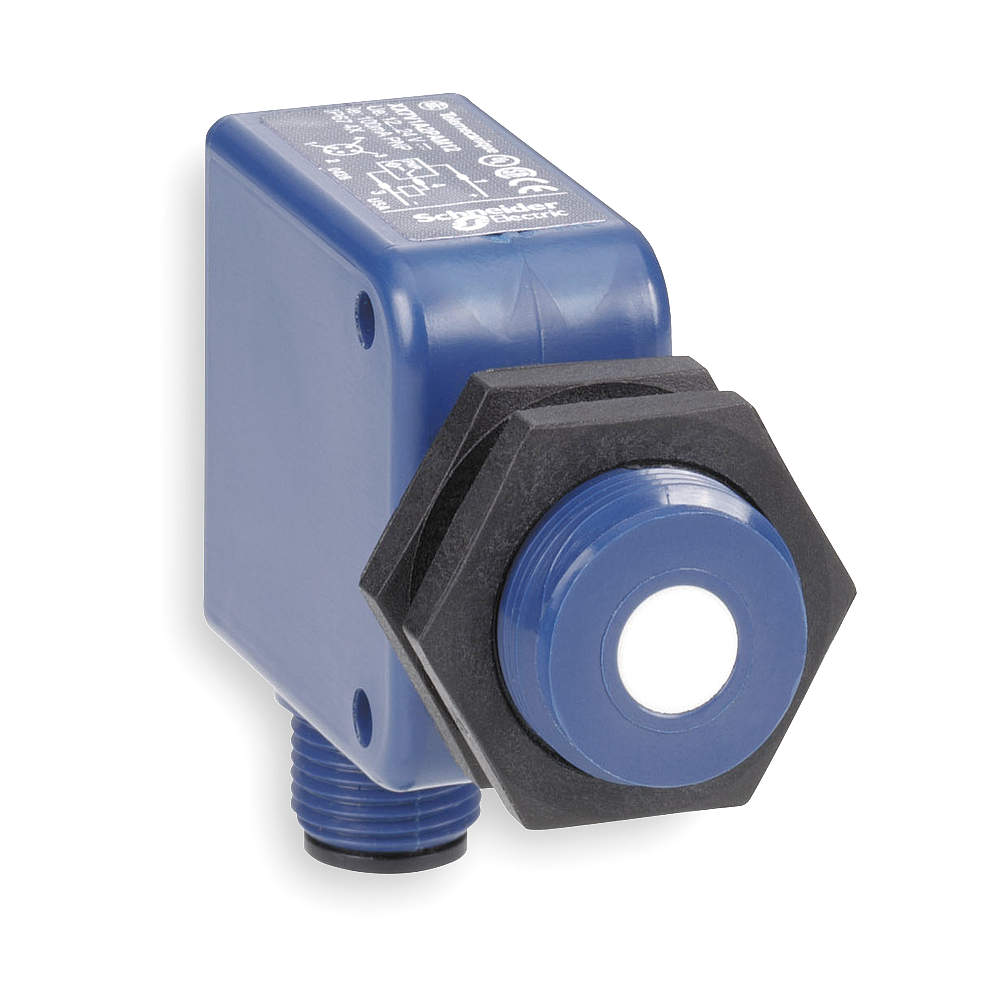

TELEMECANIQUE SENSORS VM1VAQ Ultrasonic Sensor Analog 508mm 15-24VDC
Item: AG9FURModel: VM1VAQCross Ref: 1EXB7
7 In Stock
Ships within 2 days via
5.00% off
€276.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rectangular Ultrasonic Sensor |
| Accuracy | 1.27% |
| Analog Output Signal | 0-10V DC |
| Body Material | Plastic |
| Case Material | Plastic |
| Circuit Type | Analog |
| Depth | 0.71" |
| Detecting Distance | 508mm |
| Detecting Distance | 508 mm |
| Display Qty | 1 |
| Electrical Connection | 4 Pin M12 Male Connector |
| Enclosure Material | Valox |
| Enclosure Rating | NEMA 4X |
| Features | Overload Protection, Reverse Polarity Protection, Short Circuit Protection |
| Front Material | Glass Epoxy |
| Ip Rating | IP67 |
| Length | 2.35" |
| Material | Plastic |
| Max. Load | 40 mA |
| Max. Load Amps | 40 mA |
| Max. Operating Temp. | 158°F |
| Max. Output Circuit Voltage | 10V |
| Max. Sensing Distance | 51cm |
| Min. Operating Temp. | -22°F |
| Min. Sensing Distance | 5cm |
| Nema Enclosure Rating | NEMA 4X |
| Nema Rating | NEMA 4X |
| No. Of Pins | 4 |
| Operating Frequency | 300 kHz |
| Operating Temp. | -22°F to +158°F |
| Output | 0-10V DC |
| Output Circuit Type | Analog |
| Output Signal | 0-10V DC |
| Range | 50.8 mm to 508 mm |
| Resistance Properties | Electrical Fast Transient Resistant, Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Shock Resistant, Vibration Resistant |
| Response Time | 60 ms |
| Sensor Body Style | Rectangular |
| Sensor Connector Type | M12 |
| Sensor Depth | 66 mm |
| Sensor Face Orientation | Straight |
| Sensor Height | 44 mm |
| Sensor Type | Ultrasonic Sensor |
| Sensor Width | 18 mm |
| Series | VIRTU VM1 Series |
| Straight Wireway Length | 2.35" |
| Supply Voltage | 13-28V DC |
| Switching Frequency | 300 kHz |
| Temp. | -22°F to +158°F |
| Type Of Output Signal | Analog |
| Type Of Sensing Window | Adjustable |
| Voltage | 15/24V DC |
| Width | 0.71" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 8.42 |
| Ship length (cm) | 8.42 |
| Ship width (cm) | 1.27 |
| Country of Origin | US |
Product Details:
- Special Features: Dual Mount Body Style
Product Variants
| Model | Depth | Circuit Type | Response Time | Operating Temp. | Voltage | Output | Output Type | Output Signal | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VM1PNOQ | 0.714" | Normally Open | 15 ms | -22°F to +152°F | 12/24V DC | PNP | PNP | - | €270.89 | |
| VM1NNOQ | 0.714" | Normally Open | 15 ms | -22°F to +152°F | 12/24V DC | NPN | NPN | - | €342.55 | |
| VM1CAQ | 0.714" | Analog | 60 ms | -22°F to +158°F | 15/24V DC | - | - | 4-20 mA | €286.55 | |
| VM1PNCQ | - | - | - | - | - | - | - | - | €271.96 |
