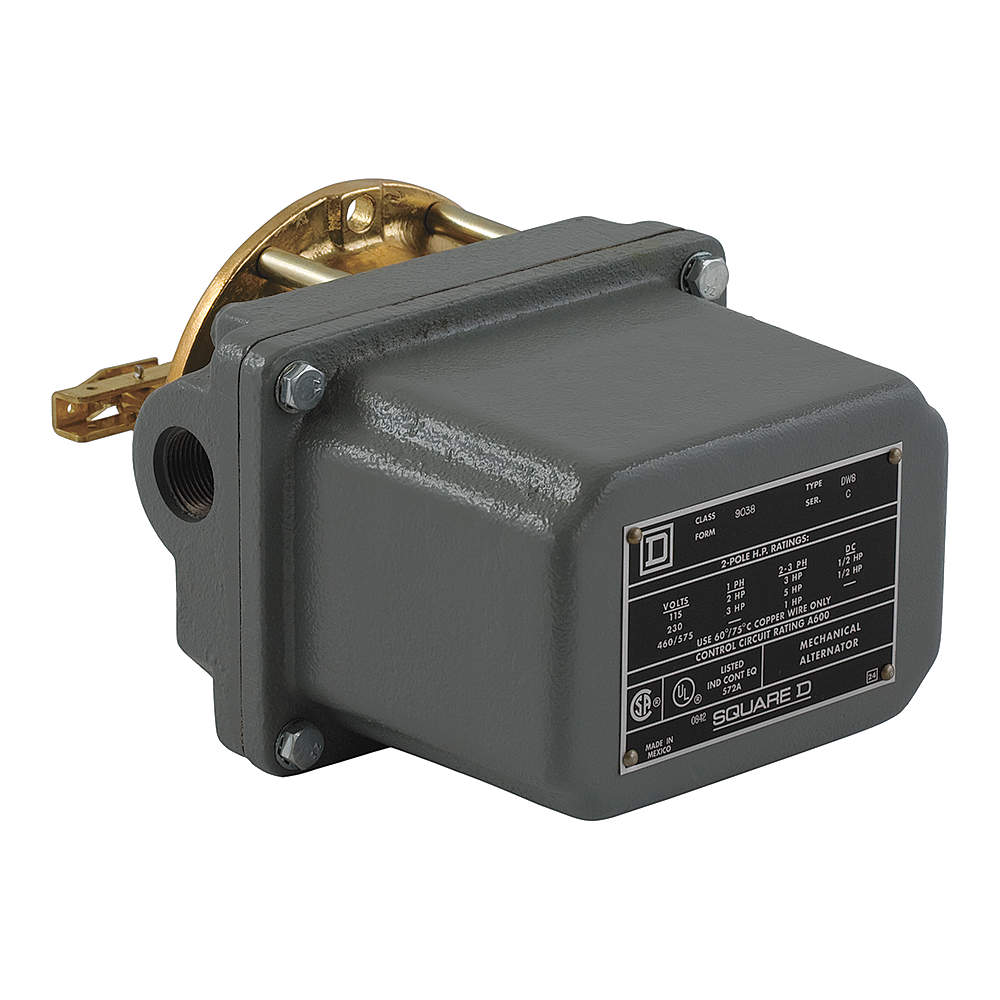

TELEMECANIQUE SENSORS 9038DW8 Alternator Liquid Level Switch Close On Rise
Get it by Tuesday, Aug 25
5.00% off
€1,583.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Alternator Liquid Level Switch |
| Amps | 600A |
| Body Material | Aluminum |
| Components Included | Float, Rod |
| Conduit Size | 2 3/4" |
| Display Qty | 1 |
| Electrical Connection | Screw Clamp |
| Electrical Connection Type | Screw Clamp |
| Float Dia. | 3.63" |
| Float Length | 4 1/2" |
| Float Length | 4.50" |
| Float Material | Stainless Steel |
| Float Position | Below |
| Float Rod Angle | Horizontal |
| Float Travel | 8 3/4" |
| Float Travel | 8-3/4" |
| Hp @ 1 Ph-240v | 3 hp |
| Hp @ 1 Phase - 115v | 2 |
| Hp @ 1 Phase-115v | 2 hp |
| Hp @ 1 Phase-120v | 2 hp |
| Hp @ 1 Phase-240v | 3 hp |
| Hp @ 3 Ph-240v | 5 hp |
| Hp @ 3 Phase-230v | 5 hp |
| Max. Amps | 600A |
| Max. Current | 600A |
| Max. Operating Temp. | 220°F |
| Max. Pressure | 50 psi |
| Max. Voltage | 575V , 600V |
| Min. Media Specific Gravity | 0.85 xg |
| Min. Operating Temp. | -22°F |
| Mounting | Vertical |
| Mounting Style | Closed Tank Vertical |
| Nema Enclosure Rating | 4 |
| No. Of Contact Form | 4 , DPST/NC |
| Operating Temp. | -22°F to +220°F |
| Overall Height | 4.47" |
| Overall Length | 2.63" |
| Overall Width | 6.84" |
| Product Type | Alternator Closed Liquid Level Switch |
| Proof Pressure | 50 psi |
| Series | 9038D Series |
| Stem Thread Size | 5 1/8" |
| Switch Function | Close On Rise |
| Tank Connection Size | 5 1/8" |
| Tank Connection Size | 5-1/8" |
| Width | 5 3/4" |
Shipping Info:
| Ship weight (kg) | 11.07 |
| Ship height (cm) | 16.03 |
| Ship length (cm) | 9.8 |
| Ship width (cm) | 14.61 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Details:
- Float Rod Angle (45 Degrees)
Product Variants
| Product | Model | Float Dia. | Max. Voltage | Float Length | Mounting | Stem Thread Size | Operating Temp. | Float Travel | Mounting Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9038CG31 | 2 1/2" | 600V | 7" | Horizontal | 2 1/2" Mnpt | -22°F to +220°F | 6 1/2" | Closed Tank Vertical | €674.39 | |
|
9038CG32 | 2 1/2" | 600V | 7" | Horizontal | 2 1/2" Mnpt | -22°F to +220°F | 6 1/2" | Closed Tank Vertical | €738.85 | |
|
9038CG33 | 2 1/2" | 600V | 7" | Horizontal | - | -22°F to +220°F | 3 3/4" | - | €759.13 | |
 |
9038CG36 | 2 1/2" | 600V | 7" | Horizontal | 2 1/2" Mnpt | -22°F to +220°F | 4 1/2" | Closed Tank Vertical | €777.54 | |
 |
9038CW32 | 2 1/2" | 575V | 7" | Vertical Open Tank | 2 1/2" Mnpt | -22°F to +200°F | 6 1/2" | Closed Tank Vertical | €1,594.57 | |
 |
9038DG7 | 3.63" | 600V | 4 1/2" | Vertical Open Tank | 5 1/8" | -22°F to +220°F | 8 3/4" | Closed Tank Vertical | €907.78 | |
|
9038DG8 | 3.63" | 600V | 4 1/2" | Vertical Open Tank | 5 1/8" | -22°F to +220°F | 8 3/4" | Closed Tank Vertical | €920.07 |
