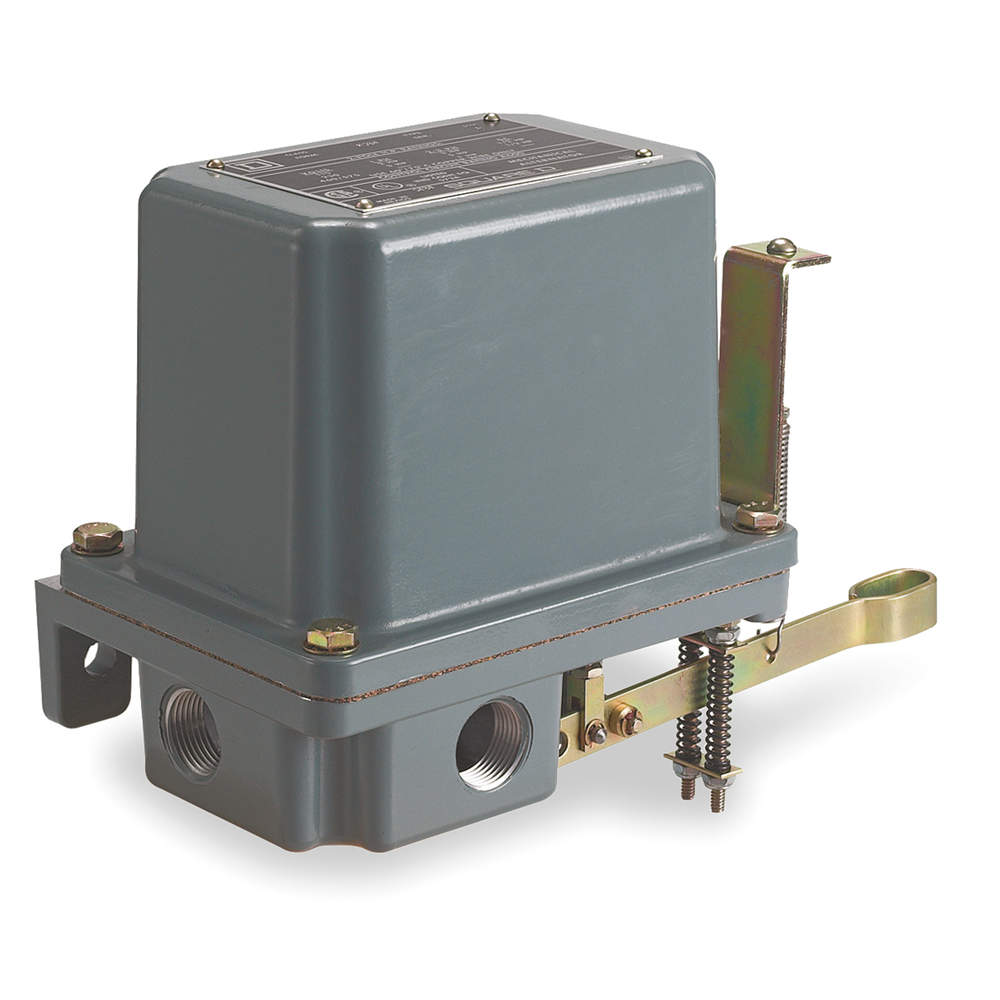

TELEMECANIQUE SENSORS 9038AR1 Alternator Liquid Level Switch Close On Rise
Item: AG6PRCModel: 9038AR1Cross Ref: 3DZY1
7 In Stock
Ships within 2 days via
5.00% off
€1,094.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Alternator Liquid Level Switch |
| Amps | 600A |
| Body Material | Aluminum |
| Conduit Size | 2 3/4" |
| Display Qty | 1 |
| Electrical Connection | Screw Clamp |
| Electrical Connection Type | Screw Clamp |
| Features | (2) Conduit Entries For 3/4" 14 Npt |
| Float Dia. | 7" |
| Float Length | 7.00" |
| Float Material | Stainless Steel |
| Float Position | Below |
| Float Rod Angle | Vertical |
| Float Travel | 1-1/4" |
| Float Travel | 1 1/4" |
| Height | 6.86" |
| Hp @ 1 Ph-240v | 3 hp |
| Hp @ 1 Phase - 115v | 2 |
| Hp @ 1 Phase-115v | 2 hp |
| Hp @ 1 Phase-120v | 2 hp |
| Hp @ 1 Phase-240v | 3 hp |
| Hp @ 3 Ph-240v | 5 hp |
| Hp @ 3 Phase-230v | 5 hp |
| Max. Amps | 600A |
| Max. Current | 600A |
| Max. Operating Temp. | 220°F |
| Max. Voltage | 575V AC , 600V |
| Min. Media Specific Gravity | 0.85 xg |
| Min. Operating Temp. | -22°F |
| Mounting | Vertical Open Tank |
| Mounting Style | Open Tank Vertical |
| Nema Enclosure Rating | NEMA 7, NEMA 9 |
| No. Of Contact Form | 4 , DPST/NC |
| Operating Temp. | -22°F to +220°F |
| Overall Height | 6.86" |
| Overall Length | 11.88" |
| Overall Width | 5.35" |
| Product Type | Alternator Open Liquid Level Switch |
| Series | 9038A Series |
| Switch Function | Close On Rise |
| Va | 460V AC |
| Width | 5.35" |
Shipping Info:
| Ship weight (kg) | 4.09 |
| Ship height (cm) | 29.87 |
| Ship length (cm) | 75.87 |
| Ship width (cm) | 11.76 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Variants
| Model | Body Material | Max. Voltage | Height | Switch Function | Float Material | Float Dia. | Operating Temp. | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9038AG1 | Steel | 600V | 4 1/2" | Close On Rise | Stainless Steel | 7" | -22°F to +220°F | Vertical Open Tank | €369.58 | |
| 9038AW1 | Aluminum | 600V | 4 1/2" | Close On Rise | Stainless Steel | 7" | -22°F to +220°F | Vertical Open Tank | €1,177.86 | |
| 9038AG1C | Steel | 600V | 4 1/2" | Close On Rise | Stainless Steel | 7" | -22°F to +220°F | Vertical Open Tank | €415.01 | |
| 9038AG1N4 | Steel | 600V | 4 1/2" | Close On Rise | Stainless Steel | 7" | -22°F to +220°F | Vertical Open Tank | €465.40 | |
| 9038AG1N5 | Steel | 600V | 4 1/2" | Close On Rise | Stainless Steel | 7" | -22°F to +220°F | Vertical Open Tank | €598.23 | |
| 9038AW1N5 | Aluminum | 600V | 6.86" | Close On Rise | Stainless Steel | 7" | -22°F to +220°F | Vertical Open Tank | €1,396.05 |
