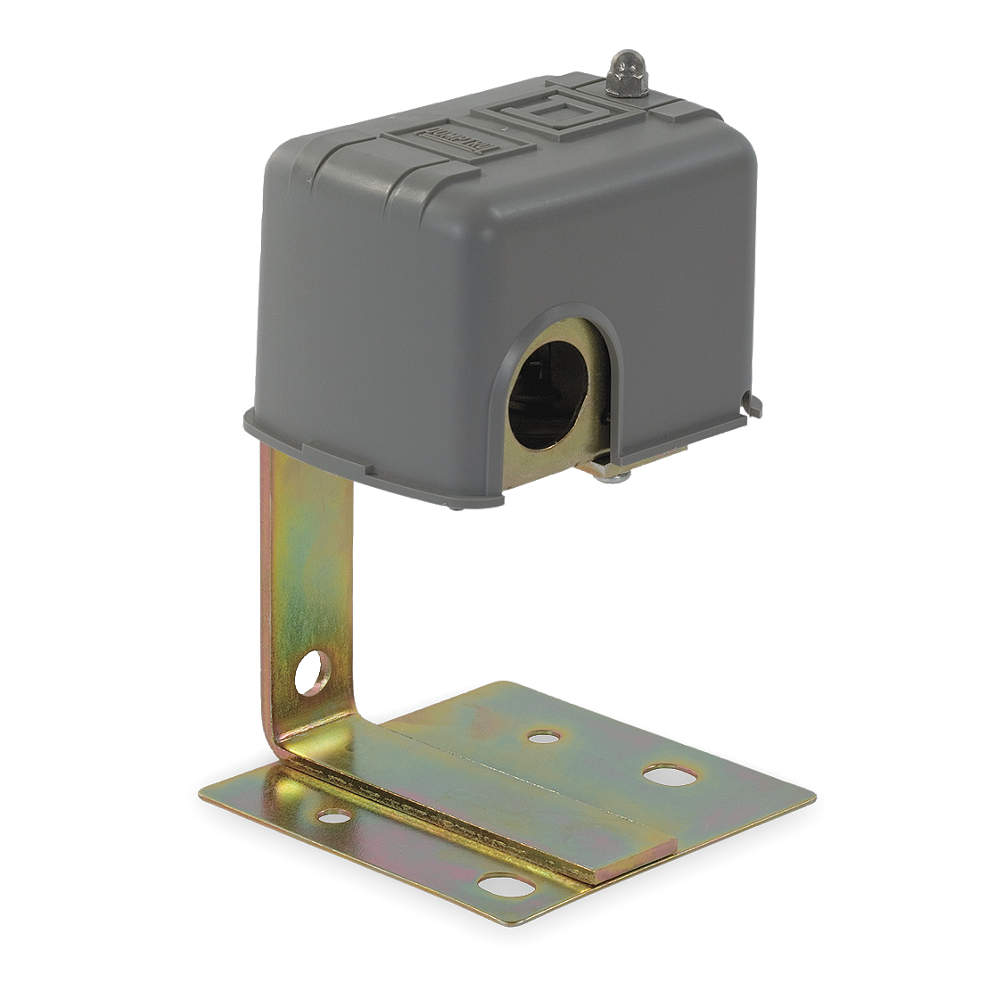

TELEMECANIQUE SENSORS 9036FG30 Float Switch, Open Tank, NEMA 1, Pedestal Mounted, 2 NC DPST DB Contacts, 127 cm Lg
Get it by Friday, Jul 3
5.00% off
€42.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Liquid Level Switch |
| Amps | 600A |
| Body Material | Polypropylene |
| Components Included | Mechanical Actuator |
| Conduit Size | 2 7/8" |
| Display Qty | 1 |
| Electrical Connection | Screw Clamp |
| Electrical Connection Type | Screw Clamp |
| Features | (2) 0.88" Cable Entries With 0.84" Across Flats |
| Float Dia. | 7" |
| Float Length | 7" |
| Float Length | 7.00" |
| Float Material | Stainless Steel |
| Float Position | Below |
| Float Rod Angle | Vertical |
| Float Travel | 1 1/4" |
| Float Travel | 1-1/4" |
| Height | 4 1/2" |
| Hp @ 1 Ph-240v | 3 hp |
| Hp @ 1 Phase - 115v | 2 |
| Hp @ 1 Phase-115v | 2 hp |
| Hp @ 1 Phase-120v | 2 hp |
| Hp @ 1 Phase-240v | 3 hp |
| Hp @ 3 Phase-230v | 5 hp |
| Hp @ 3 Phase-240v | 5 hp |
| Max. Amps | 600A |
| Max. Current | 600A |
| Max. Operating Temp. | 220°F |
| Max. Voltage | 575V AC , 600V |
| Min. Media Specific Gravity | 0.85 xg |
| Min. Operating Temp. | -22°F |
| Mounting | Vertical Open Tank |
| Mounting Style | Open Tank Vertical |
| Nema Enclosure Rating | 1 |
| No. Of Contact Form | 2 , DPST/NC |
| Operating Temp. | -22°F to +220°F |
| Overall Height | 4 1/2" |
| Overall Length | 4.38" |
| Overall Width | 2.55" |
| Product Datasheet | telemecanique-sensors-9036fg30.pdf |
| Product Type | Open Liquid Level Switch |
| Series | 9036FG Series |
| Switch Function | Close On Rise |
| Va | 460V AC |
| Width | 2.55" |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 50.01 |
| Ship length (cm) | 127 |
| Ship width (cm) | 19.69 |
| HS code | 8536509065 |
| Country of Origin | MX |
