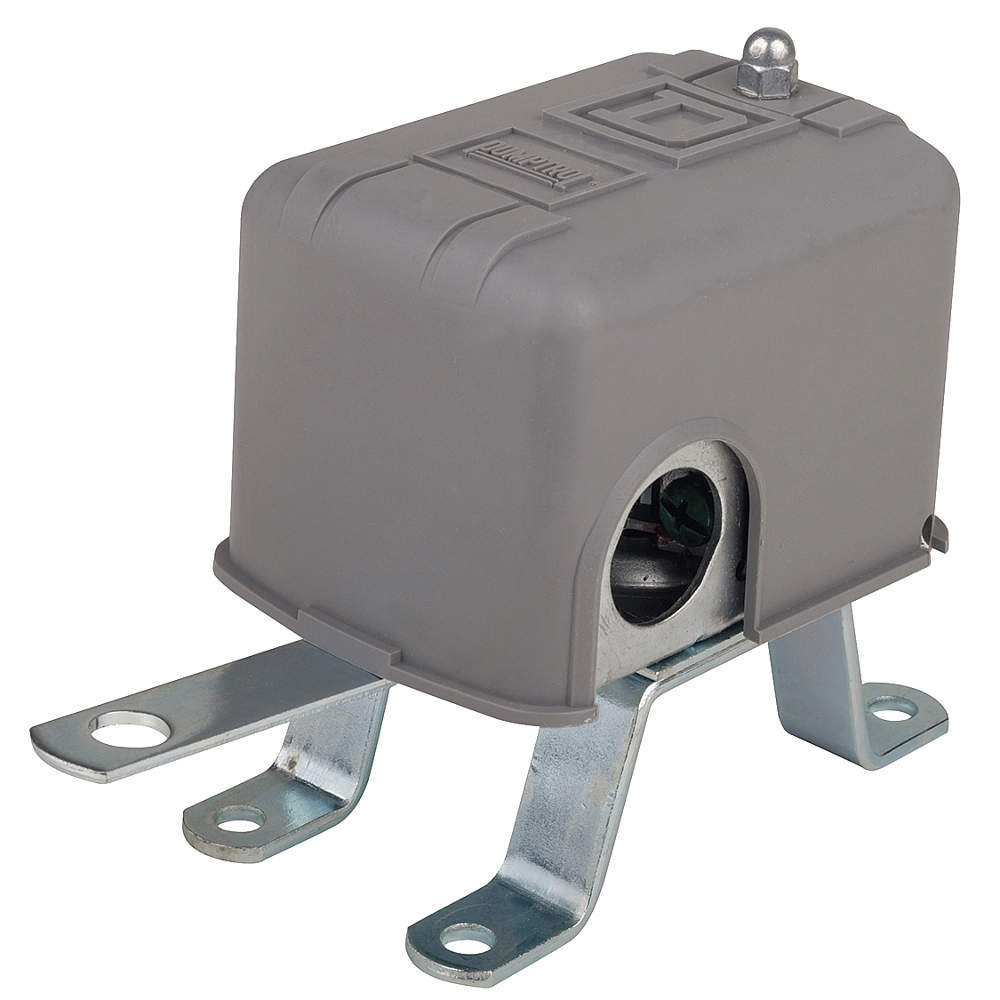

TELEMECANIQUE SENSORS 9036DG2 Liquid Level Switch Close On Rise
Item: AF9GMTModel: 9036DG2Cross Ref: 2FH59
7 In Stock
Ships within 2 days via
5.00% off
€101.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Liquid Level Switch |
| Amps | 10A |
| Body Material | Polypropylene |
| Components Included | Mechanical Actuator |
| Conduit Size | 3 1/2" |
| Display Qty | 1 |
| Electrical Connection | Screw Clamp |
| Electrical Connection Type | Screw Clamp |
| Features | (3) Knock Outs Conduit Entries For 1/2" |
| Float Dia. | 7" |
| Float Length | 7" |
| Float Length | 7.00" |
| Float Material | Stainless Steel |
| Float Position | Below |
| Float Rod Angle | Vertical |
| Height | 4.27" |
| Hp @ 1 Ph-240v | 3 hp |
| Hp @ 1 Phase - 115v | 2 |
| Hp @ 1 Phase-120v | 2 hp |
| Hp @ 1 Phase-240v | 3 hp |
| Hp @ 3 Phase-230v | 5 hp |
| Hp @ 3 Phase-240v | 5 hp |
| Max. Amps | 600A |
| Max. Current | 600A |
| Max. Operating Temp. | 220°F |
| Max. Voltage | 575V , 575V AC |
| Min. Media Specific Gravity | 0.85 xg |
| Min. Operating Temp. | -22°F |
| Mounting Style | Open Tank Vertical |
| Nema Enclosure Rating | 1 |
| No. Of Contact Form | 2 , DPST/NC |
| Operating Temp. | -22°F to +220°F |
| Overall Height | 4.27" |
| Overall Length | 7.1" |
| Overall Width | 2.53" |
| Product Type | Open Liquid Level Switch |
| Series | 9036D Series |
| Switch Function | Close On Rise |
| Va | 460V AC |
| Width | 2.53" |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 8.41 |
| Ship length (cm) | 17.3 |
| Ship width (cm) | 12.4 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Variants
| Model | Body Material | Max. Voltage | Switch Function | Amps | Height | Conduit Size | Float Material | Float Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9036DG2C | Polypropylene | 575V | - | 600A | 4.27" | 3 1/2" | Stainless Steel | 7" | €121.91 | |
| 9036DG2R | Polypropylene | 575V | Open On Rise | 600A | 4.27" | 3 1/2" | Stainless Steel | 7" | €116.02 | |
| 9036DR31 | Aluminum | 575V | Close On Rise | 600A | - | 2 3/4" | Stainless Steel | 7" | €589.44 | |
| 9036DW31 | Aluminum | 575V | Close On Rise | 10A | 4.27" | 2 3/4" | Stainless Steel | 7" | €661.36 | |
| 9036DG2CR | Polypropylene | 600V | Open On Rise | 600A | 4 1/2" | - | Stainless Steel | 7" | €135.77 | |
| 9036DR31C | Aluminum | 600V | Close On Rise | 600A | 5 1/4" | 2 3/4" | Stainless Steel | 7" | €544.25 |
