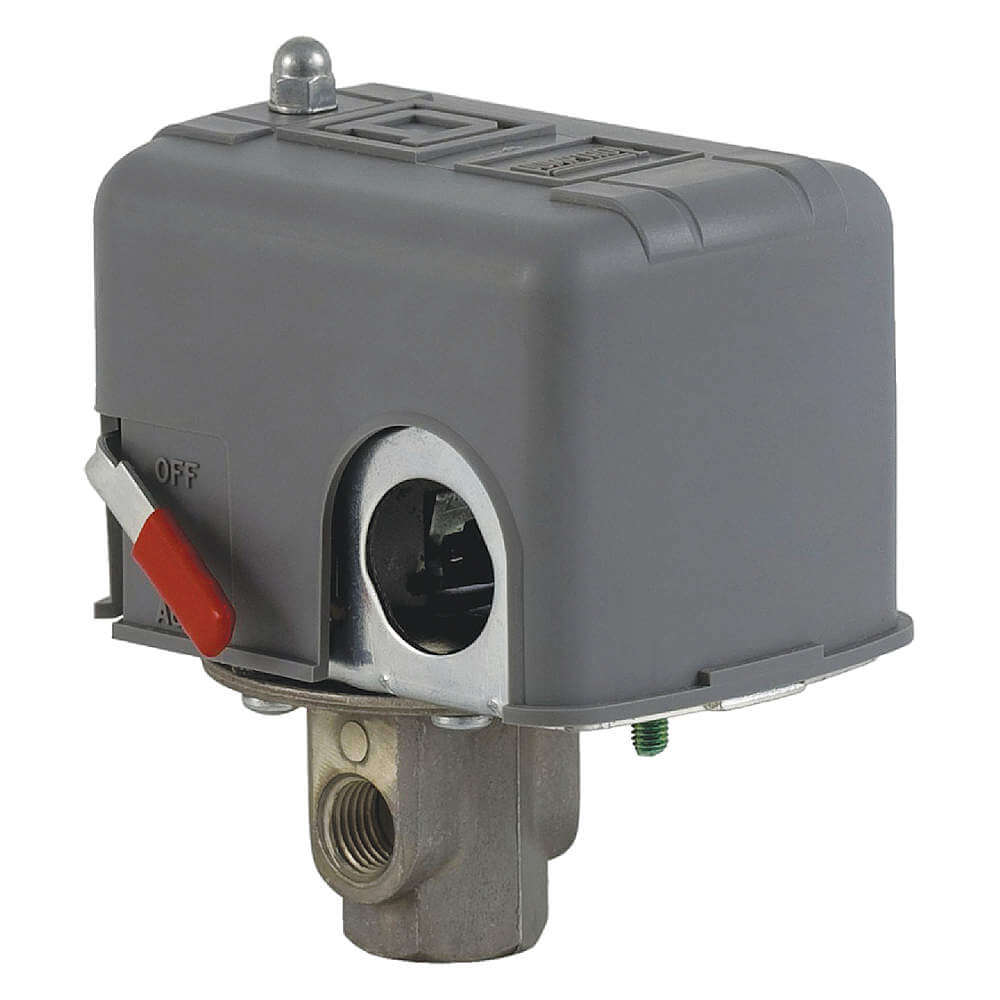

TELEMECANIQUE SENSORS 9013FHG12J52M1X Pressure Switch 1/4 FNPS 40 to 150 psi
Item: AH9JUUModel: 9013FHG12J52M1XCross Ref: 3AY90
7 In Stock
Ships within 2 days via
5.00% off
€83.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Switch |
| Ac Contact Rating | 10A @ 575V |
| Action Type | Standard |
| Actuator Style | Diaphragm |
| Applications | Air Compressor |
| Differential | 30 psi |
| Display Qty | 1 |
| Factory Off Setting | 125 psi |
| Factory On Setting | 95 psi |
| Hp @ 1 Ph-240v | 2 hp |
| Hp @ 1 Phase-120v | 1 1/2 hp |
| Hp @ 3 Ph-240v | 3 hp |
| Hp @ 3 Phase-480v | 1 hp |
| Manual Switch Action | Auto/Off |
| Max. Differential Pressure | 30 psi |
| Max. Media Temp. | 257°F |
| Max. Operating Temp. | 257°F |
| Max. Pressure | 150 psi |
| Min. Media Temp. | -33°F |
| Min. Operating Temp. | -33°F |
| Min. Pressure | 70 psi |
| Nema Enclosure Rating | 1 |
| No. Of Contact Form | 2 , NC |
| No. Of Pressure Connection Ports | 1 |
| Overall Depth | 3.76" |
| Overall Height | 3.71" |
| Overall Width | 3.1" |
| Pressure Connection Type | FNPS |
| Pressure Switch Action Type | Standard |
| Primary Application | Air Compressor |
| Product Type | Air Compressor Switch |
| Range | 40 psi to 150 psi |
| Series | 9013FH Series |
| Switch Function Configuration | Auto/Off |
| Temp. | -22°F to +257°F |
| Unloader | 1/4" Compression Unloader Included |
Shipping Info:
| Ship weight (kg) | 0.42 |
| Ship height (cm) | 25.81 |
| Ship length (cm) | 65.56 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
Product Details:
- HP @ 3 Phase - 240V : 3
- Pressure Switch Unloader : 1/4" Compression
- Special Features: Nitrile (Buna-N) Diaphragm
Product Variants
| Model | Overall Width | Overall Height | Range | Hp @ 1 Phase-120v | Differential | Manual Switch Action | Primary Application | Applications | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9013FHG12J52M1 | 3.1" | 3.71" | 40 psi to 150 psi | 1 1/2 hp | 30 psi | Auto/Off | Air Compressor | Air Compressor | €61.07 | |
| 9013FHG24J27M1X | 3.1" | 4.45" | 20 psi to 100 psi | 2 hp | 20 psi | Auto/Off | Air Compressor | Air Compressor | €121.63 | |
| 9013FHG2J27M1 | 3.1" | 2 4/5" | 20 psi to 100 psi | 1 1/2 hp | 20 psi | Auto/Off | Air Compressor | Air Compressor | €64.01 | |
| 9013FHG52J59 | 2.78" | 3.71" | 60 psi to 200 psi | 2 hp | 40 psi | None | Air Compressor | Air Compressor | €78.58 | |
| 9013FHG52J59X | 2.78" | 3.71" | 60 psi to 200 psi | 2 hp | 40 psi | None | Air Compressor | Air Compressor | €94.55 | |
| 9013FHG12J52X | 2.78" | 3.71" | 40 psi to 150 psi | 1 1/2 hp | 30 psi | None | Air Compressor | Air Compressor | €80.48 | |
| 9013FHG12J55 | 2.78" | 3.71" | 40 psi to 150 psi | 1 1/2 hp | 30 psi | None | Air Compressor | Air Compressor | €53.15 |
