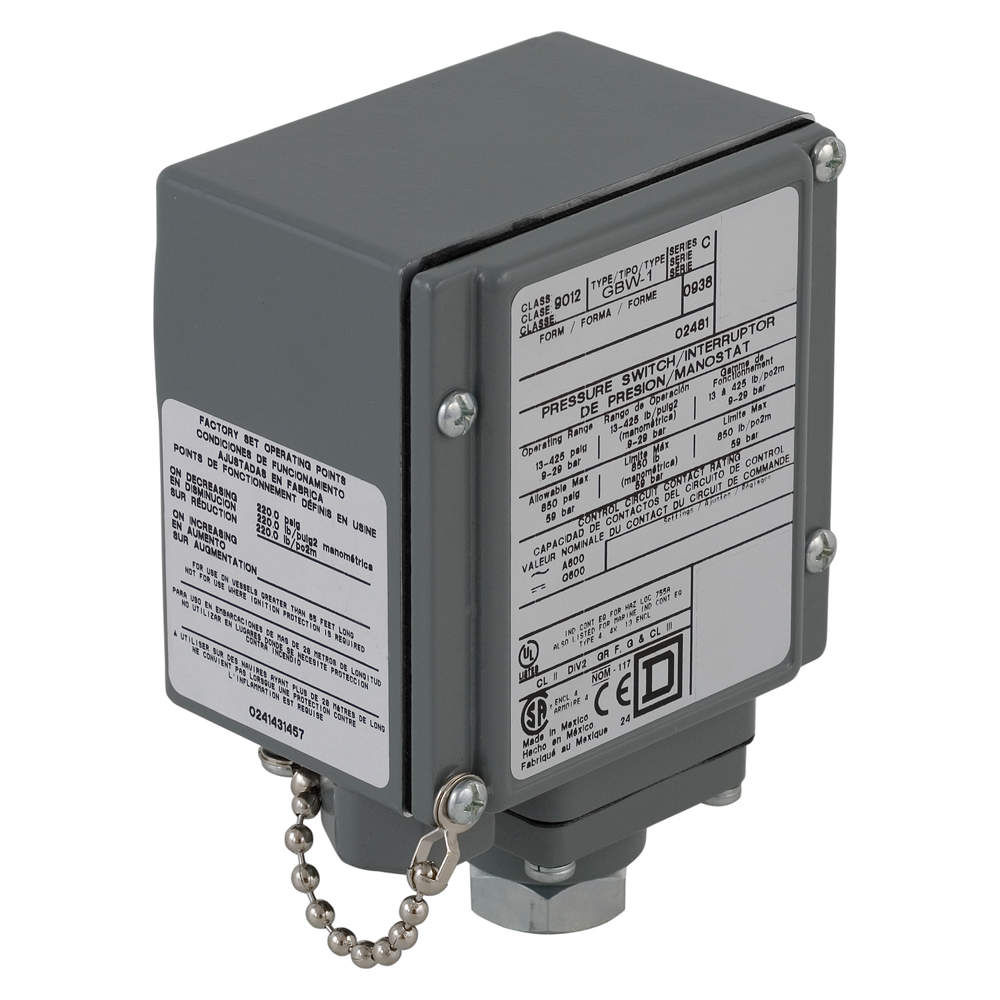

TELEMECANIQUE SENSORS 9012GBW1 Pressure Switch, Adjustable Scale, 2 Thresholds, 13 to 425 PSIG

Square D 9012GBW1 pressure switch is used in pneumatic and hydraulic systems to monitor and control fluid pressure. It ensures proper system operation, safety, and equipment protection by activating or deactivating based on preset pressure levels. This pressure switch features screw clamp terminals for electrical connection and 0.25 inch 18 NPTF inlet for easy fluid connection. It comes with a diaphragm actuator, adjustable differential scale and dual threshold regulation. This pressure switch comes with 5 million operating cycles and has a die-cast aluminium alloy 380 enclosure for increased protection and corrosion resistance.

Frequently Asked Questions:

Q. How do I install Square D 9012GBW1 pressure switch?

A.

• Mount the switch securely.
• Connect fluid lines.
• Wire terminals as per diagram.
• Set levels for pressure.
• Test triggering functionality.
• Secure all connections.
• Label the switch and note settings.
• Check for safety and regulatory compliance.

Q. What safety precautions should I take while using this pressure switch?

A.

• Understand user manual.
• Check for damage.
• Operate within pressure limits.
• Install correctly.
• Use protective equipment.

Q. Does Raptor Supplies offer Square D 9012GBW1 pressure switch with higher pressure rating?

A. Yes, Customers looking for Square D pressure switches with higher pressure ranges may opt for 9012GCW1 and 9012GFW22 pressure switch having pressure ratings of 20 to 1000 psi and 90 to 2900 psi, respectively.
