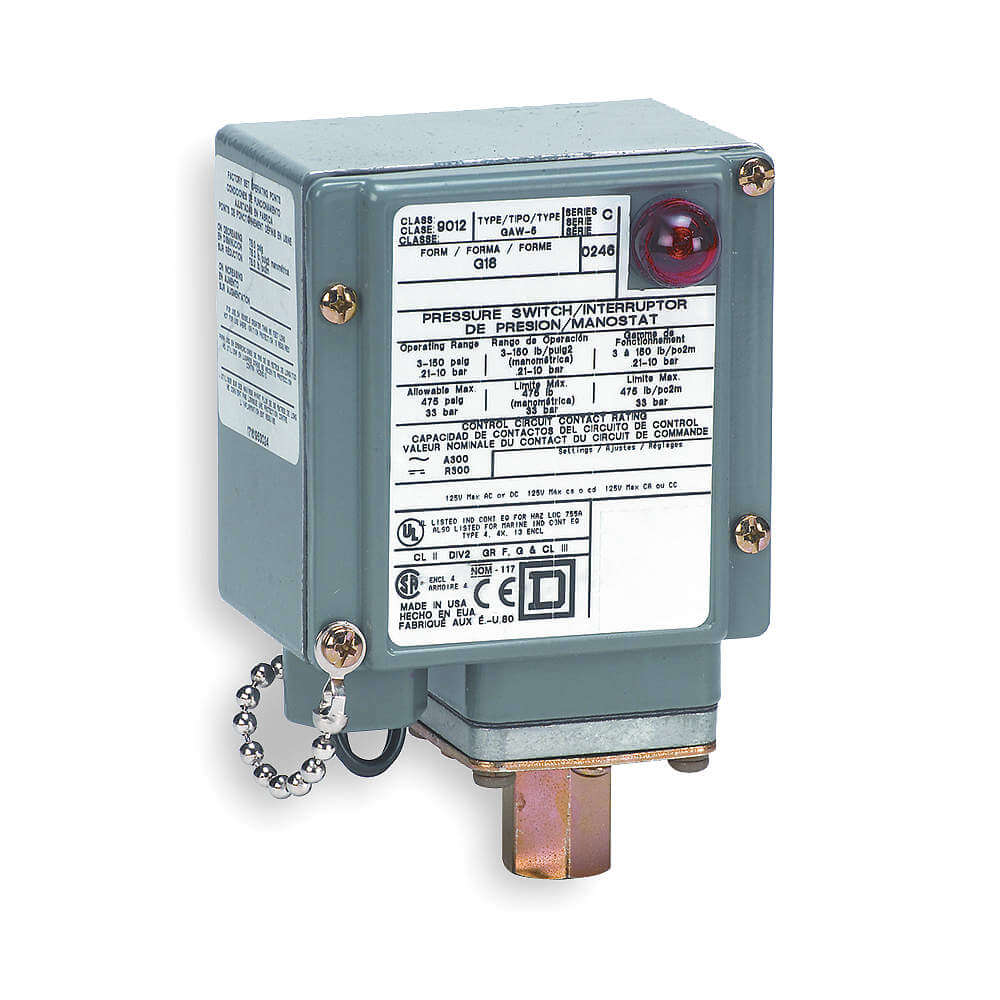

TELEMECANIQUE SENSORS 9012GAW5G17 Pressure Switch SPDT Diaphragm 1/4-18 FNPT
Get it by Tuesday, Jul 14
5.00% off
€659.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pressure Switch |
| Ac Contact Rating | 6A @ 120V |
| Action Type | Standard |
| Actuation Type | Diaphragm |
| Dc Contact Rating | 0.22A @ 125V |
| Deadband Adjustability | Adjustable |
| Differential | 6 psi to 30 psi |
| Max. Differential Pressure | 30 psi |
| Max. Media Temp. | 250°F |
| Max. Operating Temp. | 185°F |
| Max. Pressure | 150 psi |
| Min. Differential Pressure | 6 psi |
| Min. Media Temp. | -40°F |
| Min. Operating Temp. | -10°F |
| Min. Pressure | 3 psi |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 13 |
| No. Of Contact Form | 2 , NO/NC |
| No. Of Pressure Connection Ports | 1 |
| Overall Depth | 3.11" |
| Overall Height | 5.55" |
| Overall Width | 3 1/2" |
| Pressure Connection Type | 1/4"-18 FNPT |
| Proof Pressure | 475 psi |
| Range | 3 psi to 150 psi |
| Series | 9012G Series |
Shipping Info:
| Ship weight (kg) | 1.33 |
| Ship height (cm) | 61.29 |
| Ship length (cm) | 155.68 |
| Ship width (cm) | 24.13 |
| Country of Origin | MX |
Product Variants
| Model | Ac Contact Rating | Actuation Type | Range | Dc Contact Rating | Overall Width | Max. Pressure | Differential | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9012GNG5 | 3A @ 240V, 6A @ 120V | Diaphragm | 3 psi to 150 psi | 0.22A @ 125V, 0.27A @ 250V | 2.21" | 150 psi | 4.2 psi to 13.2 psi | - | €494.53 | |
| 9012GNG6 | 3A @ 240V, 6A @ 120V | Diaphragm | 5 psi to 250 psi | 0.22A @ 125V, 0.27A @ 250V | 2.21" | 250 psi | 7.4 psi to 33.6 psi | - | €565.99 | |
| 9012GAW5G18 | 6A @ 120V | Diaphragm | 3 psi to 150 psi | 0.22A @ 125V | 3 1/2" | 150 psi | 6 psi to 30 psi | - | €710.52 | |
| 9012GCW1G18 | 6A @ 120V | Piston | 20 psi to 1000 psi | 0.22A @ 125V | 3 1/2" | 1000 psi | 59 psi to 200 psi | - | €1,464.21 | |
| 9012GNG1 | 3A @ 240V, 6A @ 120V | Diaphragm | 0.2 psi to 10 psi | 0.22A @ 125V, 0.27A @ 250V | 4.38" | 10 psi | 0.4 psi to 0.9 psi | Non NEMA | €723.20 | |
| 9012GNG3 | 3A @ 240V, 6A @ 120V | Diaphragm | 1 psi to 40 psi | 0.22A @ 125V, 0.27A @ 250V | 2.21" | 40 psi | 1.2 psi to 3.6 psi | Non NEMA | €664.81 | |
| 9012GNG4 | 3A @ 240V, 6A @ 120V | Diaphragm | 1.5 psi to 75 psi | 0.22A @ 125V, 0.27A @ 250V | 2.21" | 75 psi | 2.2 psi to 6.6 psi | Non NEMA | €612.42 |
