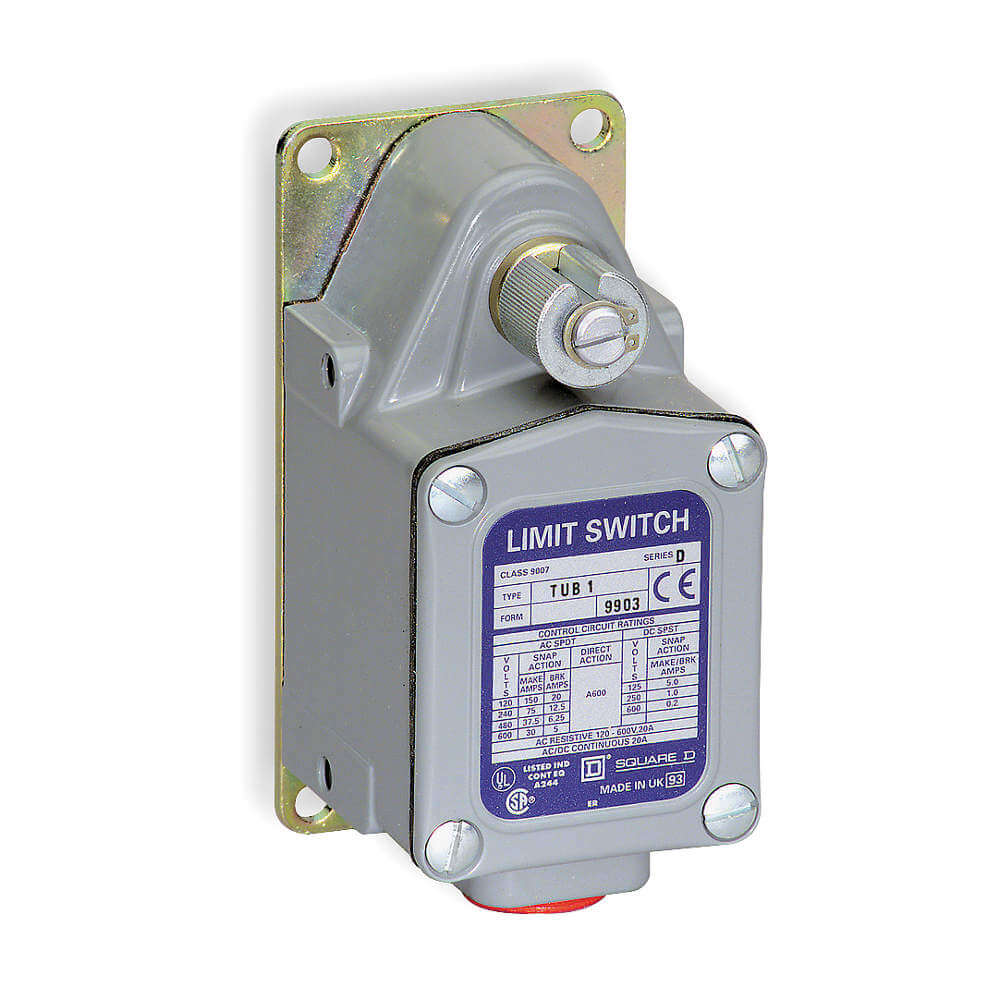

TELEMECANIQUE SENSORS 9007FTUB4 Severe Duty Limit Switch Side Actuator Spdt
Item: AF9FXNModel: 9007FTUB4Cross Ref: 2EG60
7 In Stock
Ships within 2 days via
5.00% off
€871.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Severe Duty Limit Switch |
| Ac Contact Rating | 12.5A @ 240V, 20A @ 120V, 5A @ 600V, 6.25A @ 480V |
| Actuator Location | Side |
| Actuator Style | No Lever, Rotary Head |
| Body Depth | 2.44" |
| Body Height | 4.66" |
| Body Material | Zinc |
| Body Width | 2.25" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | SPDT |
| Dc Contact Rating | 0.2A @ 600V, 1A @ 250V, 5A @ 120V |
| Directional Movement | CCW/CW |
| Electrical Connection | Screw Clamp Terminals |
| Height | 4.66" |
| Included Actuator | Actuator Not Included |
| Ip Rating | IP67 |
| Max. Operating Temp. | 185°F |
| Max. Operating Torque | 12 lbs.-in. |
| Min. Operating Temp. | -10°F |
| Mounting Hole Dia. | 1/4" |
| Mounting Hole Horizontal Center To Center Distance | 46 mm |
| Mounting Hole Vertical Center To Center Distance | 107 mm |
| Mounting Style | Surface |
| Movement | CW/CCW |
| Nema Enclosure Rating | Nema 1, Nema 2, Nema 4, Nema 12, Nema 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4 |
| No. Of Mounting Holes | 4 |
| Operating Temp. | -10°F to +185°F |
| Overall Depth | 3.41" |
| Overall Height | 4.66" |
| Overall Width | 2 1/4" |
| Pre-travel | 6° |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | 9007FT Series |
| Total Travel | 89° |
| Width | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 1.1 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 9.4 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Variants
| Product | Model | Actuator Style | Electrical Connection | Movement | Contact Form | Nema Rating | Ip Rating | Height | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007TSB1 | No Lever, Rotary Head | Screw Clamp Terminals | CCW/CW | SPDT | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4 | IP67 | 4.66" | Zinc | €679.92 | |
|
9007TUB3 | No Lever, Rotary Head | Screw Clamp Terminals | CW/CCW, Maintained | SPDT | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4 | IP67 | 4.66" | Zinc | €588.20 | |
 |
9007FTUB1 | Rotary | Screw Clamp Terminals | CW | SPDT | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4 | IP67 | 4.66" | Zinc | €841.85 | |
|
9007TUB5 | No Lever, Rotary Head | Screw Terminal | Counter Clockwise | SPDT | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4 | - | 4.66" | Zinc | €629.44 | |
|
9007TUB4 | No Lever, Rotary Head | Screw Clamp Terminals | CCW/CW | SPDT | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4 | IP67 | 4.66" | Zinc | €692.76 | |
|
9007TUB1 | No Lever, Rotary Head | Screw Clamp Terminals | CW | SPDT | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4 | IP67 | 4.66" | Zinc | €631.55 |
