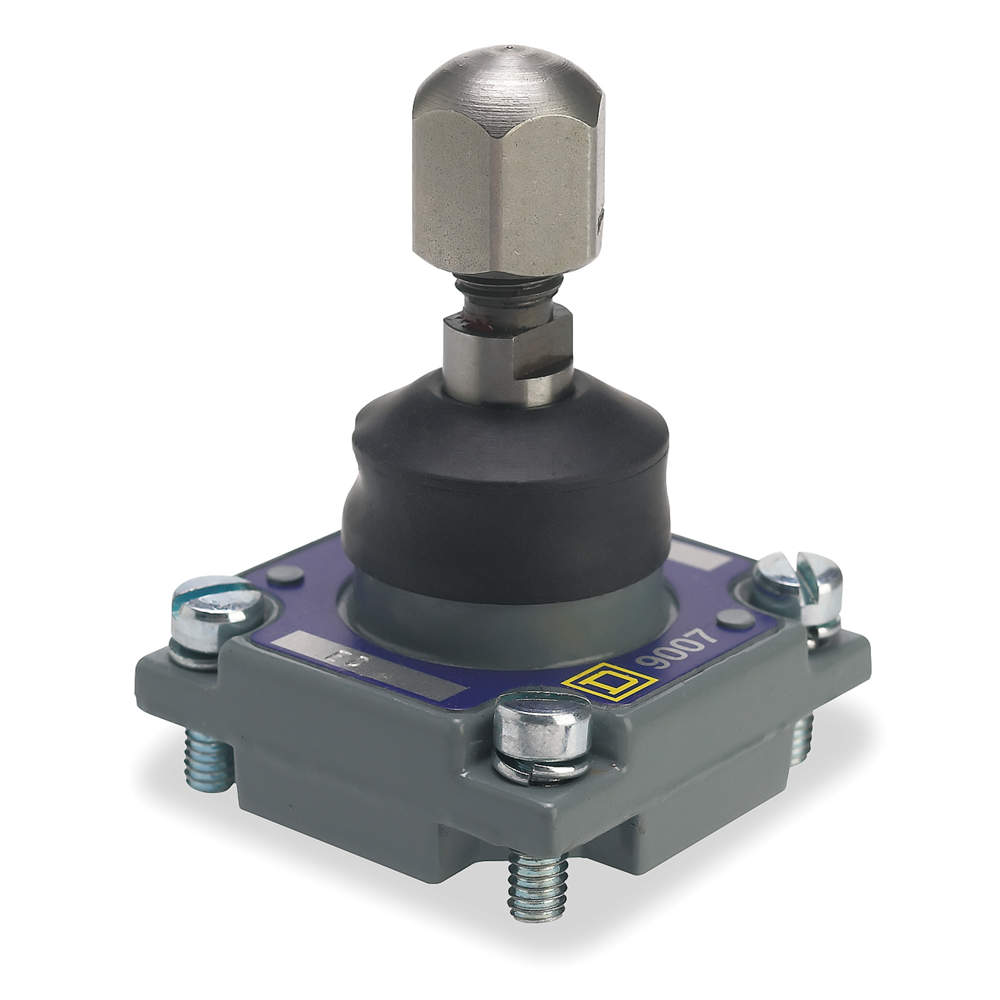

TELEMECANIQUE SENSORS 9007ED Limit Switch Head Pushrod Plunger F/9007
Item: AF9FXLModel: 9007EDCross Ref: 2EG53
7 In Stock
Ships within 2 days via
5.00% off
€170.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch Head |
| Action | Momentary |
| Actuator Length | 0.83" |
| Actuator Location | Top |
| Actuator Style | Plunger |
| Arm/operator Length | 0.83" |
| Compatible With Series | 9007C Series |
| Contact Form | Not Applicable |
| Directional Movement | Linear |
| Display Qty | 1 |
| Included Actuator | Actuator Included |
| Max. Operating Temp. | 185°F |
| Min. Operating Temp. | 0°F |
| Movement | Vertical |
| Nema Enclosure Rating | NEMA 4, NEMA 6P, NEMA 13 |
| Nema Rating | Non NEMA |
| Operating Force | 4 lbs.-in. |
| Operating Temp. | 0°F to +185°F |
| Operating Torque | 4 lbs.-in. |
| Total Travel | 1/4" |
| Travel | 1/4" |
| Travel Length | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 4.57 |
| Ship width (cm) | 4.57 |
| HS code | 8538908080 |
| Country of Origin | MX |
Product Details:
- Special Features: Momentary
Product Variants
| Product | Model | Actuator Length | Operating Torque | Travel Length | Arm/operator Length | Actuator Style | Directional Movement | Actuator Location | Operating Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007A | Not Applicable | 4 lbs.-in. | 90° | - | Rotary Lever | CCW/CW | Side | 4 lbs.-in. | €126.42 | |
|
9007B | Not Applicable | 4 lbs.-in. | 90° | - | Rotary Lever | CCW/CW | Side | 4 lbs.-in. | €106.00 | |
|
9007C | Not Applicable | 3 lbs.-in. | 90° | - | Rotary Lever | CCW/CW | Side | 3 lbs.-in. | €189.45 | |
 |
9007D | 1 6/25" | 4 lbs.-in. | 1/4" | 1.24" | Push Roller Plunger | Linear | Top | 4 lbs.-in. | €177.48 | |
 |
9007E | 0.69" | 3 lbs.-in. | 1/4" | 0.69" | Plunger | Linear | Top | 3 lbs.-in. | €157.31 | |
 |
9007F | 1.16" | 4 lbs.-in. | 1/4" | 1.16" | Push Roller Plunger | Linear | Side | 4 lbs.-in. | €207.89 | |
 |
9007G | 0.69" | 4 lbs.-in. | 1/4" | 0.69" | Plunger | Linear | Side | 4 lbs.-in. | €165.04 |
