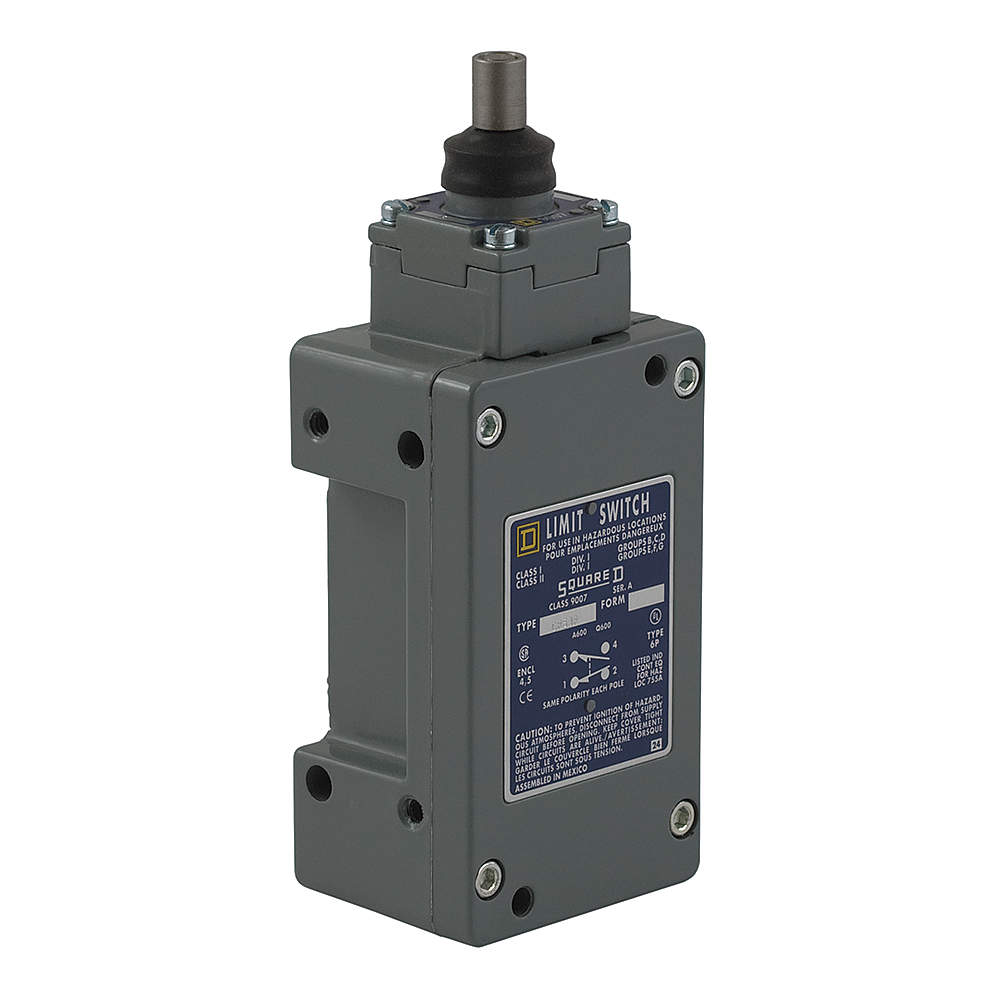

TELEMECANIQUE SENSORS 9007CR61R Heavy Duty Limit Switch Top Actuator 2no/2nc
Item: AF9JYAModel: 9007CR61RCross Ref: 2UYL8
7 In Stock
Ships within 2 days via
5.00% off
€799.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heavy Duty Limit Switch |
| Ac Contact Rating | 10A @ 600V |
| Actuator Length | 1.91" |
| Actuator Location | Top |
| Actuator Style | Plunger |
| Body Depth | 2.08" |
| Body Height | 4.25" |
| Body Material | Aluminum |
| Body Style | X |
| Body Width | 2.72" |
| Boot Sealed Actuator | No Boot Included |
| Certification | UL Class I Groups B, C, D And Class II Groups E, F, G |
| Compatible Actuator Type | Plunger |
| Contact Form | 2NO/2NC |
| Dc Contact Rating | 10A @ 600V |
| Depth | 2.08" |
| Directional Movement | Linear |
| Electrical Connection | Screw Clamp Terminals |
| Hazardous Location Specification | Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G |
| Height | 6.1" |
| Included Actuator | Actuator Not Included |
| Ip Rating | IP67 |
| Max. Operating Temp. | 185°F |
| Min. Operating Temp. | -20°F |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Mounting Style | Surface |
| Movement | Vertical |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 7, NEMA 9 |
| No. Of Mounting Holes | 2 |
| Operating Force | 7 lbs. |
| Operating Force-max.-new | 7 lbf. |
| Operating Temp. | 0°F to +185°F |
| Overall Depth | 2.08" |
| Overall Height | 7.21" |
| Overall Width | 2 18/25" |
| Pre-travel | 0.08" |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | 9007CR Series |
| Travel Length | 1/4" |
| Width | 2 18/25" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 6.45 |
| Ship length (cm) | 16.38 |
| Ship width (cm) | 2.54 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Variants
| Product | Model | Electrical Connection | Body Width | Actuator Style | Actuator Location | Operating Temp. | Movement | Operating Force | Boot Sealed Actuator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007CR53B2 | Screw Clamp Terminals | 2 18/25" | No Lever, Rotary Head | Side | -20°F to +185°F | CCW/CW | 4 lbs.-in. | No | €633.71 | |
 |
9007CR53D | Screw Clamp Terminals | 2.72" | Roller Plunger | Top | 0°F to +185°F | Horizontal | 4 lbs. | No Boot Included | €712.50 | |
 |
9007CR61B2 | Screw Clamp Terminals | 2 18/25" | No Lever, Rotary Head | Side | -20°F to +185°F | CCW/CW | 4 lbs.-in. | No | €684.22 | |
|
9007CR53C | Screw Clamp Terminals | 2.72" | No Lever, Rotary Head | Side | -20°F to +185°F | CW/Maintained | 3 lbs.-in. | No Boot Included | €656.95 | |
|
9007CR61C | Screw Clamp Terminals | 2.72" | No Lever, Rotary Head | Side | -20°F to +185°F | CW, Maintained | 3 lbs.-in. | No Boot Included | €705.21 | |
|
9007CR53N2 | Screw Terminal | - | No Lever, Rotary Head | Side | -20°F to +185°F | CW/CCW, Low Torque | - | - | €641.28 | |
 |
9007CR53F | Screw Clamp Terminals | 2.72" | Roller Plunger | Side | 0°F to +185°F | Vertical | 4 lbs. | No Boot Included | €711.80 |
