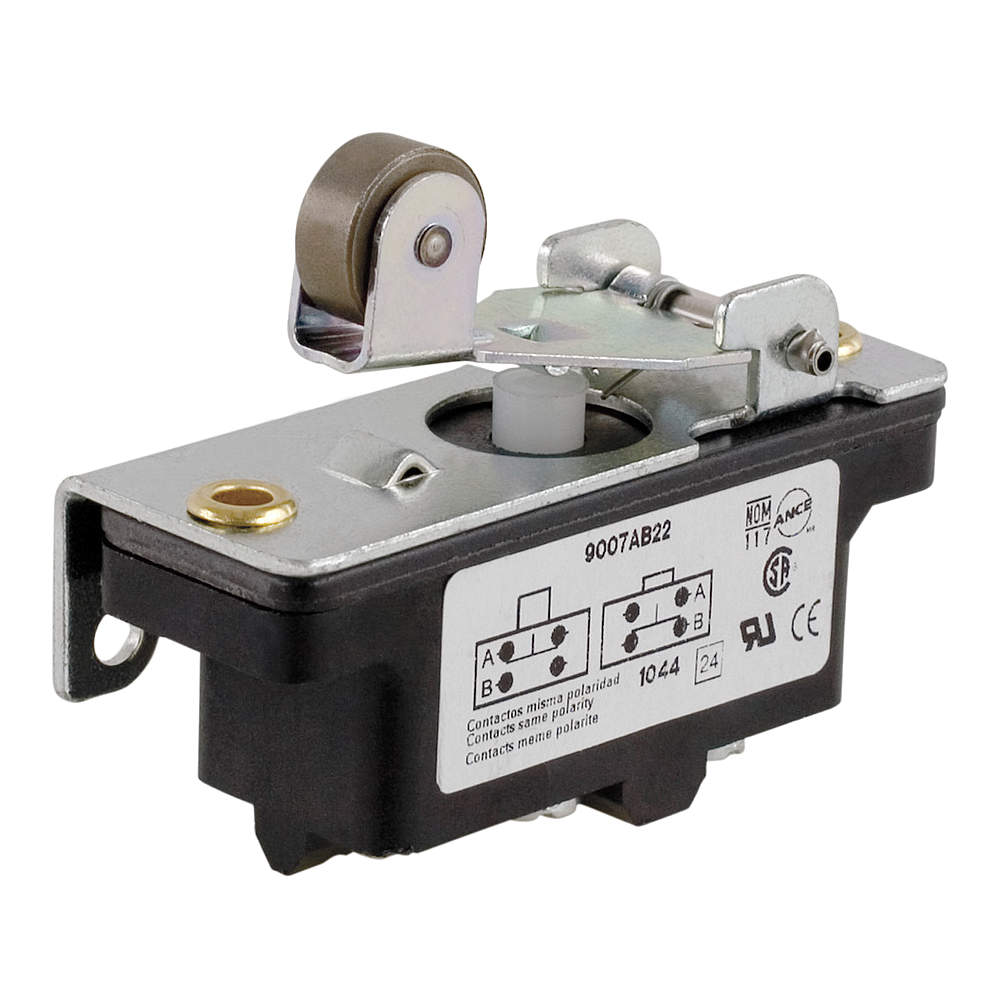

TELEMECANIQUE SENSORS 9007AB22 Heavy-Duty Switch, 1 NO / 1 NC, 15 A, 600 VAC, 1 Pole
Item: AG7EPRModel: 9007AB22Cross Ref: 6HHD3
7 In Stock
Ships within 2 days via
5.00% off
€166.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Industrial Snap Switch |
| Ac Contact Rating | 10A @ 240V, 15A @ 120V, 5A @ 600V, 6A @ 480V |
| Actuator Length | 1.65" |
| Actuator Style | Roller Lever |
| Actuator Type | Rigid Roller Lever |
| Amps | 15A |
| Body Depth | 2.44" |
| Body Height | 2.5" |
| Body Material | Cast Zinc |
| Body Width | 0.95" |
| Center Mounting Hole Distance | 2.1" |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 0.02A @ 600V, 0.2A @ 250V, 0.5A @ 125V |
| Depth | 1.03" |
| Differential Travel | 0.078" |
| Display Qty | 1 |
| Electrical Connection | Screw |
| Height | 0.828" |
| Length | 2 1/2" |
| Lever Actuator Length | 1.65" |
| Max. Differential Travel | 0.078" |
| Max. Operating Force | 8 ozf |
| Max. Operating Temp. | 185°F |
| Max. Pretravel | 4/25" |
| Min. Operating Temp. | -20°F |
| Operating Force | 8 oz. |
| Operating Temp. | -13°F to +185°F |
| Over Travel | 0.06" |
| Overall Depth | 2.44" |
| Overall Height | 2 1/2" |
| Overall Width | 0.95" |
| Pre-travel | 0.16" |
| Roller Dia. | 0.22" |
| Terminal Type | Screw |
| Voltage | 600V AC |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 4.32 |
| HS code | 8536509040 |
| Country of Origin | MX |
Product Details:
- Industrial-duty switch with a snap-action design to ensure quick-make or quick-break contact, independent of the speed of the handle, and hold the set positions even under vibrational loads
- Compact and modular construction equipped with a fully adjustable rotary actuator to indicate the ON / OFF status
- NEMA rated and IEC certified
Product Variants
| Product | Model | Max. Pretravel | Actuator Length | Depth | Roller Dia. | Lever Actuator Length | Actuator Type | Contact Form | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007AB21 | 0.156" | 2 1/2" | 1.1" | 0.22" | 2.5" | Rigid Roller Lever | 1NO/1NC | Screw | €126.00 | |
 |
9007AB23 | 4/25" | 1.65" | 1.03" | 1/2" | 1.65" | Rigid Roller Lever | 1NO/1NC | Screw | €127.90 | |
 |
9007AB41 | 4/25" | 1.65" | 1.03" | 0.22" | 1.65" | Rigid Roller Lever | 1NO/1NC | Screw | €142.03 |
