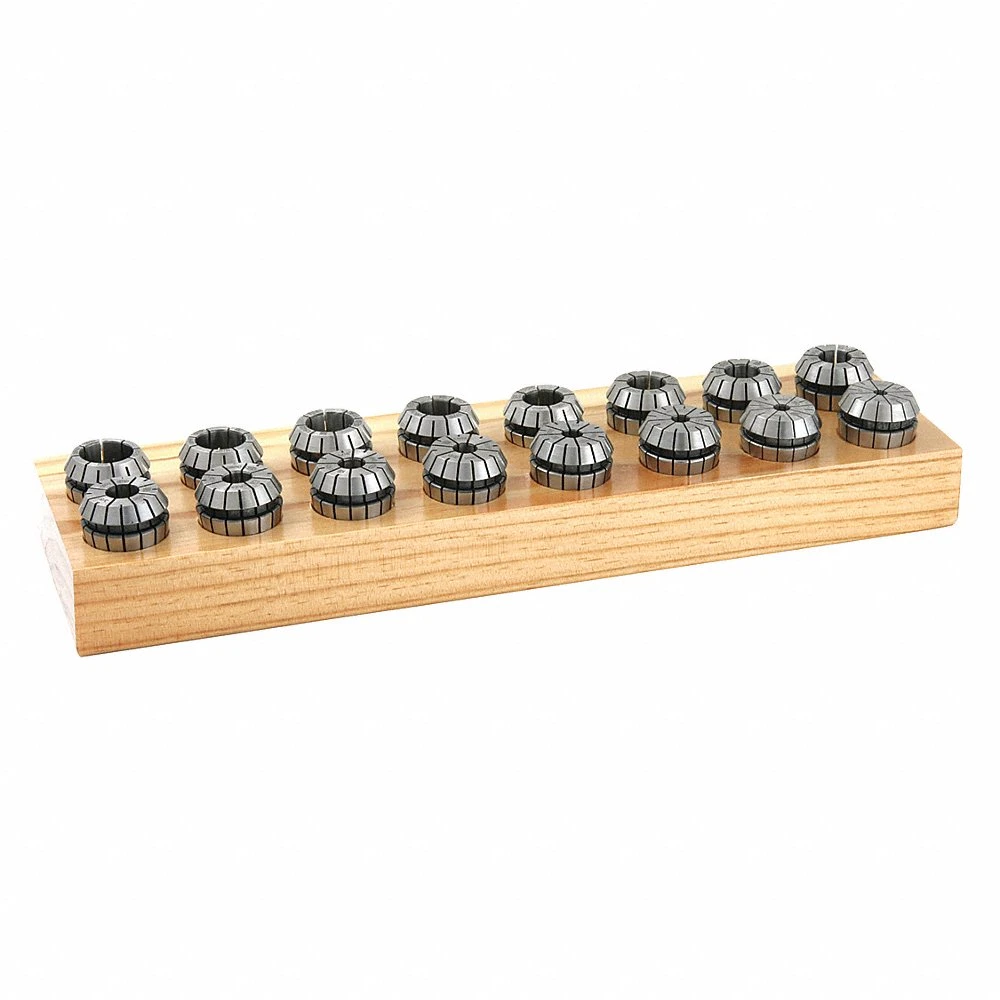

TECHNIKS 04206MS Collet Set, Round Face, 26 mm
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€853.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Collet Set |
| Collet Bore Shape | Round |
| Collet Series | Er40 |
| Collet Size Range | 4 mm to 26 mm |
| Collet Sizes Included | 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 11.5 mm, 12 mm, 13 mm, 13.5 mm, 14 mm, 15 mm, 16 mm, 17 mm, 17.5 mm, 18 mm, 18.5 mm, 19 mm, 20 mm, 21 mm, 22 mm, 23 mm, 24 mm, 25 mm, 26 mm |
| Collet Type | Standard |
| Face Shape | Round |
| Features | Quality And Accuracy |
| For Use With | Power Coat Nut |
| Head Dia. | 41 mm |
| Included Storage | Wooden Tray |
| Includes | Wooden Collet Tray |
| Material | High Speed Steel |
| Max Collet Size Included | 26 mm |
| Max. Size | 26 mm |
| Measurement System | Metric |
| Min Collet Size Included | 4 mm |
| Min. Size | 3 mm |
| Number Of Components | 23 |
| Number Of Pieces | 23 |
| Number Of Slots | 8 |
| Outside Diameter - Maximum | 1.61" |
| Overall Length | 46 mm |
| Size Increments | 1 mm |
| T.i.r. Tolerance | 0.0002" |
| Tir Max. | 0.0002" |
| Total Number Of Collets Included | 23 |
Shipping Info:
| Ship weight (kg) | 6.62 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Collet Type | Max. Size | Min. Size | Number Of Pieces | Overall Length | Size Increments | Head Dia. | Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

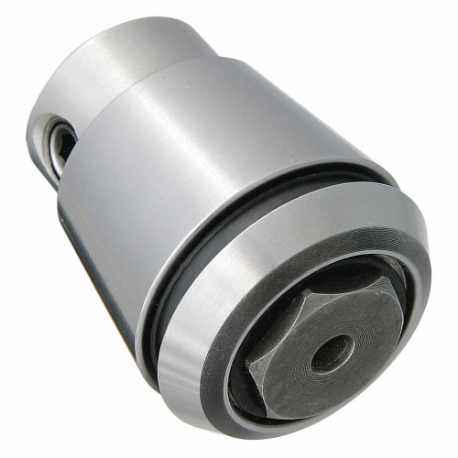

05916IS | FT-116 | 0.22" | 0.141" | 4 | - | 1/32" | - | - | 1 | €748.43 | |
|
05920IS | FT-120 | 0.255" | 0.141" | 5 | - | 1/32" | - | - | 1 | €936.13 | |
 |

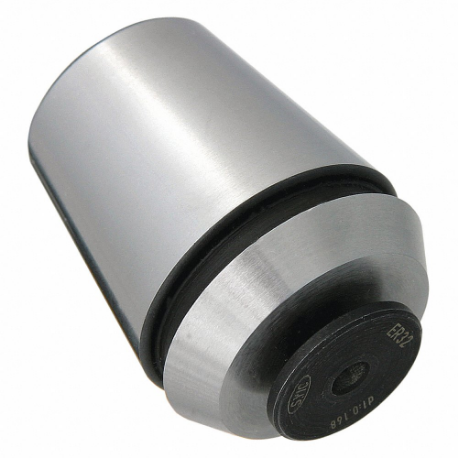

05802-4(SET) | ER16 | 0.255" | 0.168" | 4 | 1 2/25" | 1/32" | 0.67" | High Speed Steel | 1 | €271.55 | |
 |
05320-5(SET) | Rigid Tap | 0.255" | - | 5 | 1 2/25" | - | 0.67" | High Speed Steel | 1 | €396.82 | |
|
05925IS | FT-125 | 0.381" | 0.141" | 9 | - | - | - | - | 1 | €1,513.32 | |
|
05320-9(SET) | Rigid Tap | 0.381" | 0.141" | 9 | 1 2/25" | - | 0.67" | High Speed Steel | 1 | €667.33 | |
|
05410-9(SET) | Rigid Tap | 0.381" | 0.141" | 9 | - | - | 0.83" | High Speed Steel | 1 | €670.72 |
