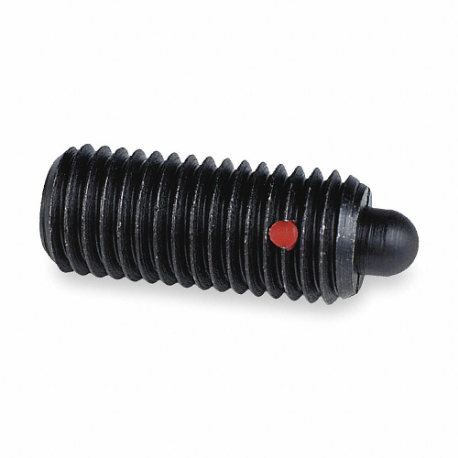

TE-CO 6370701 Spring Plunger, Black Oxide-Coated Steel Body, Stainless Steel Nose, M10X1.5 Thread Size
Item: CU6EFHModel: 6370701Cross Ref: 45RF01
7 In Stock
Ships within 2 days via
10.00% off
€82.42 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spring Plunger |
| Application | Indexing Stop Or Latch To Eject Parts In Fixtures Or Dies |
| Body Dia. | 0.394" |
| Body Finish | Black Oxide |
| Body Length | 22 mm |
| Body Material | Steel |
| Body Material Grade | Grade 12L14 |
| Construction | Steel |
| Final Nose Force | 7.8 lbf. |
| Force | Standard |
| Handle Type | Hex Socket Drive |
| Initial Nose Force | 2 lbf. |
| Material | Steel |
| Mounting Type | Hex Socket Drive |
| Nose Material | Stainless Steel |
| Overall Length | 25 mm |
| Plunger | Black Oxide, Case Hardened Steel |
| Plunger Finish | Black Oxide |
| Plunger Material | Steel |
| Plunger Material Grade | Grade 12L14 |
| Plunger Projection | 3 mm |
| Plunger Width | 4 mm |
| Projection | 0.118" |
| Retractable | No |
| Spring | Stainless Steel |
| Standards | Tcmai |
| System Of Measurement | Metric |
| Thread | Fully Threaded |
| Thread Length | 22 mm |
| Thread Size | M10 x 1.5 |
| Thread-locking Element | With Thread-Locking Element |
| Thread-locking Element Included | Yes |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Body Material | Thread Size | Thread-locking Element Included | Plunger Material | Body Length | Mounting Type | Projection | Initial Nose Force | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 63720X01 | Stainless Steel | M6 x 1 | No | Stainless Steel | 20 mm | Hex Socket Drive | 0.098" | 4 lbf. | 5 | €106.37 | |
| 63724X01 | Stainless Steel | M6 x 1 | No | Stainless Steel | 20 mm | Hex Socket Drive | 0.098" | 1.6 lbf. | 5 | €99.40 | |
| 63726X01 | Stainless Steel | M10 x 1.5 | No | Stainless Steel | 22 mm | Hex Socket Drive | 0.118" | 2 lbf. | 5 | €102.21 | |
| 63721X01 | Stainless Steel | M8 x 1.25 | No | Stainless Steel | 22 mm | Hex Socket Drive | 0.118" | 5.6 lbf. | 5 | €101.38 | |
| 63722X01 | Stainless Steel | M10 x 1.5 | No | Stainless Steel | 22 mm | Hex Socket Drive | 0.118" | 5.6 lbf. | 5 | €103.15 | |
| 63725X01 | Stainless Steel | M8 x 1.25 | No | Stainless Steel | 22 mm | Hex Socket Drive | 0.118" | 2 lbf. | 5 | €108.59 | |
| 63723X01 | Stainless Steel | M12 x 1.75 | No | Stainless Steel | 28 mm | Hex Socket Drive | 0.157" | 10 lbf. | 5 | €104.09 |
