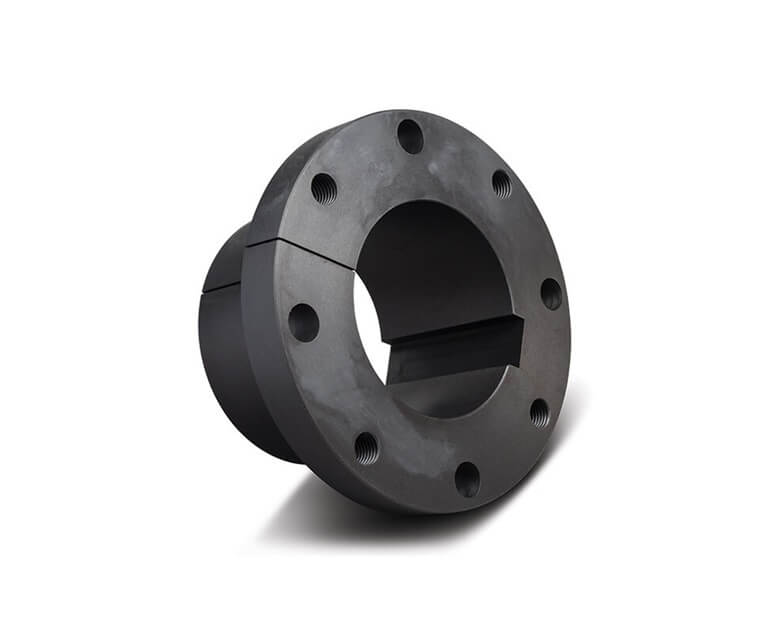

TB WOODS MS41516 QD Bushing, Ductile Iron, MS Size, 4.9375 inch Bore Dia., Shallow Keyway
Get it by Monday, Dec 22
€507.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 7 7/8" |
| Bore Size | 4 mm |
| Bore Type | Finished With Keyway |
| Bushing | Short |
| Coupling Size | MS |
| Dimension A | 1.19" |
| Dimension B | 6 1/2" |
| Dimension D | 9 1/8" |
| Dimension E | 3.63" |
| Dimension L | 4.81" |
| Hardware | Imperial Series |
| Key Size | 1 1/4" x 1/4" |
| Keyway | Shallow |
| Material | Ductile Cast Iron |
| Mounting Type | Conventional |
| Size | MS |
| Torque | 125000 lbs.-in. |
| Type | QD Bushing , Short , Standard |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Torque | Bore Dia. | Bolt Circle Dia. | Overall Length | Flange Thickness | Bushing | Mounting Type | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SD11116 | 5000 lbs.-in. | 1.688" | 2.688" | 1.813" | 7/16" | Standard | Conventional Or Reverse | 1 mm | €68.67 | |
|
SD11516 | 5000 lbs.-in. | - | 2.688" | 1.813" | 7/16" | Standard | Conventional Or Reverse | 1 mm | €68.67 | |
 |
SD1316 | - | 1.187" | 4.687" | 1.813" | 7/16" | - | - | - | €68.67 | |
|
SDS11116 | 5000 lbs.-in. | 1.688" | 2.688" | 1.313" | 7/16" | Standard | Conventional Or Reverse | 1 mm | €55.80 | |
|
SDS11516 | 5000 lbs.-in. | - | 2.688" | 1.313" | 7/16" | Standard | - | 1 mm | €55.80 | |
|
SDS178 | 5000 lbs.-in. | 1 7/8" | 2.688" | 1.313" | 7/16" | Standard | Conventional Or Reverse | 1 mm | €55.80 | |
 |
SDS58 | 5000 lbs.-in. | 5/8" | 2.688" | 1.313" | 7/16" | Standard | Conventional Or Reverse | 5/8" | €55.80 |
