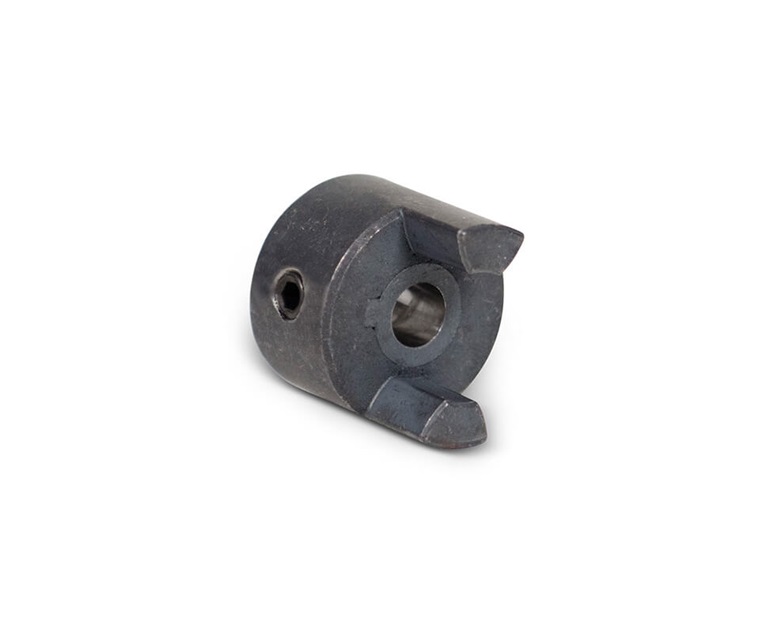

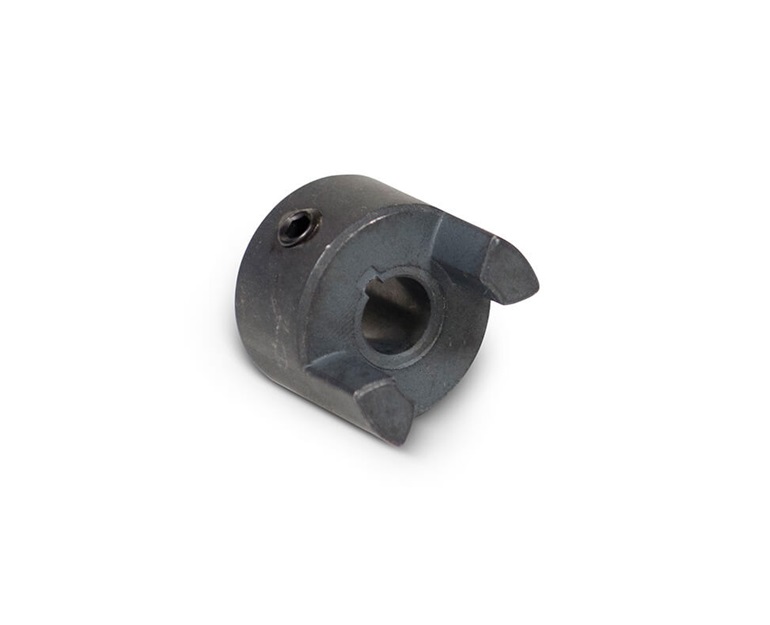

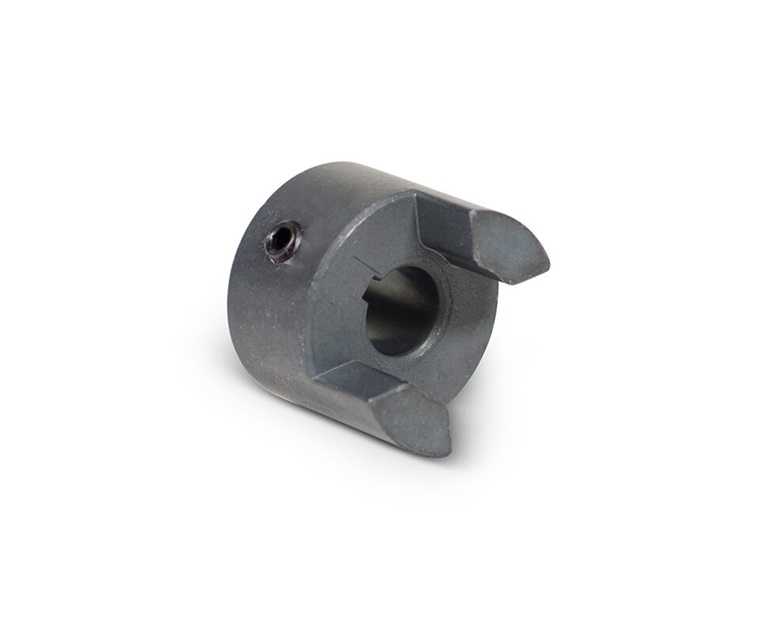

TB WOODS L0901 L-Jaw Hub, Sinter Carbon Steel, L090 Size, 1 inch Bore Dia., 2.11 inch Outer Dia.
Item: BG3BETModel: L0901
7 In Stock
Ships within 2 days via
€17.23 /unit
This product can only be shipped in multiples of 6Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jaw Coupling Hub |
| Bore Dia. | 1" |
| Bore Size | 1" |
| Bore Tolerance | +0.0005" to +0.0015" |
| Bore Type | Finished With Keyway |
| Center | 1/2" |
| Center Hole | 0.50" |
| Center Hole | 1/2" |
| Element Type | Jaw Coupling Hub |
| Hub Material | Sinter Carbon Steel |
| Jaw Type | Straight |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 0.81" |
| Max. Angular Misalignment | 0.015" |
| Max. Parallel Misalignment | 0.015" |
| Max. Speed | 9000 RPM |
| Outside Dia. | 2.11" |
| Overall Length | 2.13" |
| Product Type | L-Jaw Hub |
| Set Screw Thread Class | Class 2B |
| Set Screw Thread Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Setscrew | 1/4-20 UNC - 2B |
| Setscrew Length | 3/8" |
| Size | L090 |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 5.36 |
| Ship length (cm) | 5.41 |
| Ship width (cm) | 5.36 |
Product Variants
| Model | Max. Speed | Keyway Size | Max. Parallel Misalignment | Hub Material | Bore Dia. | Outside Dia. | For Shaft Type | Coupling Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AL05012NK | 18000 RPM | No Keyway | 0.015" | Aluminum | 1/2" | 1 2/25" | Round | L050 | €11.78 | |
| AL05014NK | 18000 RPM | No Keyway | 0.015" | Aluminum | 1/4" | 1 2/25" | Round | L050 | €11.78 | |
| AL05038NK | 18000 RPM | No Keyway | 0.015" | Aluminum | 3/8" | 1 2/25" | Round | L050 | €11.78 | |
| AL0505/16NK | 18000 RPM | No Keyway | 0.015" | Aluminum | 0.312" | 1 2/25" | Round | L050 | €11.78 | |
| AL05058NK | 18000 RPM | No Keyway | 0.015" | Aluminum | 5/8" | 1 2/25" | Round | L050 | €11.78 | |
| AL07012NK | 14000 RPM | No Keyway | 0.015" | Aluminum | 1/2" | 1 9/25" | Round | L070 | €17.78 | |
| AL07034 | 14000 RPM | 3/16" x 3/32" | 0.015" | Aluminum | 3/4" | 1 9/25" | - | - | €17.78 |
