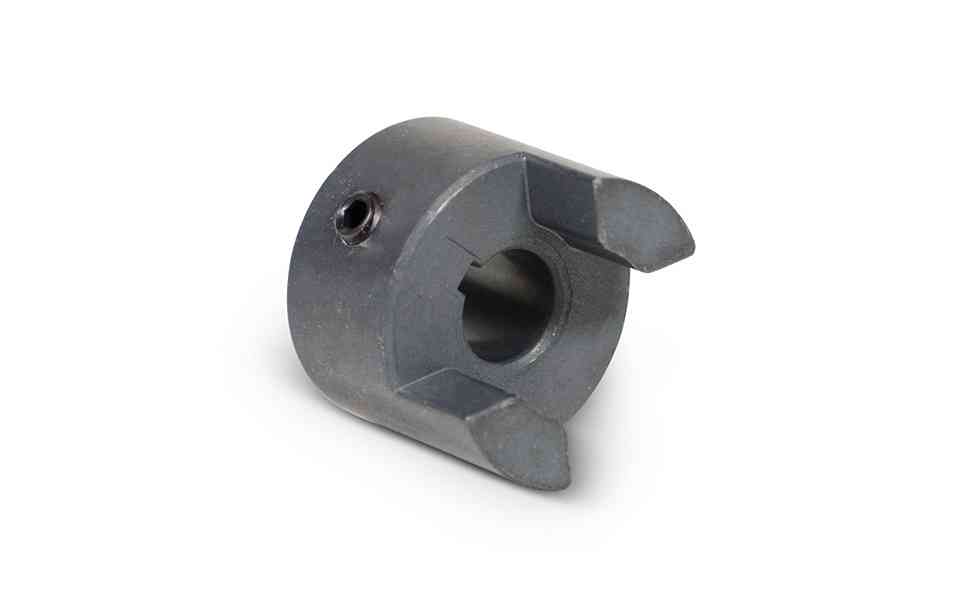

TB WOODS L07010MM Jaw Coupling Hub, L070 X 10Mm Size
Item: BB6JQHModel: L07010MMCross Ref: 1CXP6
7 In Stock
Ships within 2 days via
5.00% off
€13.42 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jaw Coupling Hub |
| Bore Dia. | 10 mm |
| Bore Tolerance | +0.013 mm to +0.028 mm |
| Bore Type | Round Bore With Keyway |
| Center Hole | 0.50" |
| Compatible Center Element Manufacturer Part No. | L070H, L070N, L070U |
| Coupling Overall Length | 50.8 mm |
| Coupling Size | L070 |
| For Shaft Type | Keyed |
| Hp @ 100 Speed | 0.069 hp Buna-N Spider, 0.1 hp Urethane Spider, 0.18 hp Hytrel Spider |
| Hub Dia. | 1 23/64" |
| Hub Material | Carbon Steel |
| Hub Projection | 19 mm |
| Included Screws | Set Screw |
| Jaw Profile | Straight |
| Key Way Size | 3 mm x 1.4 mm |
| Keyway Depth | 1.4 mm |
| Keyway Width | 3 mm |
| Length Through Bore | 19 mm |
| Max. Bore Dia. | 19 mm |
| Max. Operating Temp. | 121°C |
| Max. Speed | 14000 RPM |
| Min. Operating Temp. | -35°C |
| No. Of Locking Screws | 1 |
| Outside Dia. | 11 4/5" , 35 mm |
| Rated Torque For Spider Types | 114 lbs.-in. (Hytrel), 43 lbs.-in. (Buna-N), 65 lbs.-in. (Urethane) |
| Resistance Properties | Chemical Resistant, Oil Resistant |
| Screw Thread Size | 1/4"-20 UNC 2B |
| Shaft Locking Type | Set Screw |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 5 |
| Ship width (cm) | 3.51 |
Product Variants
| Product | Model | Length Through Bore | Coupling Size | Bore Dia. | Material | Bore Type | Hub Material | Key Way Size | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L190214 | 1.94" | - | 2 1/4" | - | Finished With Keyway And SS | - | - | Imperial Series | €143.95 | |
 |
L110178 | - | - | 1 7/8" | Steel | - | - | - | Imperial Series | €72.32 | |
 |
AL15034 | - | - | - | - | - | - | - | - | €39.43 | RFQ
|
|
53967 | - | - | - | - | - | - | - | - | €190.00 | |
|
AL09018 | - | - | - | - | - | - | - | - | €7.69 | RFQ
|
|
LC10034 | - | - | - | - | - | - | - | - | €39.95 | |
|
L07058B | - | - | - | - | - | - | - | - | €9.76 |
