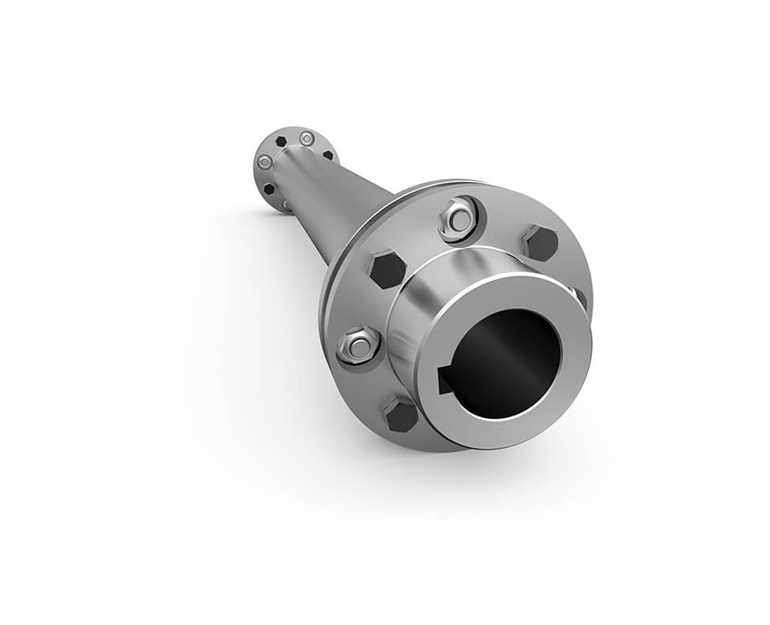

TB WOODS G5540 G5 Form Flex Coupling, 540 Size, 4000000 lbs.-in. Torque, 1450 rpm
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flexible Coupling |
| Angular Misalignment | 0.33° |
| Dimension A | 33 1/2" |
| Dimension F | 15" |
| Dimension G | 2.58" |
| Free End Float | 6/25" |
| Hp Rating @ 100 Rpm | 6347 hp |
| Inertia | Consult lbs./sq.-ft. |
| Inertia At D Min. | Consult lbs.-Sq. ft. |
| Max. Bore | 15 3/4" |
| Max. Rpm | 1450 RPM |
| Rated Torque | 4000000 lbs.-in. |
| Size | 540 |
| Standard Hub Dimension | 22.63" |
Product Variants
| Model | Hp Rating @ 100 Rpm | Angular Misalignment | Free End Float | Max. Rpm | Max. Bore | Dimension F | Standard Hub Dimension | Inertia At D Min. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| G5311 | 17 hp | 0.5° | 0.028" | 5400 RPM | 3 1/8" | 2 1/2" | 3.91" | 86.75 lbs.-sq. ft. | - | RFQ
|
| G5321 | 33 hp | 0.5° | 0.029" | 4900 RPM | - | 3" | 4 1/4" | 148.2 lbs.-sq. ft. | - | RFQ
|
| G5332 | 51 hp | 0.5° | 0.03" | 4400 RPM | 3.188" | 3 1/2" | 4 1/2" | 271.2 lbs.-sq. ft. | - | RFQ
|
| G5346 | 73 hp | 0.5° | 0.05" | 4100 RPM | 3 3/4" | 3 3/4" | 5.42" | 568.7 lbs.-sq. ft. | - | RFQ
|
| G5380 | 127 hp | 0.5° | 2/25" | 3800 RPM | 3 3/4" | 4.13" | 5.65" | 944.6 lbs.-sq. ft. | - | RFQ
|
| G5412 | 190 hp | 0.33° | 2/25" | 3500 RPM | 4 1/2" | 4 1/4" | 6.51" | 1972.6 lbs.-sq. ft. | - | RFQ
|
| G5419 | 301 hp | 0.33° | 0.1" | 3000 RPM | 4 1/2" | 5" | 7 8/25" | 4137 lbs.-sq. ft. | - | RFQ
|
