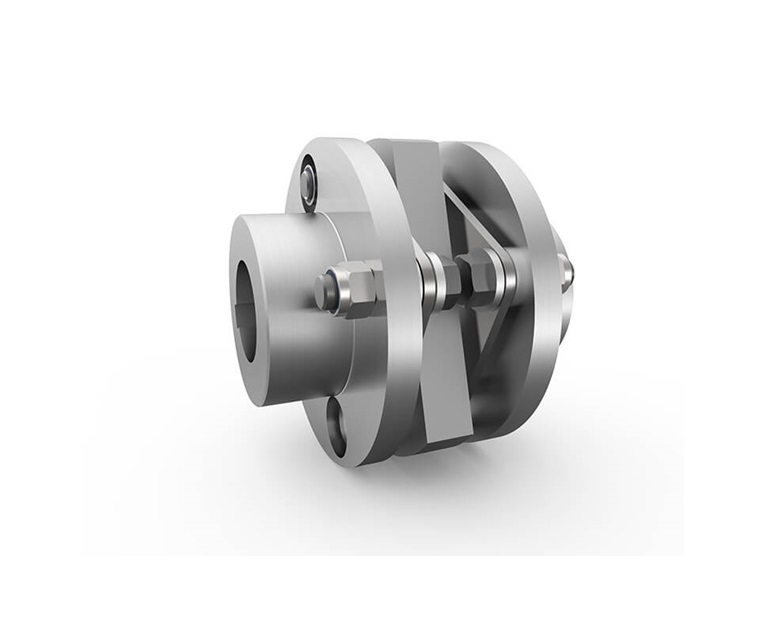

TB WOODS AY5 AY Form Flex Coupling, 5 Size, 300 lbs.in. Torque, 8500 rpm
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flexible Coupling |
| Angular Misalignment | 1° |
| Dimension A | 2.65" |
| Dimension B | 2.85" |
| Dimension G | 6/25" |
| Dimension H | 1.3" |
| Free End Float | 0.03" |
| Hp Rating @ 100 Rpm | 12/25 hp |
| Hp Rating @ 100 Rpm | 0.48 hp |
| Max. Bore | 22/25" |
| Max. Rpm | 8500 RPM |
| Product Type | AY |
| Rated Torque | 300 lbs.in. |
| Size | 5 |
Product Variants
| Model | Max. Bore | Hp Rating @ 100 Rpm | Free End Float | Max. Rpm | Dimension G | Dimension B | Size | Dimension H | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AY10 | 1 1/4" | 1 27/100 hp | 1/25" | 7500 RPM | 0.27" | 2.91" | 10 | 1 4/5" | - | RFQ
|
| AY15 | 1 3/4" | 2 1/2 hp | 0.042" | 6700 RPM | 8/25" | 3.33" | 15 | 2" | - | RFQ
|
| AY20 | 1.69" | 3 49/100 hp | 0.055" | 6200 RPM | 0.34" | 3 19/25" | 20 | 2 2/5" | - | RFQ
|
| AY25 | 2" | 6 3/100 hp | 0.06" | 5500 RPM | 0.45" | 4.77" | 25 | - | - | RFQ
|
