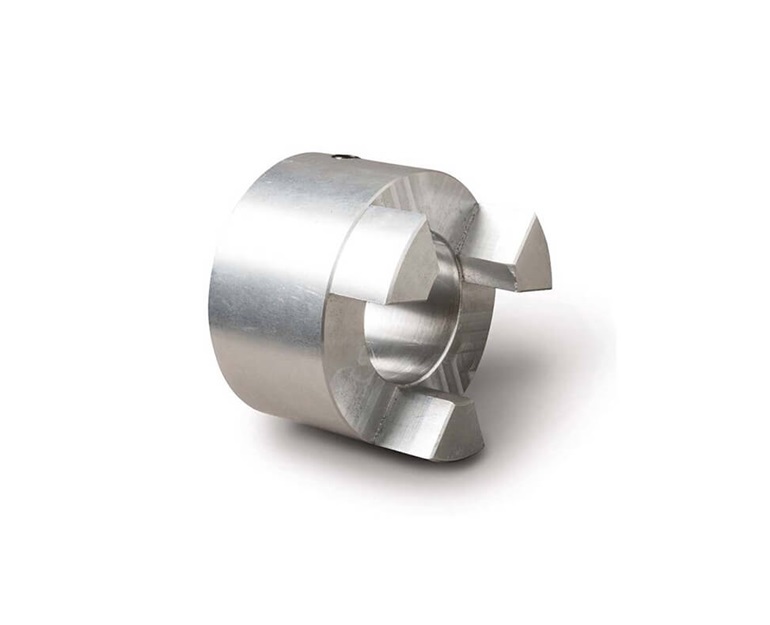

TB WOODS AL09012NK L-Jaw Hub, Aluminium, AL090 Size, 0.5 inch Bore Dia., 2.11 inch Outer Dia.
Item: BB4RDVModel: AL09012NKCross Ref: 3KX98
7 In Stock
Ships within 2 days via
10.00% off
€27.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jaw Coupling Hub |
| Bore Dia. | 1/2" |
| Bore Size | 1/2" |
| Bore Tolerance | +0.0005" to +0.0015" |
| Bore Type | Round Bore |
| Center | 1/2" |
| Center Hole | 1/2" |
| Center Hole | 0.50" |
| Compatible Center Element Manufacturer Part No. | L090H, L090N, L090U |
| Coupling Overall Length | 2 1/8" |
| Coupling Size | L090 |
| Element Type | Jaw Coupling Hub |
| For Shaft Type | Round |
| Horsepower @ 100 Rpm | 0.23 hp Buna-N Spider, 0.35 hp Urethane Spider, 0.64 hp Hytrel Spider |
| Hub Diameter | 2 7/64" |
| Hub Material | Aluminum |
| Hub Projection | 13/16" |
| Included Screws | Set Screw |
| Jaw Profile | Straight |
| Jaw Type | Straight |
| Keyway Size | No Keyway |
| Keyway Type | No Keyway |
| Length Through Bore | 0.8" |
| Max. Parallel Misalignment | 0.015" |
| Max. Speed | 9000 RPM |
| Maximum Bore Diameter | 1" |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -31°F |
| Number Of Locking Screws | 1 |
| Outside Dia. | 2.11" |
| Outside Diameter | 2 7/64" |
| Overall Length | 2.13" |
| Rated Torque For Spider Types | 144 lbs.-in. (Buna-N), 216 lbs.-in. (Urethane), 401 lbs.-in. (Hytrel) |
| Resistance Properties | Chemical Resistant, Oil Resistant |
| Screw Thread Size | 1/4"-20 NC |
| Set Screw Thread Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Setscrew | 1/4-20NC |
| Setscrew Length | 3/8" |
| Shaft Locking Type | Set Screw |
| Standards | Iso Certified |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.36 |
| Ship length (cm) | 5.54 |
| Ship width (cm) | 5.36 |
Product Variants
| Product | Model | Max. Speed | Keyway Size | Max. Parallel Misalignment | Hub Material | Bore Dia. | Outside Dia. | For Shaft Type | Coupling Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L05038NK | 18000 RPM | No Keyway | 0.015" | Carbon Steel | 3/8" | 1 2/25" | Round | L050 | €9.01 | |
 |
L05012 | 18000 RPM | 1/8" x 1/16" | 0.015" | Sinter Carbon Steel | 1/2" | 1 2/25" | - | - | €6.29 | |
 |
L07012 | 14000 RPM | 1/8" x 1/16" | 0.015" | Sinter Carbon Steel | - | 1 9/25" | - | - | €9.76 | |
 |
L07014NK | 14000 RPM | No Keyway | 0.015" | Sinter Carbon Steel | 1/4" | 1 9/25" | - | - | €10.43 | |
|
L0707/16NK | 14000 RPM | No Keyway | 0.015" | Sinter Carbon Steel | 0.438" | 1 9/25" | - | - | €15.04 | |
|
L0705/16NK | 14000 RPM | No Keyway | 0.015" | Sinter Carbon Steel | 0.312" | 1 9/25" | - | - | €10.43 | |
|
L07012NK | 14000 RPM | No Keyway | 0.015" | Carbon Steel | 1/2" | 1 9/25" | Round | L070 | €15.08 |
