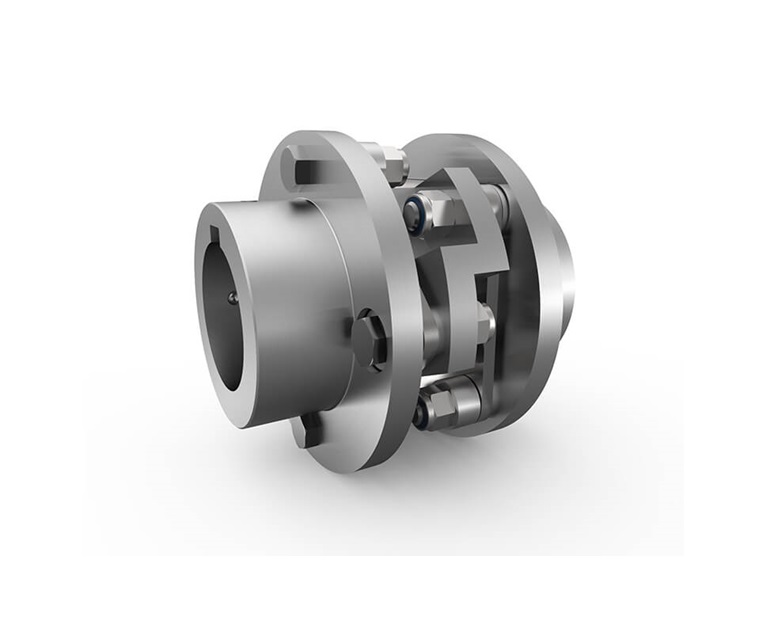

TB WOODS AA5 AA Form Flex Coupling, 5 Size, 300 lbs.in. Torque, 3600 rpm
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flexible Coupling |
| Angular Misalignment | 1° |
| Dimension A | 2.65" |
| Dimension B | 3.23" |
| Dimension G | 6/25" |
| Dimension H | 1.3" |
| Dimension J | 0.54" |
| Free End Float | 0.03" |
| Hp Rating @ 100 Rpm | 12/25 hp |
| Hp Rating @ 100 Rpm | 0.48 hp |
| Max. Angular Misalignment | 1° |
| Max. Bore | 22/25" |
| Max. Output Torque | 450 lb-in |
| Max. Rpm | 3600 RPM |
| Product Type | AA Alkaline |
| Rated Torque | 300 lbs.in. |
| Size | 5 |
Product Variants
| Model | Max. Bore | Hp Rating @ 100 Rpm | Free End Float | Max. Rpm | Dimension G | Dimension B | Dimension H | Dimension J | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AA10 | 1 1/4" | 1 27/100 hp | 1/25" | 3500 RPM | 0.27" | 3.73" | 1.3" | 14/25" | - | RFQ
|
| AA15 | 1 3/4" | 2 1/2 hp | 0.042" | 3450 RPM | 8/25" | 3.82" | 2" | 22/25" | - | RFQ
|
| AA20 | 1.69" | 3 49/100 hp | 0.055" | 3350 RPM | 0.34" | 4.38" | 2 2/5" | 0.79" | - | RFQ
|
| AA25 | 2" | 6 3/100 hp | 0.06" | 3200 RPM | 0.45" | 5.26" | 2 4/5" | 1" | - | RFQ
|
| AA30 | 2.38" | 11 hp | 0.065" | 3000 RPM | 0.47" | 6 6/25" | 3.3" | 1.14" | - | RFQ
|
| AA35 | 3 3/4" | 18 hp | 0.085" | 2800 RPM | 0.55" | 6.91" | 4.15" | 0.97" | - | RFQ
|
