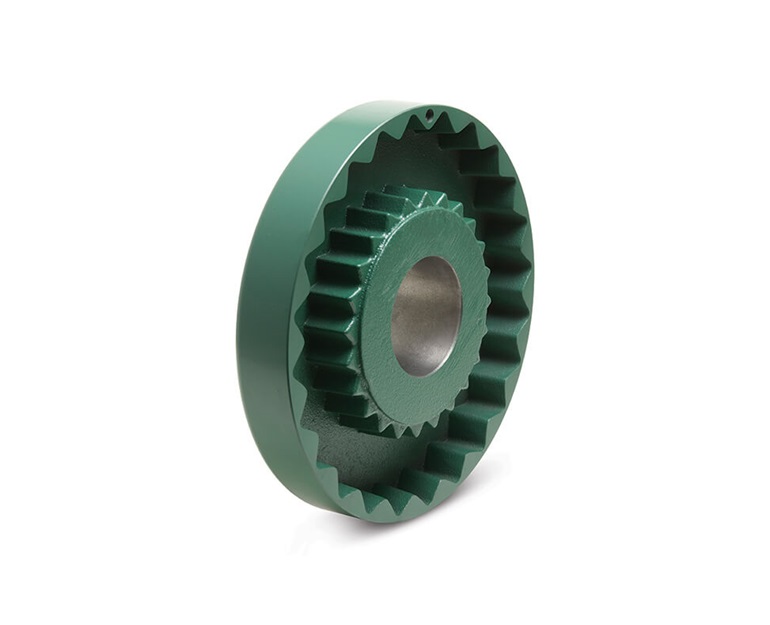

TB WOODS 9SC44 Sure-Flex Type SC Spacer Flange, High Strength Cast Iron, 9 Size
Item: AG3DWHModel: 9SC44Cross Ref: 32ZT36
7 In Stock
Ships within 2 days via
10.00% off
€266.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange |
| Application | Compressors, Conveyors, Motors, Pumps |
| Body Style | Type SC Spacer Flange |
| Bushing Required | None |
| Coupling Size | 9 |
| Distance Between Shafts | 4 3/8" |
| Features | 4-Way Flexing Action Absorbs Shock, Misalignment And End Float, Vibration |
| Flange Length | 1.03125" |
| Flange Length | 1.031" |
| For Misalignment Type | Angular, Parallel |
| Hub | Spacer Flange |
| Hub Body Length | 7/16" |
| Hub Dia. | 3 5/8" |
| Hub Diameter | 3 5/8" |
| Hub Length | 0.438" |
| Hub Material | Cast Iron |
| Ideal For | Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors |
| Included Screws | (4) Cap Screws |
| Keyseat Size (in.) | None |
| Length Through Bore | 2 1/16" |
| Material | High Strength Cast Iron |
| Max. Angular Gap Misalignment | 0.109" |
| Max. Angular Misalignment | 1° |
| Max. Parallel Misalignment | 1/40" |
| Max. Speed | 3750 RPM |
| Outside Dia. | 6.35" |
| Outside Diameter | 6 11/32" |
| Rated Torque | 2340 lbs.-in. |
| Resistance Properties | Chemical Resistant, Oil Resistant |
| Sf Hub Length | 0.438" |
| System Of Measurement | Imperial |
| Width | 568954" |
Shipping Info:
| Ship weight (kg) | 2.66 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 16.76 |
| Ship width (cm) | 16.76 |
| HS code | 8483608000 |
| Country of Origin | MX |
Product Variants
| Model | Outside Dia. | Max. Speed | Coupling Size | Sf Hub Length | Max. Parallel Misalignment | Distance Between Shafts | Flange Length | Max. Angular Gap Misalignment | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9SC35 | 6.35" | 3750 RPM | 9 | 0.062" | 0.025" | 3 1/2" | 1.031" | 0.109" | €237.11 | |
| 9SC50 | 6.35" | 3750 RPM | 9 | 1 1/4" | 0.025" | 5" | 1.031" | 0.109" | €379.51 | |
| 9SC5011 | 6.35" | 3750 RPM | 9 | 1 1/4" | 1/40" | 5" | 1.031" | 0.109" | €415.33 | |
| 9SC7011 | 6.35" | 3750 RPM | 9 | 1 3/4" | 0.025" | 7" | 1.031" | 0.109" | €418.57 | |

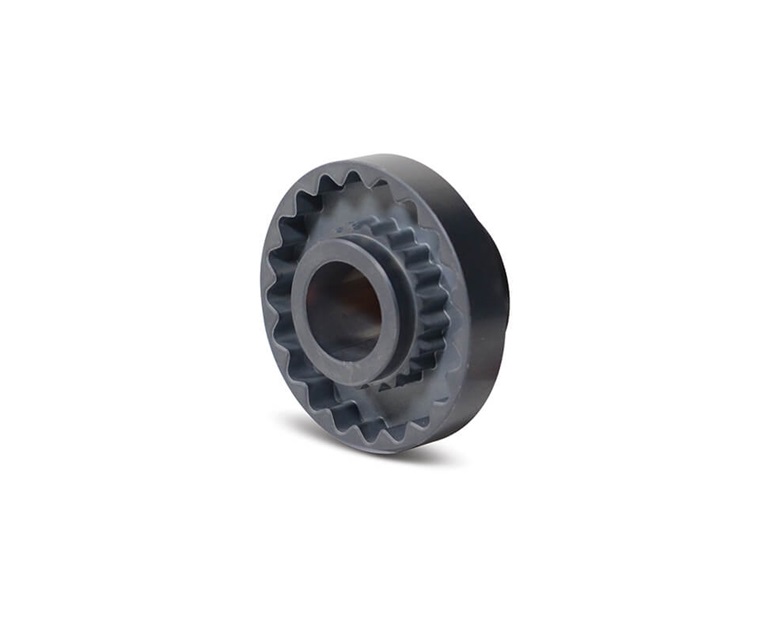

| 5SC35 | 3 1/4" | 7600 RPM | 5 | 0.797" | 0.015" | 3 1/2" | 0.594" | 0.056" | €93.68 | |
| 6SC35 | 4" | 6000 RPM | 6 | 0.594" | 0.015" | 3 1/2" | 0.719" | 0.07" | €115.40 | |
| 6SC44 | 4" | 6000 RPM | 6 | 1.031" | 0.015" | 4 3/8" | 0.719" | 0.07" | €148.20 |
