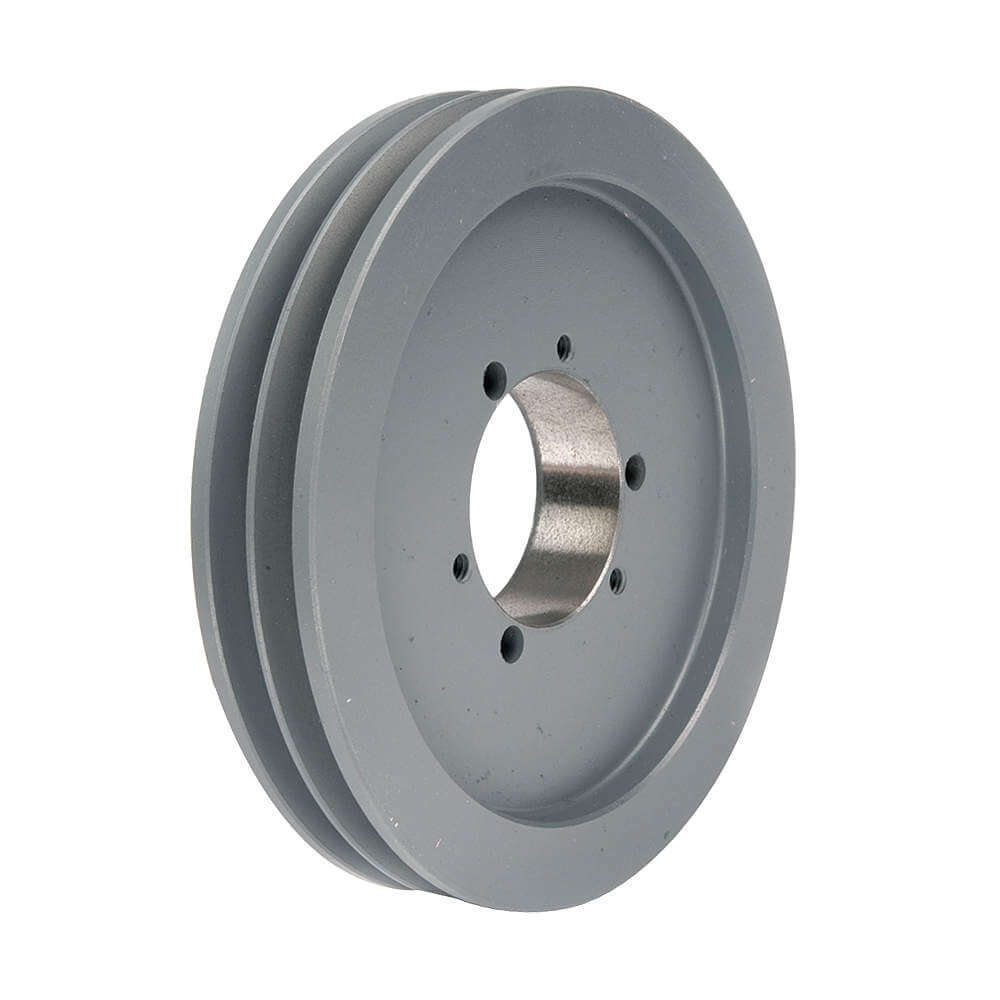

TB WOODS 902B V-belt Pulley Detachable 2 Groove 9.35 Od | AF2HTU 6UDR6

TB WOODS 902B V-belt Pulley Detachable 2 Groove 9.35 Od

Item: AF2HTUModel: 902BCross Ref: 6UDR6
Check Availability
In Stock

Get it by Tuesday, Dec 23

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€211.61
10.00% off
€190.46 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item V-Belt Pulley
4l Pitch Diameter 8.6"
4l, A, Or Ax Belt Pitch Dia. 8.6"
4la Or A Belt Pitch Dia. 8.6"
5l Pitch Diameter 9"
5l, B, Or Bx Belt Pitch Dia. 9"
A Pitch Diameter 8.6"
Ax Pitch Diameter 8.6"
B Pitch Diameter 9"
Bore Type Bushed
Bushing Required SK
Bx Pitch Diameter 9"
Construction Arm
Face Width 1.75"
For Belt Section 4L, 5L, A, Ax, B, Bx
For Bushing Size SK
For Bushing Type Quick Detachable
For V-belt Type Classical, Cogged, Banded
Industry Number 902B
Length Through Bore 1 7/8"
Material Cast Iron
Material Fabrication Cast
No. Of Grooves 2
Outside Dia. 9.35"
Pitch Dia. 8.6" (4L, A), 9" (5L, B)
Pulley Construction Spoked
Pulley Industry Number B90
Pulley Series Series A-B Combination
Set Screw Included No
Weight 13.4 lbs.

Shipping Info:

Ship weight (kg) 6.03
Ship height (cm)4.83
Ship length (cm)26.42
Ship width (cm)26.16
HS code8483509040
Country of OriginUS

Product Details:

TB Wood's 902B V-belt pulley transfers mechanical rotating power to the shaft of pumps, fans, conveyors and air compressors.

Features:

  • It features V-shaped grooves that prevent slippage & misalignment and offers maximum torque & friction in a drive system.
  • This V-belt pulley is made of cast iron for excellent compression strength.
  • It can run at a maximum speed of 2680 rpm.

Frequently Asked Questions:

Q. What types of V-belts can be used with this V-belt pulley?

A. This V-belt pulley can be used with banded or single V-belts having either cogged or wrapped construction.

Q. What type of bore is used in TB Wood's 902B V-belt pulley?

A. This V-belt pulley features a quick detachable bushed bore to reduce slippage.

Q. How far should a V belt sit in a pulley?

A. V-belts may ride out up to 0.2 inches and should ride at least flush with the top of the pulley.

Product Variants

ProductModelBore TypeIndustry Number4l, A, Or Ax Belt Pitch Dia.For Belt SectionOutside Dia.For Bushing Size5l, B, Or Bx Belt Pitch Dia.ConstructionPrice
TB WOODS 904B V-belt Pulley Detachable 4 Groove 9.35 Od | AA2PXH 10Y297 904BBushed904B8.6"4L, 5L, A, Ax, B, Bx9.35"SK9"Web€360.11
TB WOODS 2342B V-belt Pulley Detachable 2groove 23.75 Od | AC7WHU 38X840 2342BBushed6301723"4L, 5L, A, Ax, B, Bx-SF23.4"Arm€2,055.30
TB WOODS AK10478 V-belt Pulley 7/8 Fixd 10.25 Outer Diameter Cast Iron | AE6FJN 5RHX4 AK104X7/8Fixed BoreAK1047810"3L, 4L, A, Ax---Arm€155.62
TB WOODS AK11478 V-belt Pulley 7/8 Fixd 11.25 Outer Diameter Cast Iron | AE6FJR 5RHX7 AK114X7/8Fixed BoreAK1147811"3L, 4L, A, Ax11 1/4"--Arm€205.78
TB WOODS AK12478 V-belt Pulley 7/8 Fixd 12.25 Outer Diameter Cast Iron | AE6FJU 5RHX9 AK124X7/8Fixed BoreAK1247812"----Arm€155.42
TB WOODS AK14478 V-belt Pulley 7/8 Fixd 14.25 Outer Diameter Cast Iron | AE6FJX 5RHY2 AK144X7/8Fixed BoreAK1447814"3L, 4L, A, Ax14 1/4"--Arm€211.49
TB WOODS AK7478 V-belt Pulley 7/8 Fixed 7.25 Outer Diameter Cast Iron | AE6FML 5RJF1 AK74X7/8Fixed BoreAK74787"3L, 4L, A, Ax7 1/4"--Arm€90.94
