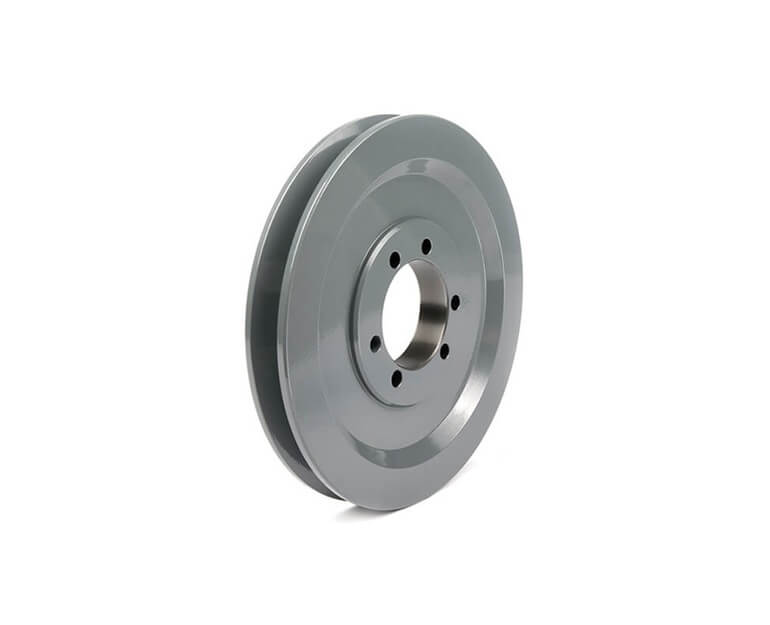

TB WOODS 741B Classical V-Belt Sheave, Cast Iron, B Type Belt, 7.4 inch Datum Dia.
Item: AE7HRCModel: 741BCross Ref: 5YKK6
7 In Stock
B
7.4"
Ships within 2 days via
10.00% off
€158.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| 4l Pitch Diameter | 7" |
| 4l, A, Or Ax Belt Pitch Dia. | 7" |
| 4la Or A Belt Pitch Dia. | 7" |
| 5l Pitch Diameter | 7.4" |
| 5l, B, Or Bx Belt Pitch Dia. | 7.4" |
| A Pitch Diameter | 7" |
| Ax Pitch Diameter | 7" |
| B Pitch Diameter | 7 2/5" |
| Belt Type | B |
| Bore Type | Bushed |
| Bushing | SDS |
| Bushing Required | SDS |
| Bx Pitch Diameter | 7.4" |
| Construction | Web |
| Datum Dia. | 7 2/5" |
| Dimension E | 1/2" |
| Dimension L | 1.31" |
| Dimension M | 0.19" |
| Face Width | 1" |
| For Belt Section | 4L, 5L, A, Ax, B, Bx |
| For Bushing Size | SDS |
| For Bushing Type | Quick Detachable |
| For V-belt Type | Classical, Cogged |
| Hub Location | 0.13" |
| Industry Number | 741B |
| Inside Dia. | 6" |
| Length Through Bore | 1 5/16" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Max. Rpm | 3230 RPM |
| No. Of Grooves | 1 |
| Outside Dia. | 7 3/4" |
| Outside Diameter | 7.75" |
| Overall Length | 1 1/2" |
| Overall Width | 1 5/8" |
| Pitch Dia. | 7" (4L, A), 7.4" (5L, B) |
| Product Type | Classical |
| Pulley Construction | Webbed |
| Pulley Industry Number | B74 |
| Pulley Series | Series A-B Combination |
| Set Screw Included | No |
Shipping Info:
| Ship weight (kg) | 3.11 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 20.57 |
| Ship width (cm) | 19.81 |
| HS code | 8483509040 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Type | Industry Number | For Belt Section | For Bushing Size | 4l, A, Or Ax Belt Pitch Dia. | 5l, B, Or Bx Belt Pitch Dia. | C Or Cx Belt Pitch Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1104B | 11.35" | Bushed | 1104B | 4L, 5L, A, Ax, B, Bx | SK | 10.6" | 11" | - | €417.78 | |
|
1364B | 13.95" | Bushed | 1364B | 4L, 5L, A, Ax, B, Bx | SK | 13.2" | 13.6" | - | €461.18 | |
 |
1603B | 16.35" | Bushed | 1603B | 4L, 5L, A, Ax, B, Bx | SK | 15.6" | 16" | - | €448.27 | |
|
1604B | 16.35" | Bushed | 1604B | 4L, 5L, A, Ax, B, Bx | SF | 15.6" | 16" | - | €603.81 | |
|
1844B | 18 3/4" | Bushed | 1844B | 4L, 5L, A, Ax, B, Bx | SF | 18" | 18.4" | - | €591.02 | |
 |
2501B | 25.35" | Bushed | 2501B | 4L, 5L, A, Ax, B, Bx | SF | 24.6" | 25" | - | €782.20 | |
 |
424B | 4.55" | Bushed | 424B | 4L, 5L, A, Ax, B, Bx | SD | 3.8" | 4.2" | - | €198.66 |
