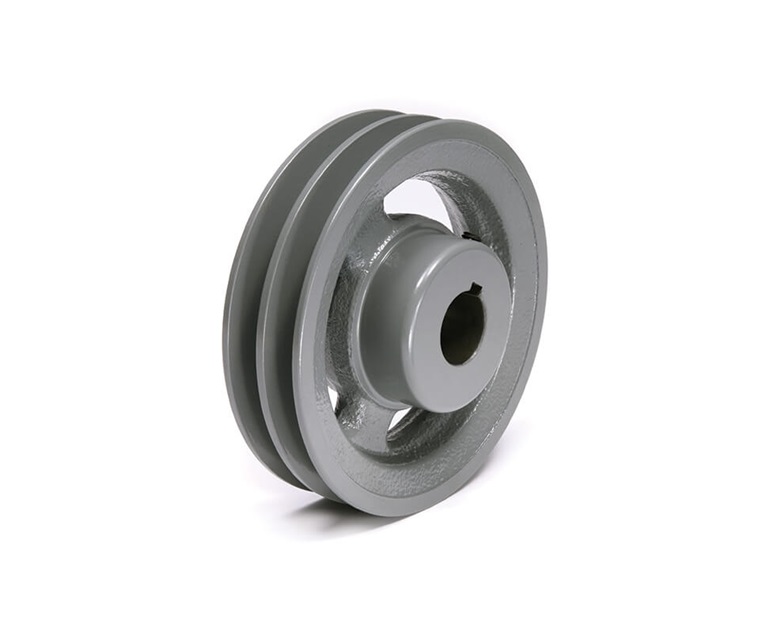

TB WOODS 2BK671 FHPBoredtosize V-Belt Sheave, Cast Iron, 4L Type Belt, 2.25 inch Hub Dia.
Item: BA2HGYModel: 2BK671
7 In Stock
6.51"
Ships within 2 days via
€227.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Type | 4L |
| Bore Type | Finished With Keyway |
| Bore-to-size Bore Dia. | 1" |
| Datum Dia. | 6.1" |
| Dimension E | 0.47" |
| Dimension L | 1.47" |
| Face Width | 1 3/4" |
| Hub Dia. | 2 1/4" |
| Hub Projection | -0.47" |
| Hub Projection (in.) | -0.47" |
| Material | Cast Iron |
| Max. Rpm | 3880 RPM |
| No. Of Grooves | 2 |
| Outside Dia. | 6.45" |
| Overall Length | 2.219" |
| Pitch Dia. | 6.51" |
| Product Type | FHP Bored to Size |
| Rpm High | 3880 rpm |
Shipping Info:
| Ship weight (kg) | 2.43 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16.38 |
| Ship width (cm) | 16.38 |
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | For Belt Section | 4l, A, Or Ax Belt Pitch Dia. | Industry Number | 5l, B, Or Bx Belt Pitch Dia. | Max. Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AK3212 | Fixed | 3 1/4" | 1/2" | 3L, 4L, A, Ax | 3" | AK3212 | - | 7700 RPM | €33.70 | |
 |
AK3258 | Fixed | 3 1/4" | 5/8" | 3L, 4L, A, Ax | 3" | AK3258 | - | 7700 RPM | €33.70 | |
|
AK3234 | Fixed | 3 1/4" | 3/4" | 3L, 4L, A, Ax | 3" | AK3234 | - | 7700 RPM | €33.70 | |
|
AK32X7/8 | Fixed | 3 1/4" | - | 3L, 4L, A, Ax | 3" | AK3278 | - | 7700 RPM | €39.79 | |
|
AK321 | Fixed | 3 1/4" | 1" | 3L, 4L, A, Ax | 3" | AK321 | - | 7700 RPM | €33.70 | |
 |
AK1041 | Fixed | - | 1" | 3L, 4L, A, Ax | 10" | AK1041 | - | 2440 RPM | €132.62 | |
|
AK10434 | Fixed | - | 3/4" | 3L, 4L, A, Ax | 10" | AK10434 | - | 2440 RPM | €132.62 |
