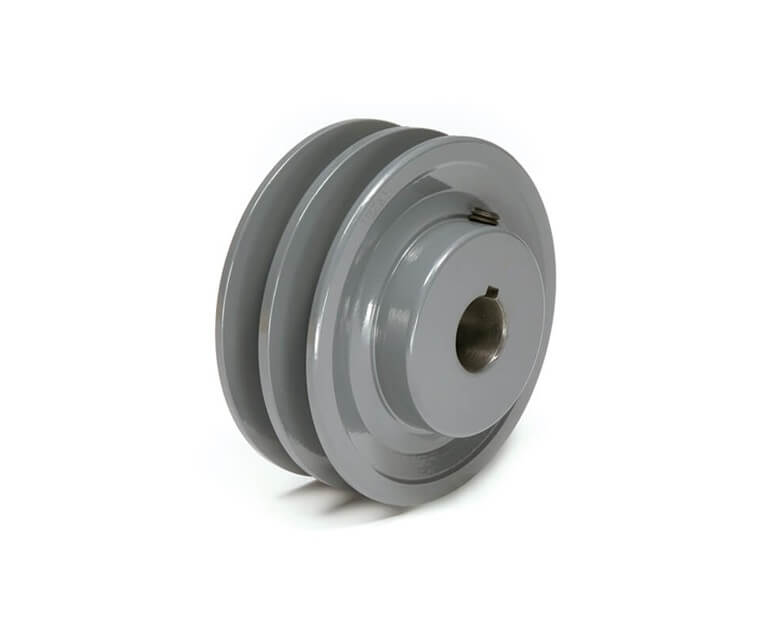

TB WOODS 2BK451 FHPBoredtosize V-Belt Sheave, Cast Iron, 4L Type Belt, 2.125 inch Hub Dia.
Item: AE6PPHModel: 2BK451Cross Ref: 5UHL6
7 In Stock
Ships within 2 days via
10.00% off
€109.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| 4l Pitch Diameter | 3.5" |
| 4l, A, Or Ax Belt Pitch Dia. | 3 1/2" |
| 4la Or A Belt Pitch Dia. | 3 1/2" |
| 5l Pitch Diameter | 3.9" |
| 5l, B, Or Bx Belt Pitch Dia. | 3.9" |
| A Pitch Diameter | 3.5" |
| Ax Pitch Diameter | 3.5" |
| B Pitch Diameter | 3.9" |
| Belt Type | 4L |
| Bore Dia. | 1" |
| Bore Type | Fixed |
| Bore-to-size Bore Dia. | 1" |
| Bushing Required | None |
| Bx Pitch Diameter | 3.9" |
| Construction | Web |
| Datum Dia. | 3.9" |
| Dimension E | 0.47" |
| Dimension L | 1.47" |
| Face Width | 1 3/4" |
| Fits Shaft Dia. | 1" |
| For Belt Section | 4L, 5L, A, Ax, B, Bx |
| For V-belt Type | Classical, Cogged |
| Hub Dia. | 2 1/8" |
| Hub Projection | 0.469" |
| Hub Type | One Side |
| Includes | Set Screw |
| Industry Number | 2BK451 |
| Inside Dia. | 3 3/4" |
| Keyway | Yes |
| Keyway Depth | 1/8" |
| Keyway Size | 1/4" x 1/8" |
| Keyway Width | 1/4" |
| Length Through Bore | 1 15/32" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Max. Rpm | 5890 RPM |
| No. Of Grooves | 2 |
| Number Of Set Screws | 1 |
| Outside Dia. | 4 1/4" |
| Outside Diameter | 4.25" |
| Overall Length | 2.219" |
| Overall Width | 2 1/4" |
| Pitch Dia. | 3.5" (4L, A), 3.9" (5L, B) |
| Product Type | FHP Bored to Size |
| Pulley Construction | Webbed |
| Pulley Industry Number | 2BK45 |
| Pulley Series | Series BK |
| Set Screw Included | Yes |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 11.68 |
| HS code | 8483509040 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | For Belt Section | 4l, A, Or Ax Belt Pitch Dia. | Industry Number | 5l, B, Or Bx Belt Pitch Dia. | Max. Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AK3212 | Fixed | 3 1/4" | 1/2" | 3L, 4L, A, Ax | 3" | AK3212 | - | 7700 RPM | €33.70 | |
 |
AK3258 | Fixed | 3 1/4" | 5/8" | 3L, 4L, A, Ax | 3" | AK3258 | - | 7700 RPM | €33.70 | |
|
AK3234 | Fixed | 3 1/4" | 3/4" | 3L, 4L, A, Ax | 3" | AK3234 | - | 7700 RPM | €33.70 | |
|
AK32X7/8 | Fixed | 3 1/4" | - | 3L, 4L, A, Ax | 3" | AK3278 | - | 7700 RPM | €39.79 | |
|
AK321 | Fixed | 3 1/4" | 1" | 3L, 4L, A, Ax | 3" | AK321 | - | 7700 RPM | €33.70 | |
 |
AK1041 | Fixed | - | 1" | 3L, 4L, A, Ax | 10" | AK1041 | - | 2440 RPM | €132.62 | |
|
AK10434 | Fixed | - | 3/4" | 3L, 4L, A, Ax | 10" | AK10434 | - | 2440 RPM | €132.62 |
