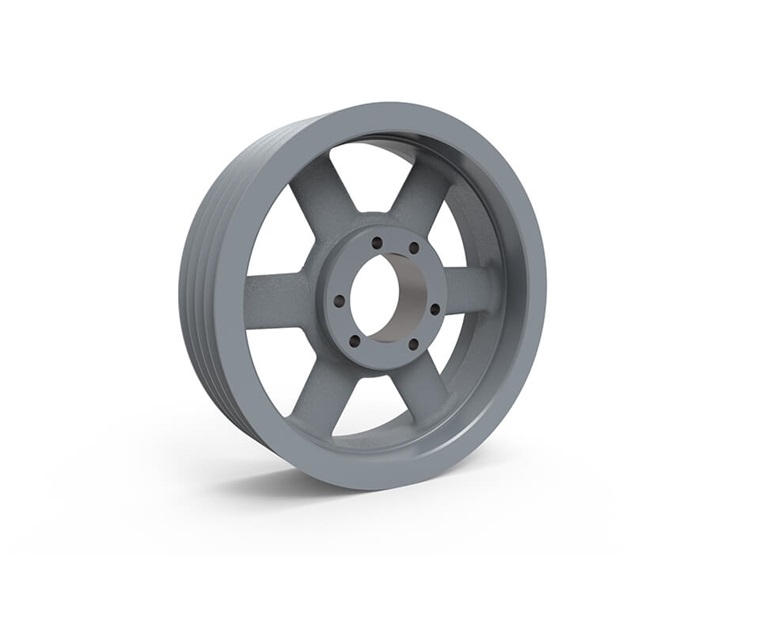

TB WOODS 2004D Classical V-Belt Sheave, Cast Iron, D Type Belt, 20 inch Datum Dia.
20 3/5"
Get it by Thursday, Dec 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Type | D |
| Bore Type | Quick Disconnect Bushing |
| Bushing | J |
| Datum Dia. | 20" |
| Dimension E | 0.31" |
| Dimension L | 4 1/2" |
| Dimension M | 1 1/4" |
| Face Width | 6.06" |
| Hub Location | 1 14/25" |
| Inside Dia. | 17.63" |
| Material | Cast Iron |
| Max. Rpm | 1220 RPM |
| No. Of Grooves | 4 |
| Outside Dia. | 20 3/5" |
| Overall Length | 6.062" |
| Pitch Dia. | 20 3/5" |
| Rpm High | 1220 rpm |
Shipping Info:
| Ship weight (kg) | 60.89 |
| Ship length (cm) | 52.32 |
| Ship width (cm) | 52.32 |
Product Variants
| Product | Model | Outside Dia. | Bore Type | Industry Number | For Belt Section | For Bushing Size | 4l, A, Or Ax Belt Pitch Dia. | 5l, B, Or Bx Belt Pitch Dia. | C Or Cx Belt Pitch Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1104B | 11.35" | Bushed | 1104B | 4L, 5L, A, Ax, B, Bx | SK | 10.6" | 11" | - | €417.78 | |
|
1364B | 13.95" | Bushed | 1364B | 4L, 5L, A, Ax, B, Bx | SK | 13.2" | 13.6" | - | €461.18 | |
 |
1603B | 16.35" | Bushed | 1603B | 4L, 5L, A, Ax, B, Bx | SK | 15.6" | 16" | - | €448.27 | |
|
1604B | 16.35" | Bushed | 1604B | 4L, 5L, A, Ax, B, Bx | SF | 15.6" | 16" | - | €603.81 | |
|
1844B | 18 3/4" | Bushed | 1844B | 4L, 5L, A, Ax, B, Bx | SF | 18" | 18.4" | - | €591.02 | |
 |
2501B | 25.35" | Bushed | 2501B | 4L, 5L, A, Ax, B, Bx | SF | 24.6" | 25" | - | €782.20 | |
 |
424B | 4.55" | Bushed | 424B | 4L, 5L, A, Ax, B, Bx | SD | 3.8" | 4.2" | - | €198.66 |
