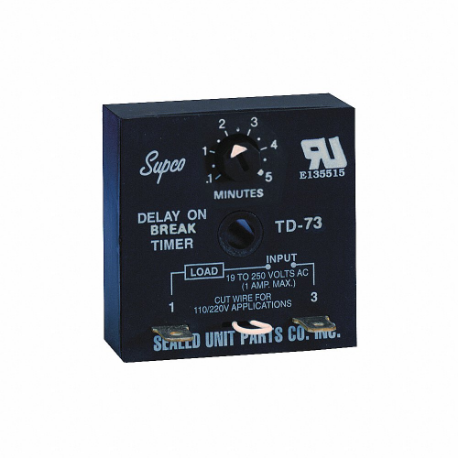

SUPCO TD73 Single Function Encapsulated Timing Relay, Surface Relay Mounting, 19 To 250V AC/Dc
Item: CU4VXZModel: TD73Cross Ref: 407L16
7 In Stock
Ships within 2 days via
10.00% off
€14.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Ac Contact Rating | 1A @ 19 to 250V |
| Adjustment Method | Potentiometer |
| Amps Rating | 1A |
| Base Shape | Square |
| Body Depth | 2" |
| Body Height | 3/4" |
| Body Width | 2" |
| Contact Form | SPST-NO |
| Contact Rating (ac) | 1A @ 19-250V |
| Current Rating | 1A |
| Dc Contact Rating | 1A @ 19V To 250V |
| Delay Function | Delay On Break |
| Delay Function Group | On Delay |
| Electrical Connection | Push In |
| Electrical Connection Type | Push In |
| Environmental Protection | Enclosed |
| Flat Pin Width | 1/4" |
| Input Voltage | 19-250V AC/DC |
| Ip Rating | Not Applicable |
| Max. Operating Temp. | 160°F |
| Max. Time Setting | 8 min. |
| Max. Time Setting - Timer | 5 min. |
| Min. Operating Temp. | 0°F |
| Min. Time Setting | 6 sec. |
| Min. Time Setting - Timer | 6 sec. |
| Minimum Time Setting | 6 sec. |
| Mounting - Relay | Surface |
| Mounting Style | Surface |
| No. Of Pins | 2 |
| No. Of Pins - Relay | 2 |
| Number Of Delay Functions | 1 |
| Number Of Pins | 2 |
| Overall Depth | 1" |
| Overall Height | 1" |
| Relay Mounting Style | Surface |
| Reset Method | Time Limit Reset |
| Sealing | Enclosed |
| Type Of Output | Solid State |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Delay Function | Contact Form | Ac Contact Rating | Dc Contact Rating | Number Of Pins | Relay Mounting Style | Electrical Connection Type | Body Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

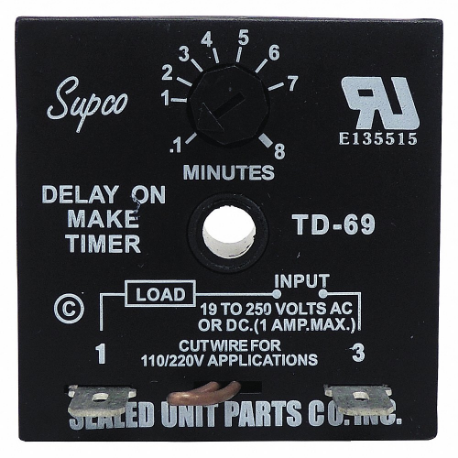

TD69 | Delay On Make | SPST-NO | 1A @ 19 to 250V | 1A @ 19V To 250V | 2 | Surface | Push In | 3/4" | €15.81 |
