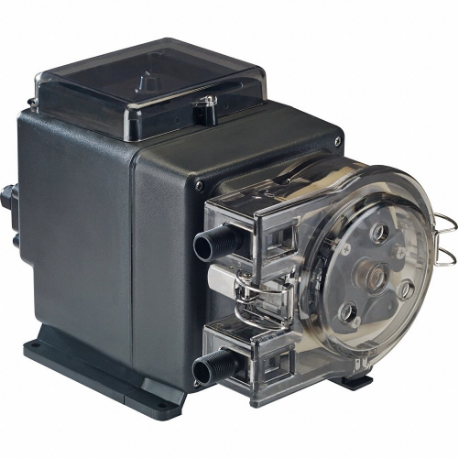

STENNER S445X Peristaltic Chemical Metering Pump, 150 gpd Max. Flow Rate, 1.5 gpd Min. Flow Rate, 120 V
Item: CU4RHMModel: S445XCross Ref: 806EL5
7 In Stock
Ships within 2 days via
10.00% off
€3,409.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chemical Metering Pump |
| Chemical Compatibility | Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Phosphoric Acid 100%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water |
| Compatible Chemicals | Ammonium Hydroxide, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Phosphoric Acid 100%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water |
| Control Programs | 4-20 mA Input, Manual Control |
| Cord Length | 6 ft. |
| Current | 4-20 mA |
| Degassing Valve Included | No |
| Discharge Connection Size | 3/8" |
| Discharge Connection Type | NPT |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Electrical Connection Type | Plug In |
| Fitting Material | Polypropylene, PVC |
| Flow Rate Control | Adjustable |
| Frequency | 60 Hz |
| Head Material | Polycarbonate |
| Housing Material | Polycarbonate |
| Includes | (1) Additional Pump Tube, (1) Ball Check Valve, (1) Manual, (1) Mounting Bracket, (1) Suction/Discharge Tubing And White Or Uv Black, (1) Weighted Suction Line Strainer, (2) Adapters, (3) Connecting Nuts |
| Intake Connection Size | 3/8" |
| Intake Connection Type | NPT |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ambient Temp. | 104°F |
| Max. Discharge Pressure | 25 psi |
| Max. Flow Rate | 150 GPD |
| Max. Hp | 1/16 hp |
| Max. Media Temp. | 104°F |
| Max. Motor Speed | 45 RPM |
| Max. Pressure | 25 psi |
| Max. Viscosity | 1500 cPS |
| Maximum Motor Speed | 45 RPM |
| Min. Flow Rate | 1.5 GPD |
| Min. Media Temp. | 32°F |
| Motor Efficiency Group | Nema Premium Efficient |
| Motor Enclosure | Totally Enclosed |
| Motor Enclosure Design | Totally Enclosed |
| Motor Hp | 1/16 hp |
| Motor Type | DC |
| Nameplate Voltage | 120V AC |
| No. Of Feeds | 1 |
| Number Of Feeds | 1 |
| Overall Height | 7" |
| Overall Length | 7 1/5" |
| Overall Width | 11" |
| Phase | Single |
| Priming | Self Priming |
| Reproducibility | -2.0% to +2.0% |
| Reproducibility | -2% to +2% |
| Roller Material | Polyethylene |
| Self Priming | Yes |
| Tubing Material | Santoprene |
| Turn Down Ratio | 100:1 |
Shipping Info:
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 18.29 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
