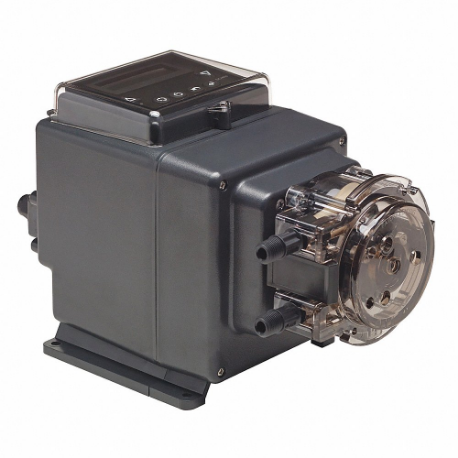

STENNER S3004AA101N Chemical Metering Pump, 60 gpd
Item: CU4RENModel: S3004AA101NCross Ref: 52XH67
7 In Stock
Ships within 2 days via
10.00% off
€2,709.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chemical Metering Pump |
| Body Material | Polycarbonate |
| Chemical Metering Pump Type | Peristaltic |
| Compatible Chemicals | Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Phosphoric Acid 100%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water |
| Control Programs | 4-20 mA Input, Manual Control, Hall Effect Flow Sensor, Cycle Timer 7 Day/24 Hour Timer |
| Cord Length | 6 ft. |
| Current | 4-20 mA |
| Degassing Valve Included | No |
| Discharge Connection Size | 1/4" |
| Discharge Connection Type | Tube |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Electrical Connection Type | Plug In |
| Features | 7 Days/24 Hr Timer, Leak Detect, Performance Indicators Tube Change, Various Operation Modes |
| Fitting Material | Polypropylene, PVC |
| Flow Rate Control | Variable |
| Flow Rate Output Control | Variable |
| Frequency | 60 Hz |
| Head Material | Polyethylene, Polypropylene |
| Height | 7 13/64" |
| Housing Material | Polycarbonate |
| Hp - Pumps | 1/16 hp |
| Includes | (2) Additional Latches, (3) 1/4" Ferrules, (3) Connecting Nuts, 20 ft. Roll Of Suction/Discharge Tubing, Injection Fitting, Mounting Bracket, Pump Tube, Weighted Suction Line Strainer |
| Intake Connection Size | 1/4" |
| Intake Connection Type | Tube |
| Length | 11" |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ambient Temp. | 104°F |
| Max. Discharge Pressure | 25 psi |
| Max. Flow Rate | 60 GPD |
| Max. Hp | 1/16 hp |
| Max. Media Temp. | 104°F |
| Max. Motor Speed | 45 RPM |
| Max. Pressure | 25 psi |
| Max. Viscosity | 1500 cPS |
| Maximum Motor Speed | 45 RPM |
| Min. Flow Rate | 0.6 GPD |
| Min. Media Temp. | 32°F |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure | Totally Enclosed |
| Motor Enclosure Design | Totally Enclosed |
| Motor Hp | 1/16 hp |
| Motor Mounting Type | Not Applicable |
| Motor Type | Brushless DC |
| Nameplate Voltage | 120V AC |
| No. Of Feeds | 1 |
| Number Of Feeds | 1 |
| Overall Height | 7" |
| Overall Length | 6 2/5" |
| Overall Width | 10.9" |
| Phase | Single |
| Phase - Pumps | 1 |
| Priming | Self Priming |
| Pump Rpm | 45 RPM |
| Pump Type | Peristaltic |
| Reproducibility | -2% to +2% |
| Reproducibility | -2.0% to +2.0% |
| Reproducibility - Pumps | -2% to +2% |
| Roller Material | Polyethylene |
| Seal Material | Buna N |
| Self Priming | Yes |
| Self-priming | Yes |
| Sensor Cycle Time | 24 hrs. |
| Suction Lift | 25 ft. |
| Tubing Material | Santoprene |
| Tubing Material - Peristaltic Pumps | Versilon |
| Turn Down Ratio | 100:1 |
| Turn Down Ratio - Pumps | 1001 |
| Width | 5 29/32" |
Shipping Info:
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 27.69 |
| Country of Origin | US |
