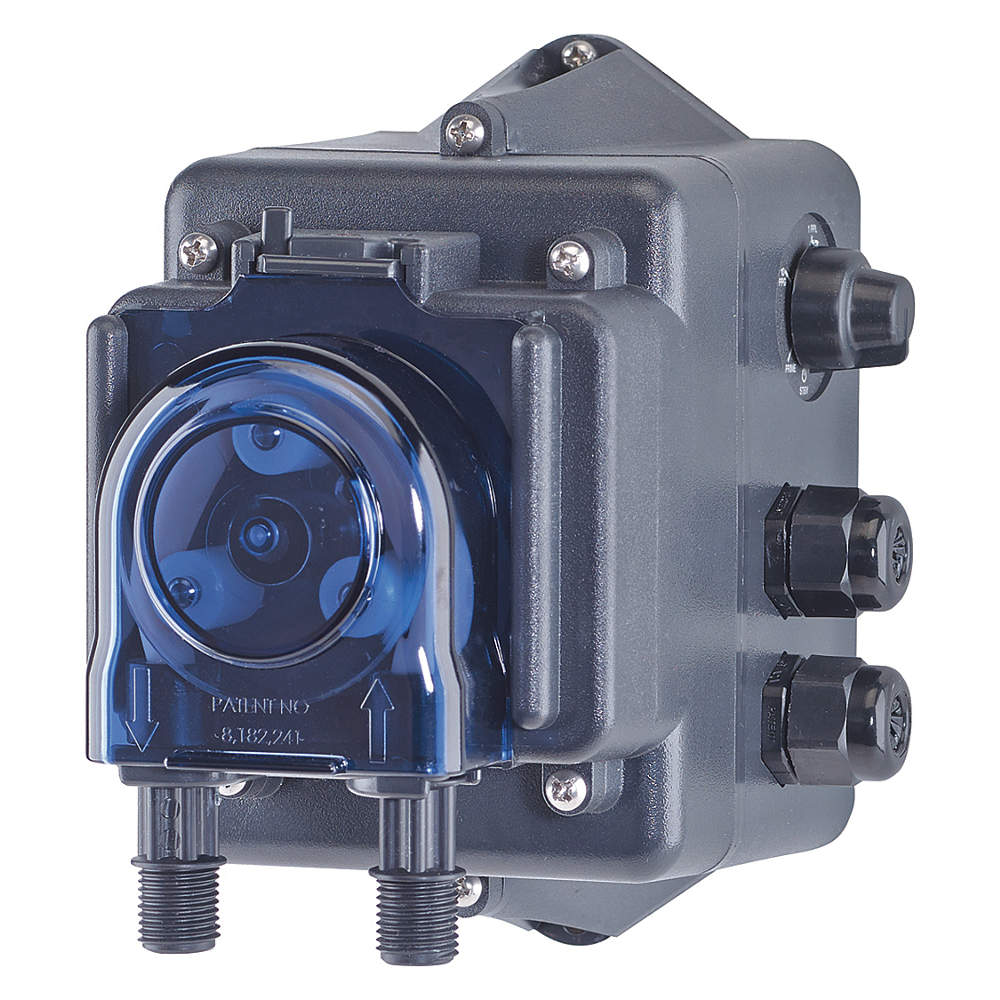

STENNER E20MH81S6G1 Pump Peristaltic 30 Gpd 80 Psi 120v
Item: AG3QKJModel: E20MH81S6G1Cross Ref: 33TH67
7 In Stock
Ships within 2 days via
10.00% off
€880.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chemical Metering Pump |
| Body Material | Polycarbonate |
| Cc/min. | 78.85 |
| Chemical Metering Pump Type | Peristaltic |
| Compatible Chemicals | Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Phosphoric Acid 100%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water |
| Control Programs | Contacting Head Water Meter |
| Cord Length | 10 ft. |
| Degassing Valve Included | No |
| Discharge Connection Size | 1/4" |
| Discharge Connection Type | Tube |
| Discharge Size | 1/4" |
| Discharge Type | Tube |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Electrical Connection Type | Plug In |
| Features | Accepts A Signal From A Water Meter, Controllers Or Other Device, Injection (1:128) For Water Flow Up To 2.7 Gpm, Providing A Dry Contact At A Rate Of 1 Or 10 Ppg Or 1 Ppl, Signal Repeater Relay That Can Repeat The Incoming Signal To Another Stennicato |
| Fitting Material | Polypropylene, PVC |
| Flow Rate | 78.85 cc/min. |
| Flow Rate Control | Fixed |
| Flow Rate Of Water Output Control | Fixed |
| Flow Rate Output Control | Fixed |
| Frequency | 60 Hz |
| Head And Fitting Material | Polycarbonate, Polypropylene |
| Head Material | Polyethylene |
| Height | 5 1/2" |
| Housing Material | Polycarbonate |
| Hp - Pumps | 1/40 hp |
| Includes | (3) 1/4" Connecting Nuts, (3) 1/4" Ferrules, 20 ft. Roll Of Suction/Discharge Tubing, Duckbill Check Valve, Pump Tube, Weighted Suction Line Strainer |
| Includes Degassing Valve | No |
| Inlet Size | 1/4" |
| Inlet Type | Tube |
| Intake Connection Size | 1/4" |
| Intake Connection Type | Tube |
| Length | 6" |
| Material | Polycarbonate |
| Max. Ambient Temperature | 104°F |
| Max. Discharge Pressure | 80 psi |
| Max. Flow Rate | 1.25 GPH |
| Max. Flow Rate | 30 GPD |
| Max. Hp | 1/40 hp |
| Max. Media Temp. | 104°F |
| Max. Pressure | 80 psi |
| Max. Viscosity | 50 cPS |
| Max. Viscosity - Pumps | 50 cPS |
| Maximum Motor Speed | 60 RPM |
| Min. Flow Rate | Not Applicable |
| Min. Flow Rate | 30 GPD |
| Min. Media Temp. | 32°F |
| Motor Enclosure | Totally Enclosed |
| Motor Enclosure Design | Totally Enclosed |
| Motor Hp | 1/40 hp |
| Motor Mounting Type | Not Applicable |
| Motor Rpm | 60 RPM |
| Motor Type | Brushless DC |
| No. Of Feeds | 1 |
| Number Of Feeds | 1 |
| Overall Height | 5 2/5" |
| Overall Length | 4 2/5" |
| Overall Width | 5.9" |
| Phase | 1 |
| Phase - Pumps | 1 |
| Priming | Self Priming |
| Pump Type | Peristaltic |
| Reproducibility | -2.0% to +2.0% |
| Reproducibility | -2% to +2% |
| Reproducibility - Pumps | -2% to +2% |
| Roller Material | Polyethylene |
| Seal Material | Santoprene |
| Seals And O-rings | Buna-N |
| Seals And O-rings - Pumps | Santoprene |
| Self Priming | Yes |
| Self-priming | Yes |
| Series | ECON Stennicator Series |
| Suction Lift | 25 ft. |
| Tube Material | Santoprene |
| Tubing Material | Santoprene |
| Tubing Material - Peristaltic Pumps | Santoprene |
| Voltage | 120V AC |
| Width | 3 3/4" |
Shipping Info:
| Ship weight (kg) | 1.74 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 20.32 |
| HS code | 8413810040 |
