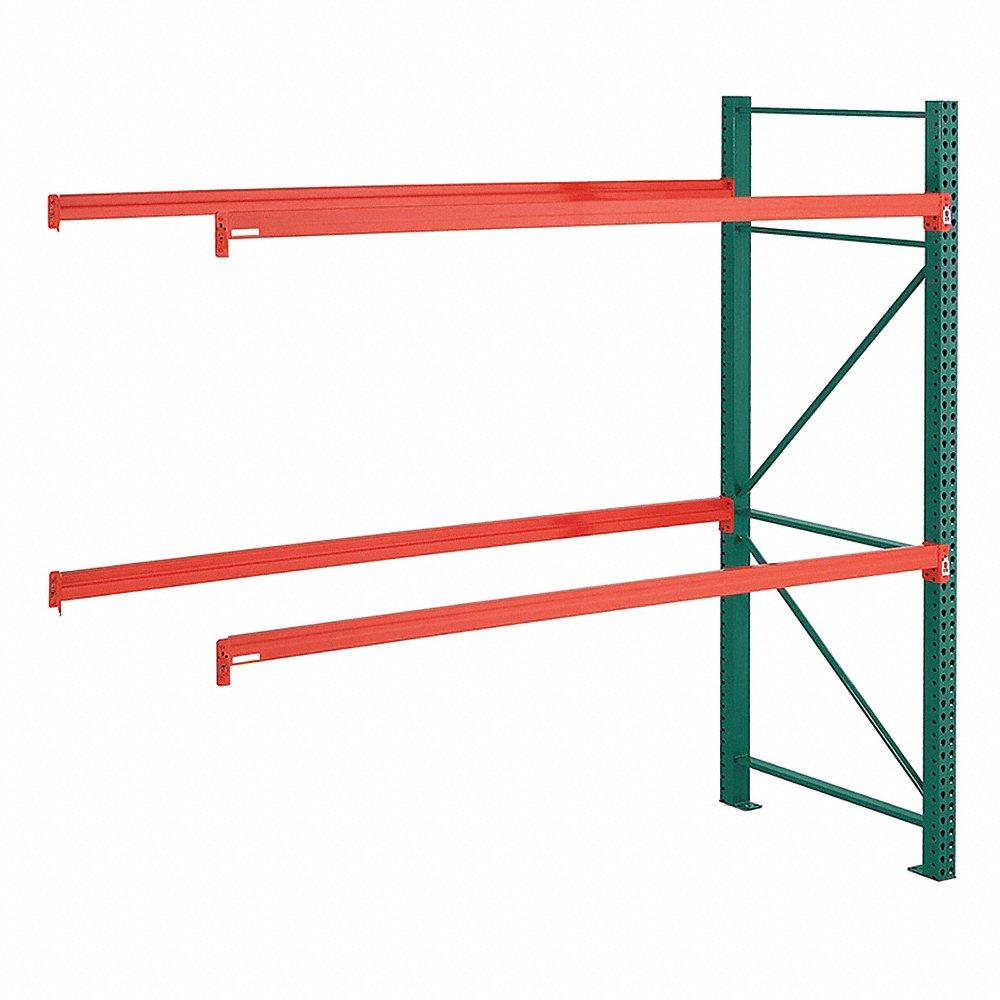

STEEL KING AG42144M550120A Pallet Rack Add-On Unit, 123 Inch x 42 Inch x 12 ft, 12 ga Beams, 14 ga Uprights
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pallet Rack Add-On Unit |
| Beam Gauge | 12 ga. |
| Beam Height | 5 1/2" |
| Beam Step Depth | 1" |
| Beam Step Height | 1 5/8" |
| Beam Style | Step Beam |
| Color | Green, Orange |
| Connection Type | Teardrop |
| Finish | Powder Coating |
| Foot Plates | 4.5" x 3" |
| Footplate Depth | 4" |
| Footplate Width | 3" |
| Included | (4) Beams, Upright |
| Included Decking | No |
| Load Capacity Per Level | 6700 lbs. |
| Material | Steel |
| Metal Forming Type | Roll Formed |
| No. Of Levels | 2 |
| No. Of Shelves | 2 |
| Overall Depth | 42" |
| Overall Dimensions | 123" x 42" |
| Overall Height | 12 ft. |
| Overall Width | 123" |
| Overall Wxdxh | 123" x 42" x 12 ft. |
| Pallet Rack Beam Style | Step Beam |
| Pallet Rack Configuration | Add On |
| Pallet Rack Construction | Teardrop |
| Pallet Rack Style | Roll Formed |
| Upright Gauge | 14 ga. |
| Upright Load Capacity @ 36" | 22780 lbs. |
| Usable Width | 10 ft. |
| Whole Unit Load Capacity | 13400 lbs. |
| Whole Unit Load Capacity1 | 13400 lbs. |
Shipping Info:
| Ship weight (kg) | 121.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Usable Width | Overall Width | Overall Depth | Load Capacity Per Level | Overall Height | Color | Upright Gauge | No. Of Levels | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AG36120M475108A | 9 ft. | 111" | 36" | 5480 lbs. | 10 ft. | Green, Orange | 14 ga. | 2 | - | RFQ
|
| AG36096M475108A | 9 ft. | 111" | 36" | 5480 lbs. | 8 ft. | Green, Orange | 14 ga. | 2 | - | RFQ
|
| AP042096M475108A | 9 ft. | 111" | 42" | 5480 lbs. | 8 ft. | Blue, Orange | 16 ga. | 2 | €517.92 | |
| AG36096M550120A | 10 ft. | 123" | 36" | 6700 lbs. | 8 ft. | Green, Orange | 14 ga. | 2 | - | RFQ
|
| AP042096M550120A | 10 ft. | 123" | 42" | 6700 lbs. | 8 ft. | Blue, Orange | 16 ga. | 2 | €593.56 | |
| AG48120M550120A | 10 ft. | 123" | 48" | 6700 lbs. | 10 ft. | Green, Orange | 14 ga. | 2 | - | RFQ
|
| AG36120M400096A | 8 ft. | 99" | 36" | 5080 lbs. | 10 ft. | Green, Orange | 14 ga. | 2 | - | RFQ
|
