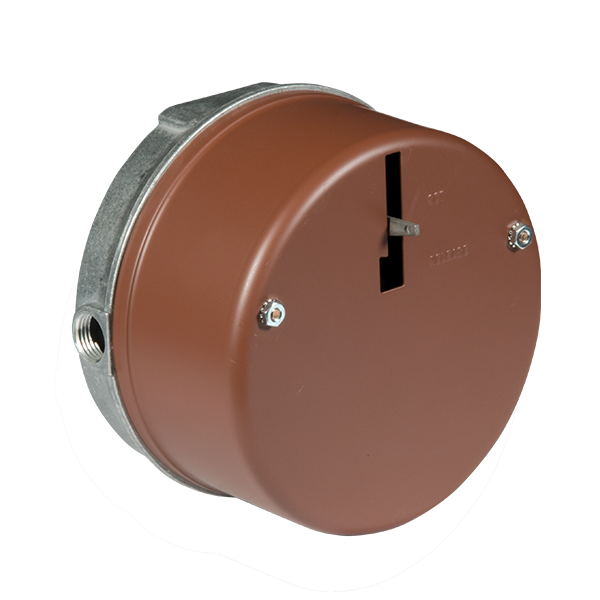

STEARNS BRAKES 105643100DFF Brake, NEMA2 230VAC
Item: BA6UQRModel: 105643100DFF
7 In Stock
Ships within 2 days via
€1,444.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Brake Assembly |
| Ac Coil Voltage | 190/230V AC |
| Application | General Purpose |
| Coil Frequency | 50/60 Hz |
| Coil Size | #4 |
| Coil Voltage Ac | 230/190V AC |
| Enclosure Iec | IP23 |
| Enclosure Ip Rating | IP23 |
| Enclosure Nema | NEMA 2 , NEMA2 |
| End Plate Material | Cast Iron |
| Hub Bore Dia. | 7/8" |
| Lbs.-ft. | 10 lbs.-ft. |
| Mount Orientation | Horizontal |
| Release | Turn Release |
| Release Type | Turn Release |
| Series | 56400 Series |
| Static Torque | 10 lbs.-ft. |
| Stearns Series | 56400 Series |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Static Torque | Hub Bore Dia. | Ac Coil Voltage | Enclosure Nema | Enclosure Ip Rating | Release | Enclosure Iec | Mount Orientation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 105644100BBF | 15 lbs.-ft. | 5/8" | 95/115V AC | NEMA 2 | IP23 | Turn Release | IP23 | Horizontal | €1,458.84 | |
| 105643100BFF | 10 lbs.-ft. | 5/8" | 190/230V AC | NEMA 2 | IP23 | Turn Release | IP23 | Horizontal | €1,444.55 | |
| 105642200BQF | 6 lbs.-ft. | 5/8" | 190/230/380/460V AC | NEMA 4 | IP56 | Turn Release | IP56 | Horizontal | €1,506.90 | |
| 105644200DLF | 15 lbs.-ft. | 7/8" | 380/460V AC | NEMA 4 | IP56 | Turn Release | IP56 | Horizontal | €1,869.20 | |
| 105642100DQF | 6 lbs.-ft. | 7/8" | 190/230/380/460V AC | NEMA 2 | IP23 | Turn Release | IP23 | Horizontal | €1,267.63 | |
| 105641100BBF | 3 lbs.-ft. | 5/8" | 95/115V AC | NEMA 2 | IP23 | Turn Release | IP23 | Horizontal | €1,047.19 | |
| 105641100BFF | 3 lbs.-ft. | 5/8" | 190/230V AC | NEMA 2 | IP23 | Turn Release | IP23 | Horizontal | €1,153.06 |
