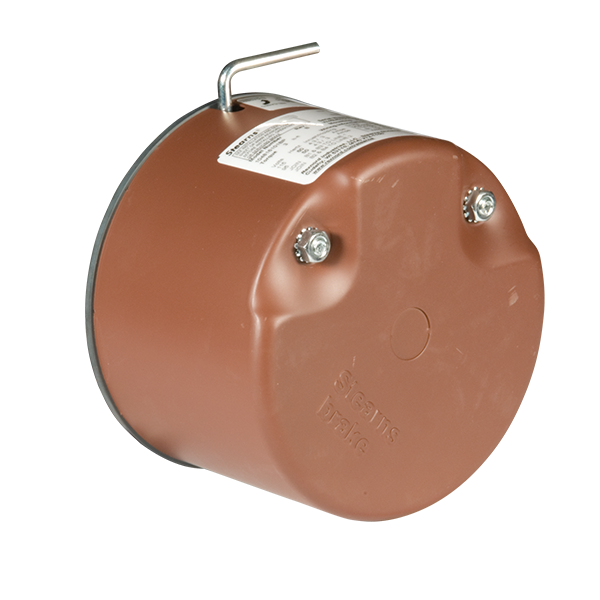

STEARNS BRAKES 104816101BF Brake, NEMA2 230VAC
Item: AK8HMTModel: 104816101BF
7 In Stock
Ships within 2 days via
€763.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Brake Assembly |
| Ac Coil Voltage | 190/230V AC |
| Application | General Purpose |
| Coil Frequency | 50/60 Hz |
| Coil Size | #4 |
| Coil Voltage Ac | 230/190V AC |
| Enclosure Iec | IP23 |
| Enclosure Ip Rating | IP23 |
| Enclosure Nema | NEMA 2 , NEMA2 |
| End Plate Material | Steel |
| Hub Bore Dia. | 5/8" |
| Mount Orientation | Horizontal |
| Release | Side Release |
| Release Type | Side Release |
| Series | 48100 Series |
| Static Torque | 3 lbs.-ft. |
| Static Torque Lb.-ft. | 3 lbs.-ft. |
| Stearns Series | 48100 Series |
| Strength | 3 |
Shipping Info:
| Ship weight (kg) | 1.97 |
| Ship height (cm) | 9.75 |
| Ship length (cm) | 14.22 |
| Ship width (cm) | 14.22 |
Product Variants
| Model | Hub Bore Dia. | Ac Coil Voltage | Static Torque | Enclosure Nema | Strength | Coil Voltage Ac | Torque | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 104815101BQ | 5/8" | 190/230/380/460V AC | 1.5 lbs.-ft. | NEMA 2 | 3 | 230/460/190/380V AC | - | - | €733.87 | |
| 104816100BP | - | - | - | NEMA 2 | - | - | 3 lbs.-in. | 230/115/208V | €781.88 | |
| 104816100BQ | - | - | - | - | - | - | - | - | €821.37 | |
| 104817101BL | 5/8" | 380/460V AC | 6 lbs.-ft. | NEMA 2 | 7 | 460/380V AC | - | - | €783.78 | |
| 104817101BN | 5/8" | 480/575V AC | 6 lbs.-ft. | NEMA 2 | 7 | 575/480V AC | - | - | €774.82 | |
| 104817101BP | 5/8" | 95/115/190/230V AC | 6 lbs.-ft. | NEMA 2 | - | - | 6 lbs.-in. | 230/115/208V | €774.82 | |
| 104817101BQ | 5/8" | 190/230/380/460V AC | 6 lbs.-ft. | NEMA 2 | 7 | - | 6 lbs.-in. | 460/230/208V | €774.82 |
