STARRETT SR300 21000 Portable Surface Roughness Tester With Onboard Display, Sr300, 5 Um Probe Tip Radius
Item: CU4PBKModel: SR300Cross Ref: 53VE73 / 21000
7 In Stock
Ships within 2 days via
10.00% off
€6,052.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surface Roughness Tester |
| Analysis Graph | Profile Graph |
| Battery Included | Yes |
| Battery Voltage | 9V |
| Calibration Functions | Automated Software Calibration Routine |
| Case Type | Carrying Case |
| Compatible Memory Card | Usb Stick |
| Compatible Wireless Transmitter | Bluetooth |
| Data Output Connection Type | Usb |
| Data Output Type | Cabled |
| Detector Measuring Force | 3 mN |
| Digital Filter Type | 2CR, Gaussian |
| Dimensions - Display Unit | 81 mm H x 303 mm W x 25 mm D |
| Display Functions | Menu, Device Icons, Graph, Battery, Brightness, Internal Memory, External Memory, Rotate, Screenshot, Battery Level, Caliberation, Stylus Return, Cut-Off, Set Zero, Filter Type, Measurement Length, Range, Parameters, Units, Storage, New Batch, Keyboard, View Batch, Delete Batch, Print Batch, Print, Language, Sleep Timer |
| Display Languages | English, French, German, Italian, Spanish |
| Display Screen Size | 4.3" |
| Display Size | 4.3" |
| Display Type | LCD |
| Display Unit Depth | 25 mm |
| Display Unit Height | 81 mm |
| Display Unit Width | 303 mm |
| Drive Unit | Skidded |
| Drive Unit Principle | Skid |
| Features | Large Screen Display, Unique Stylus Lift Mechanism For Total Flexibility, Many Application Specific Parameter Options, Comprehensive Selection Optional Accessories And Pickups, Long Traverse Length And Extended , Pickup Reach, Stores Of Up To 100 Readings |
| For Use With | Safety, Aerospace, Automotive, Precision Bearings, General Manufacturing Testing |
| Includes | Reference Standard, Column And Stand, USB Charger, Support Stand, USB Thermal Printer, Thermal Paper, Pair Of 115 mm (5.85 In) V-Blocks, Precision Vice, Ball Joint Vice |
| Includes Case | No |
| Includes Printer | Yes |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 104°F |
| Maximum Operating Temperature - C | 40°C |
| Measurement Range | 200 µm |
| Measuring Condition Standards | ISO4287, ASME, JIS |
| Measuring Range (in.) | 0.01" to 0.49" |
| Measuring Range (mm) | 200 µm |
| Measuring Range Ra | 200 mm, 100 mm, 10 mm |
| Measuring Range Rz | 0.1 Μm, 0.02 Μm, 0.01 Μm |
| Memory Storage Capacity | >39, 000 Raw Profiles, Up To 100, 000 Results Per Batch (>70 Batches) |
| Min. Operating Temp. | 41°F |
| Minimum Operating Temperature - C | 5°C |
| Minimum Operating Temperature - F | 41°F |
| Number Of Parameters Measured | 14 |
| Number Of Sampling Spans | 2 |
| Operating Position | Horizontal, Upside Down, Vertical |
| Operating Temp. Range | +41°F to +104°F |
| Operating Temperature Range | 41°F to 104°F |
| Parameters Measured | PAPPPTPVPZRARKURPRQRSKRTRVRZRZ1MAX |
| Pick-up Stylus | Inductive |
| Power Supply | 9V Battery |
| Printer Functions | Graph |
| Printer Paper Type | Thermal |
| Probe Positions | Axial Or 90 Degrees |
| Probe Sensor Type | Inductive |
| Probe Tip Radius | 5 µm |
| Product Type | Portable Surface Roughness Tester With Onboard Display |
| Profile Resolution | 10 N-m |
| Sampling Length | 0.003", 0.01", 0.03", 0.1" |
| Sampling Range Arbitrary Length | 0.01 mm to 0.49 mm |
| Spc Output | Yes |
| Tester Series | SR300 Series |
| Transverse Cutoff Length | 0.01", 0.03", 0.3", 0.25 mm, 0.8 mm, 2.5 mm, 8 mm |
Shipping Info:
| Ship weight (kg) | 2.08 |
| Ship height (cm) | 32.39 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 12.07 |
| HS code | 9027803500 |
| Country of Origin | UK |
Product Variants
| Product | Model | Profile Resolution | Measuring Condition Standards | Measurement Range | Sampling Range Arbitrary Length | Drive Unit Principle | Detector Measuring Force | Probe Tip Radius | Number Of Sampling Spans | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

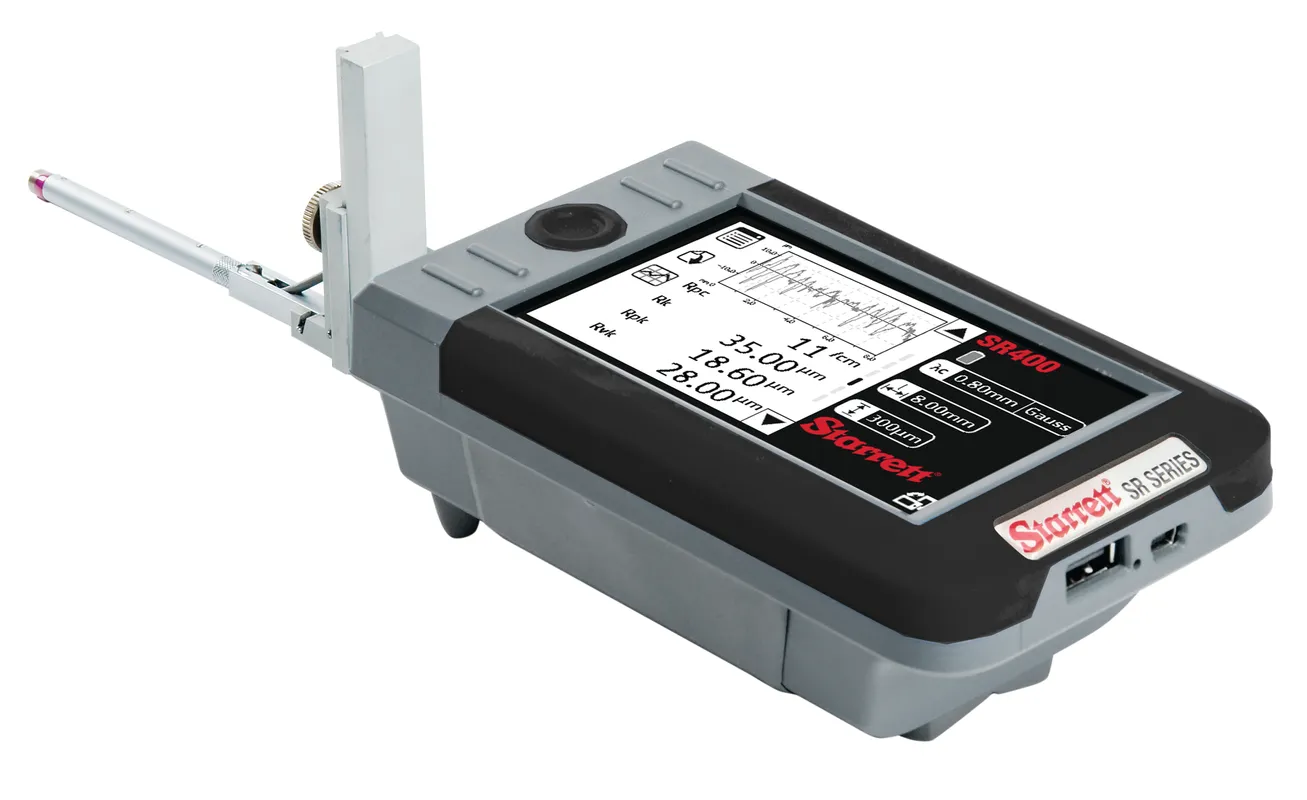

SR400 | 5 N-m | ISO4287, ISO13565, ASME, JIS | 360 µm | 0.01 mm to 0.89 mm | Skid | 3 mN | 5 µm | 2 | €8,420.08 |
