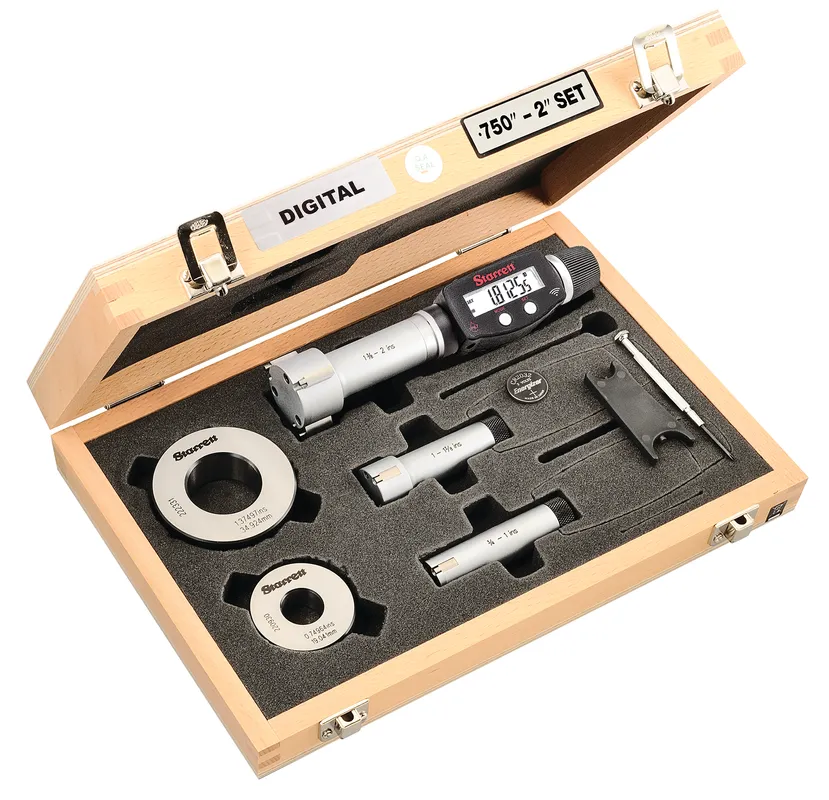

STARRETT S770BXTEZ 72579 Digital 3-Point Inside Micrometer Kit, 0.75 Inch To 2 In/20 mm To 50 mm Range, Ip65
Item: CU4NRVModel: S770BXTEZCross Ref: 53VE55 / 72579
7 In Stock
Ships within 2 days via
10.00% off
€8,134.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Kit |
| Accuracy | -0.0015" to +0.0015" |
| Battery Included | Yes |
| Battery Type | CR2032 Lithium Battery (Qty 1), Included |
| Case Type | Wood Case |
| Contact Point Material | Carbide |
| Coolant Resistant | Yes |
| Data Output Type | Cable, Wireless With Transmitter |
| Display Type | LCD |
| Functions | In./Mm Conversion, Reducing The Need to Exchange Anvils |
| Included Ranges | 1" to 1.375", 25 mm to 35 mm, 1.375 to 2", 20 to 25 mm, 3, 4" to 1", 35 mm to 50 mm |
| Includes | Adjusting Wrench, Contacts, Instructions, Setting Ring, Spare Battery |
| Includes Case | Yes |
| Inside Micrometer Type | 3 Point Inside Micrometer |
| Ip Rating | IP65 |
| Lock Nut Type | Screw |
| Max. Measurement | 2" |
| Maximum Measurement - Mm | 50 mm |
| Maximum Measuring Depth | 3 1/16" |
| Minimum Measurement - Inch | 3/4" |
| Minimum Measurement - Mm | 20 mm |
| Movement Of Screw | 1" |
| No. Of Batteries Required | 1 |
| Number Of Gauges | 0 |
| Number Of Measuring Rods | 0 |
| Number Of Micrometers | 1 |
| Operation Type | Digital |
| Output | Cabled, Wireless |
| Power Supply | USB/AC (Power Cable Included), Battery |
| Range (in) | 3/4" to 2" |
| Resolution (mm) | 0.001 mm |
| Rod Dia. | 2" |
| Rod Type | Tubular |
| Rotating Spindle | No |
| Spc Output | Yes |
| Thimble | Friction |
| Thimble Type | Ratchet Stop |
Shipping Info:
| Ship weight (kg) | 2.95 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 31.5 |
| Ship width (cm) | 25.4 |
| HS code | 9017304000 |
| Country of Origin | UK |
Product Variants
| Product | Model | Range | Inside Micrometer Type | Maximum Measuring Depth | Rod Dia. | Resolution | Spc Output | Ip Rating | Thimble Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
770BXTZ-100 | 0.08" to 0.1" | 2 Point Inside Micrometer | 3/8" | - | 0.00005" | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-120 | 0.1" to 0.12" | 2 Point Inside Micrometer | 3/8" | - | 0.00005" | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-160 | 0.12" to 0.16" | 2 Point Inside Micrometer | 15/32" | - | 0.00005" | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-200 | 0.16" to 0.2" | 2 Point Inside Micrometer | - | - | 0.00005" | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-250 | 0.2" to 0.25" | 2 Point Inside Micrometer | - | - | 0.00005" | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-312 | 1/4" to 5/16" | 3 Point Inside Micrometer | 2 1/4" | - | 0.00005" | Yes | IP65 | Ratchet Stop | €2,334.33 | |
 |
770BXTZ-375 | 5/16" to 3/8" | 3 Point Inside Micrometer | 2 1/4" | - | 0.00005" | Yes | IP65 | Ratchet Stop | €2,693.05 |
