STARRETT 657EZ 52751 Magnetic Base With Indicator, 2.25 Inch Dial Size
Item: AC4GZQModel: 657EZCross Ref: 2ZUL5 / 52751
7 In Stock
Ships within 2 days via
10.00% off
€1,105.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indicator with Magnetic Base |
| Accuracy | -0.0005" to +0.0005" |
| Agd No. | AGD 2 |
| Agd Number | AGD 2 |
| Back Type | Magnetic |
| Base Depth | 1 5/8" |
| Base Height | 1.89" |
| Base Length | 1.89" |
| Base Size | 1.89" L x 1.625" W x 1.89" H |
| Base Width | 1.625" |
| Calibration Certificate | No |
| Case Type | Wooden |
| Color | Black |
| Compatible Indicator Mounts | Lug |
| Contact Point Dia. | 1/4" |
| Dial Color | White |
| Dial Reading | 0-25-0 |
| Dial Size | 2 1/2" |
| Dimension Type | Inch |
| Finish | Black |
| Graduations | 0.0005" |
| Included Base Manufacturer Model No | 657D |
| Included Certification | Certificate Of Inspection |
| Includes Case | Yes |
| Includes Snug | No |
| Indicator Style | Plunger |
| Long Form Calibration Certificate | No |
| Magnet Type | Permanent |
| Magnetic Pull | 100 lb. |
| Magnetic Pull | 100 lbs. |
| Maximum Measurement - Inch | 1/8" |
| Maximum Reach | 9 1/2" |
| Minimum Measurement - Inch | 0" |
| Operation Type | Mechanical |
| Range | 0" to 0.125" |
| Range Per Revolution | 0.050" |
| Reading | Balanced |
| Resolution | 0.0005" |
| Standards | AGD |
Shipping Info:
| Ship weight (kg) | 2.61 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 17.02 |
| HS code | 8505904000 |
| Country of Origin | US |
Product Details:
- Starrett 657EZ is a balanced reading indicator set including a magnetic base, an upright post assembly and a 25-131J dial indicator (0-25-0 dial reading).
- The base has three precision-ground magnetic contact surfaces that are capable of attaching to steel or iron surfaces horizontally, vertically or even upside-down.
- The swivel post assembly of this set provides universal adjustment in both horizontal and vertical planes.
Product Variants
| Product | Model | Compatible Indicator Mounts | Magnet Type | Max. Reach | Arm Type | Includes Snug | Base Height | Base Width | Base Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
657AA | 1/4", 3/8" | On/Off Knob | 12" | Rigid | Yes | 1 15/16" | 1 5/8" | 1 7/8" | €479.79 | |
 |
657D | Lug-On-Back | On/Off Knob | 15" | Rigid | Yes | 1 15/16" | 1 5/8" | 1 7/8" | €642.72 | |
 |

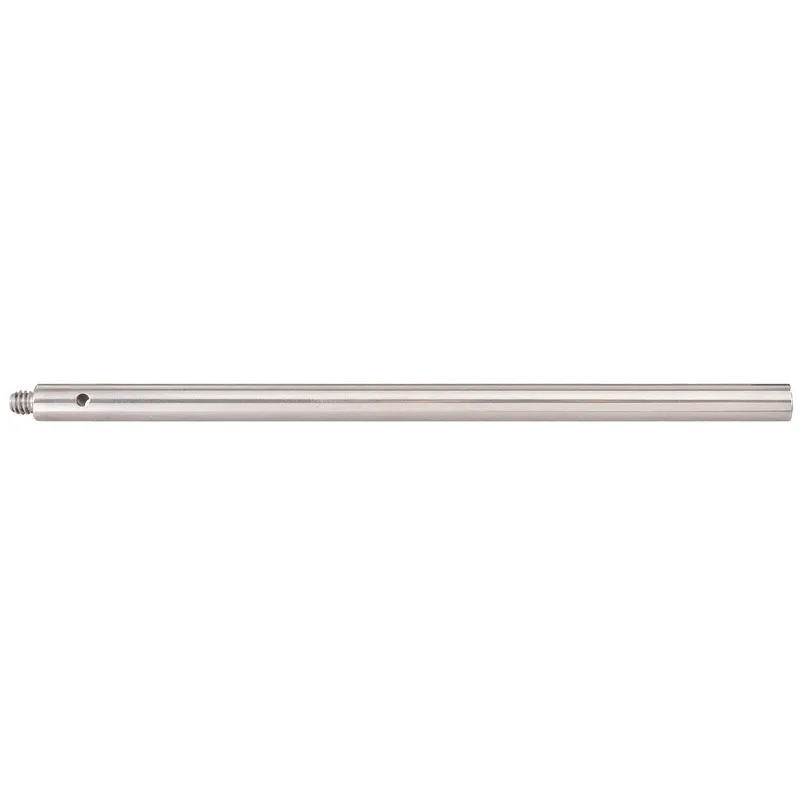

657G | Post Only | - | - | Rigid | No | - | - | - | €38.80 | |
 |
657C | Post | Permanent | 4" | - | Yes | 1.89" | 1 5/8" | 1.89" | €863.01 | |
 |
657-650Z | Post | Permanent | 6" | - | Yes | 1.89" | 1 5/8" | 1.89" | €1,433.25 | |
 |
657E | Lug | Permanent | 9 1/2" | - | No | 1.89" | 1 5/8" | 1.89" | €945.44 | |
 |
657B | Body Clamp | Permanent | 4" | - | Yes | 1.89" | 1 5/8" | 1.89" | €959.89 |
