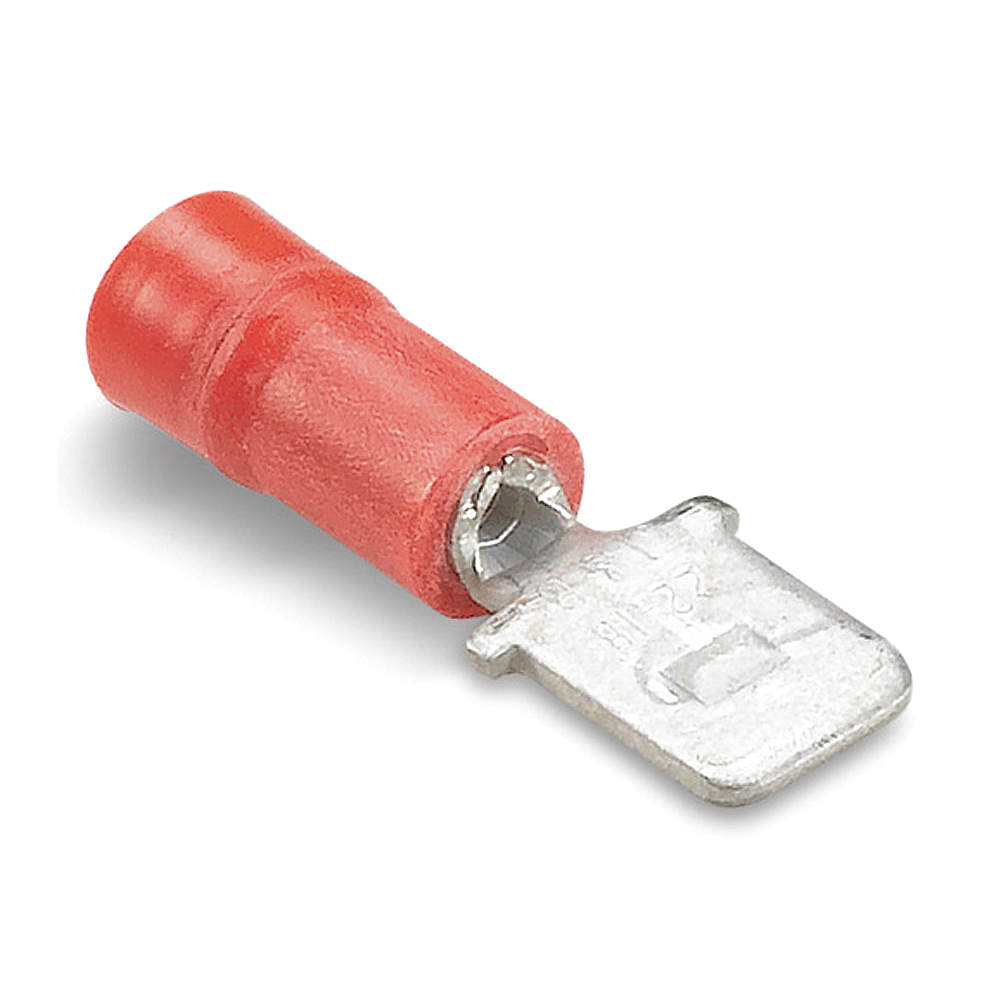

STA-KON 18RA-250T Male Tab, 22 To 18 Awg Conductor Size, Electro Plated Tin Finish, 600 Vac, Red
Item: AJ2HGMModel: 18RA-250TCross Ref: 4RHE2
7 In Stock
Ships within 2 days via
5.00% off
€77.78 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Disconnect |
| Barrel Inside Dia. | 0.06" |
| Barrel Size | Long |
| Barrel Style | Funnel Entry |
| Connection Material | Brass |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Disconnect Style | Tab |
| Flammability Rating | Not Rated |
| Insulation | Partial |
| Insulation Color | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Size | 18 AWG |
| Min. Wire Size | 22 AWG |
| Overall Length | 0.95" |
| Seam | Brazed |
| Seam Style | Brazed |
| Tab Size | 0.25" x 0.032" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Type | Tab |
| Termination Style | Crimp |
| Wire Size | 22 AWG to 18 AWG |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 2.41 |
| Ship width (cm) | 4.32 |
| Country of Origin | US |
