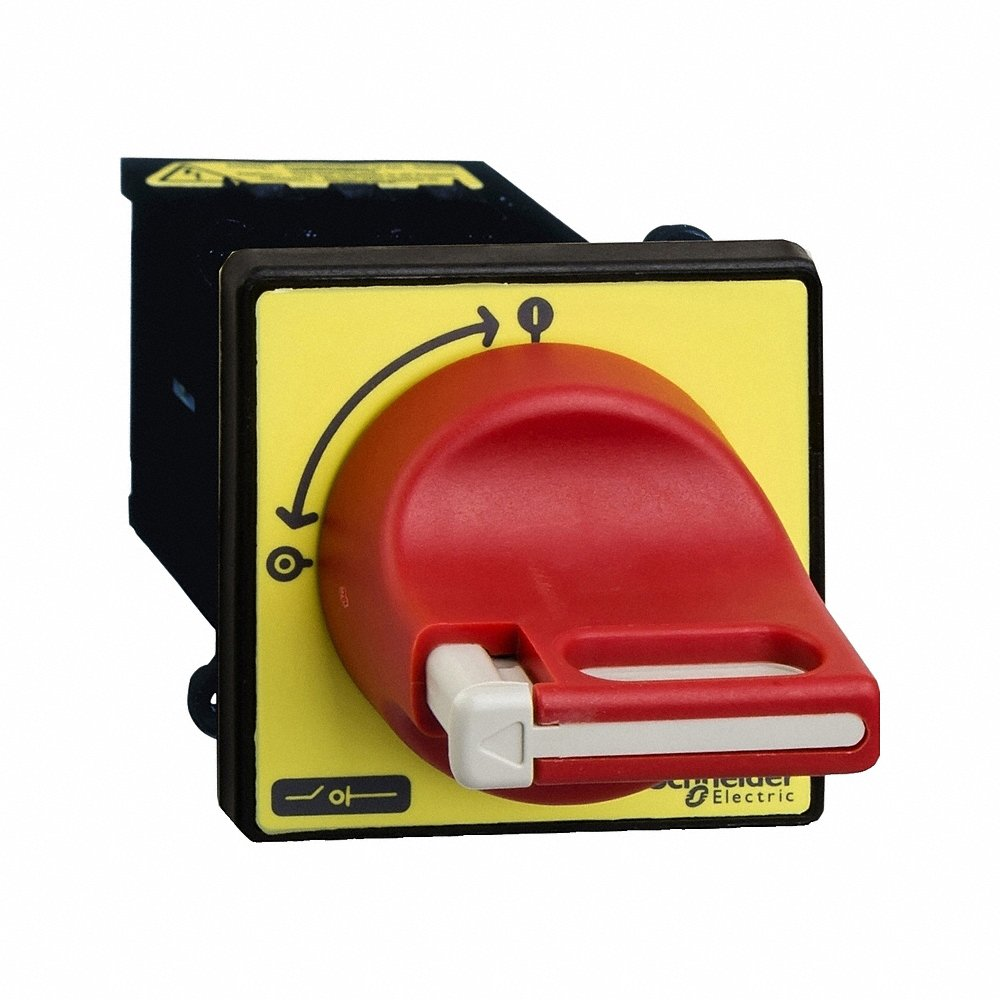

SQUARE D VCDN12 Mini Main Emergswitch 12A
Item: CV4NHYModel: VCDN12Cross Ref: 48U434
7 In Stock
Ships within 2 days via
5.00% off
€134.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Switch |
| Ambient Air Temp. For Operation | -4°F to +122°F |
| Amps Rating | 8.1A @ 400 V |
| Breaking Capacity | 120 kA 400V AC, 21A, 120 kA 400V AC, 22A, 120 kA 400V AC, 23A |
| Comm Code Enhanced | 41510 |
| Component Type | Emergency Stop Switch Disconnector |
| Connections Terminals | Power Circuit Screw Clamp Terminals 0.006 sq. in. Flexible With Cable End, Power Circuit Screw Clamp Terminals 0.006 sq. in. Solid , Power Circuit Screw Clamp Terminals 0.006" (4 mm) Flexible-With Cable End Power Circuit Screw Clamp Terminals 0.006" (4 mm) Solid |
| Contact Form | 3NO |
| Contact Type And Composition | 3 NO |
| Control Type | Rotary Handle |
| Conventional Enclosed Thermal Amps | 10A |
| Conventional Free Air Thermal Amps | 12A |
| Device Composition | Handle, Switch |
| Device Short Name | Vcdn |
| Discount Schedule | 0CP1 |
| Electrical Durability | 30000 Cycles , 30000 Cycles Dc-1 To 5, 50000 Cycles Ac-21 |
| Enclosure Type | Enclosed |
| Fire Resistance | 1760°F , 1760°F IEC 60695-2-1 |
| Fixing Mode | Hole 0.9" (22.5 mm) Handle , Hole 0.9" Handle |
| Fused | Fused |
| Handle Color | Red |
| Handle Front Plate Colour | Yellow |
| Handle Front Plate Dimension | 60 mm x 60 mm |
| Height | 2 2/5" |
| Icm Rated Short-circuit Making Capacity | 0.5 kA 400V At Ipeak |
| Ie Rated Operational Amps | 8.1A AC-23 Ue 400V |
| Includes | Handle |
| Intermittent Duty Class | 30 , Class 30 |
| Ip Degree Of Protection | IP65 |
| Making Capacity | 120A @ 400V AC-21A, 120A @ 400V AC-22A, 120A @ 400V AC-23A |
| Making Capacity ( I Rms) | 120A 400VAC, 21A, 120A 400VAC, 22A, 120A 400VAC, 23A |
| Mechanical Durability | 50000 Cycles |
| Mechanical Robustness | Vibrations 10-150 Hz 5 gn IEC 60068-2-6, Shocks 11 ms 15 gn IEC 60068-2-27 |
| Mounting Support | Handle Door, Switch Door |
| Nema Rating | 1, 12 |
| Network Type | AC, DC |
| No. Of Poles | 3 |
| Operation Type | 3-Pole |
| Performance Level | Standard |
| Product Or Component Type | Emergency Stop Switch Disconnector |
| Protective Treatment | TC |
| Range | Tesys |
| Rated Conditional Short Circuit Amps | 6 kA 400V, 12A aM, 6 kA 400V, 12A gG , 6A, 400V, 12A |
| Rated Impulse Withstand Voltage | 6 kV |
| Rated Operational Amps | 8.1A |
| Rated Operational Power In W | 3 kW 230-240V AC-23A, 4 kW 400-415V AC-23A, 5.5 kW 500V AC-23A, 7.5 kW 690V AC-23A, 1.5 kW 230-240V AC-3, 3 kW 400-415V AC-3, 4 kW 500V AC-3, 4 kW 690V AC-3 |
| Rated Operational Voltage | 690V |
| Rated Short Circuit Making Capacity | 0.5 kA @ 400V At Ipeak |
| Rated Short-time Withstand Rms Amps | 140A @ 400V |
| Returnability | Yes |
| Rotary Handle Mounting Style | Direct |
| Rotary Handle Padlocking | 1 to 3 Padlocks , 1 To 3 Padlocks 0.2°C 0.3 In (4°C 8 Mm) |
| Suitability For Isolation | Yes |
| Tightening Torque | 0.7 N-m |
| Ue Iec Rated Operational Voltage | 690V AC, 50/60 Hz |
| Uimp Rated Impulse Withstand Voltage | 6 kV |
| Voltage | 690V AC |
| Width | 2.4" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 6 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 6 |
| Country of Origin | CZ |
Product Variants
| Product | Model | Height | Amps | Returnability | Comm Code Enhanced | Handle Color | Handle Front Plate Colour | Rotary Handle Padlocking | Device Short Name | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VCFN12GE | 5 1/5" | 8 mA | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Vcfn | €306.24 | |
 |
KCF2PZ | 2 2/5" | - | Yes | - | Red | Yellow | 1 to 3 Padlocks | Kcf2 | €79.44 | |
 |
KAF1PZ | 2 2/5" | - | Yes | 41510 | Black | Black | 1 to 3 Padlocks | Kaf1 | €69.26 | |
 |
KCF1PZ | 2 2/5" | - | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Kcf1 | €78.80 | |
 |
KAF2PZ | 2 2/5" | - | Yes | 41530 | Black | Black | 1 to 3 Padlocks | Kaf2 | €70.70 | |
|
KCD1PZ | 2 2/5" | - | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Kcd1 | €70.70 | |
|
KAD1PZ | 2 2/5" | - | Yes | 41530 | Black | Black | 1 to 3 Padlocks | Kad1 | €70.70 |
