Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Amps Rating | 15A |
| Color | Ivory |
| Connection Orientation | Straight |
| Connectivity | Push And Side Wire |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Face Plate Height | 2.6" |
| Face Plate Width | 1 1/2" |
| Gfci | No |
| Grade | General Use |
| Grounding | Grounded |
| Horsepower Rating | 1/2 hp |
| Housing Color | Ivory |
| Housing Material | Thermoplastic |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Material | Thermoplastic |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -20°C |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Mounting Type | Screws |
| Nema Enclosure Rating | 1 |
| Nema Rating | 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Number Of Gangs | 1 |
| Overall Depth | 4.2" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-rr15i.pdf |
| Receptacle Type | Duplex |
| Surge Protection | No |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 3.56 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Voltage Rating | Color | Nema Rating | Phase | Amps Rating | Housing Material | Wire Size | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
111951 | - | - | - | - | - | - | - | - | €9.08 | |
![]() |
2172GY | 125V AC | Gray | 5-15R | 1 | - | - | 14 AWG to 10 AWG | - | €42.77 | |
![]() |
2172IV | 125V AC | Ivory | 5-15R | 1 | 15A | - | 14 AWG to 10 AWG | - | €43.07 | |
![]() |
2172RED | - | Red | 5-15R | 1 | 15A | - | 14 AWG to 10 AWG | - | €40.00 | |
![]() |
2172W | 125V AC | White | 5-15R | 1 | 15A | - | 14 AWG to 10 AWG | - | €42.77 | |
![]() |
2182GY | 125V AC | Gray | 5-20R | 1 | 20A | - | 12 AWG to 10 AWG | - | €45.25 | |
![]() |
2182IV | 125V AC | Ivory | 5-20R | 1 | 20A | - | 12 AWG to 10 AWG | - | €43.72 |
Explore Products
- LITTELFUSE FLSR250 Fuse, 250A, 600V AC, 11-5/8 Inch Length x 2-19/32 Inch Dia., Blade Body
- AUTOQUIP TTN-048-0080 Scissor Lift Table, 48 Inch Platform Width, 58 Inch Height, 8000 lbs Capacity
- AMERICAN TORCH TIP 049-929 Nozzle Miller Style 5/8 Inch
- AMS 403.41 Split Soil Core Sampler with Core Tip, 2 Inch Dia., 12 Inch Length, 5/8 Inch Thread Size
- EATON E34EX7007P Pushbutton, 30.5 mm, Red Actuator, Polyester Enclosure, 1No-1Nc
- TOUGH GUY 3HGX1 Condenser Tube Brush, Double Spiral/Double Stem, Stainless Steel, 4 in Brush Lg, 3/4 in Brush Dia.
- FPE NE114040 Bolt On Circuit Breaker Ne 40 Amp 120vac 1p 14kaic@120v
- HAYWARD ZMXAAC100
Explore More
- BRK
- GRATING FASTENERS
- KEYSHAFT
- NELSON STUD WELDING INC.
- POWR-GRIP
- Chemical-Resistant Pumps
- Ultrasonic Cleaners
- Cylinder Lift Trucks
- Reservoir Accessories
- Fence Rails
- TEMPCO Bayonet Adaptors
- ACME ELECTRIC Three Phase Dry Type Distribution Transformers, 240V Delta Primary Volts, 480Y/277 Secondary Volts
- KEO Center Reamer Sets, 3-Flute
- ANVIL 359 Series Reducing Tees, Black, Cast Iron
- ZSI-FOSTER BC90 Series, Malleable Iron Rod Support Beam Clamps
- COOPER B-LINE Conduit To Beam Fasteners
- MARTIN SPROCKET D Conventional 8 Groove Stock QD Sheaves
- FANTECH HEPA Filters
- NORGREN Valves
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

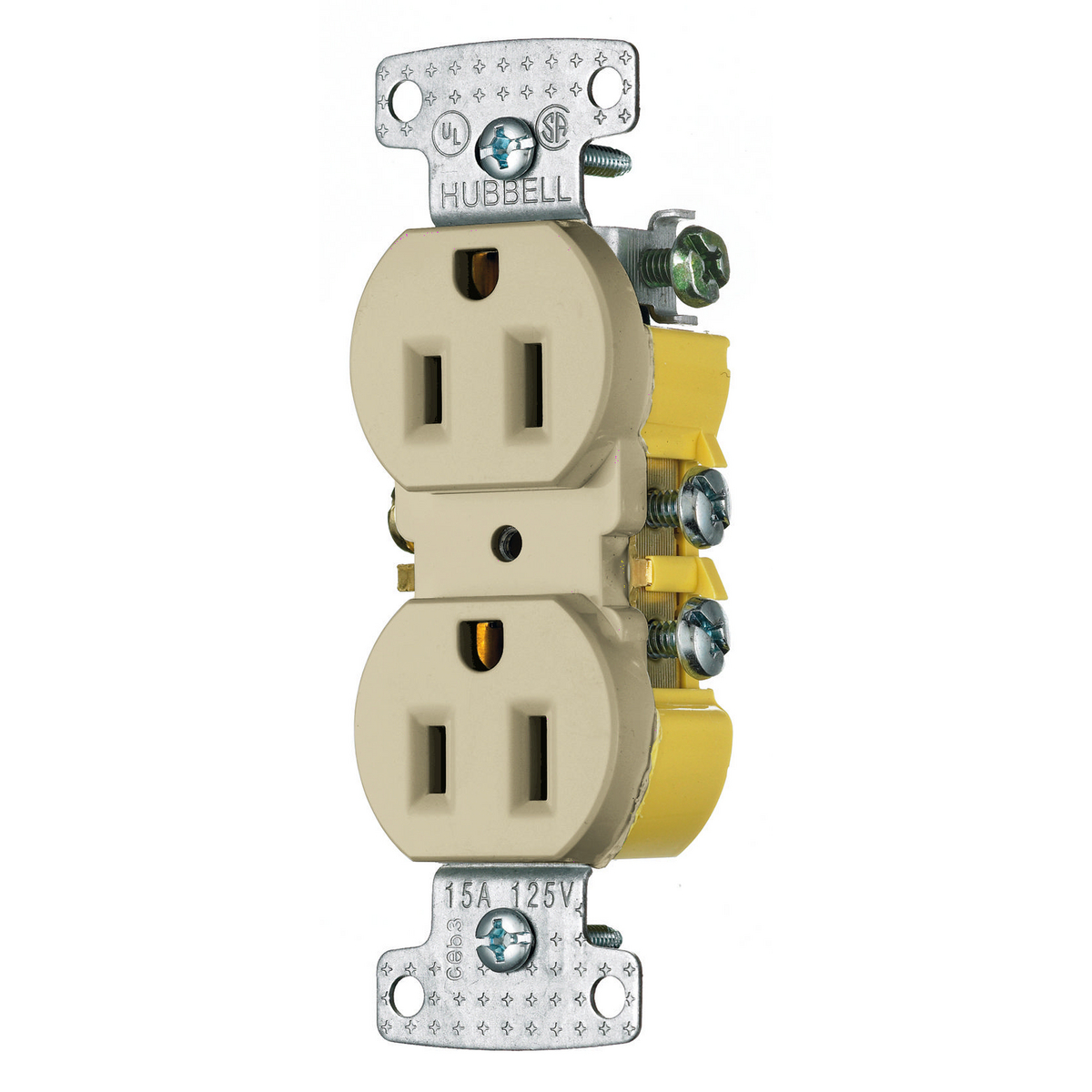

HUBBELL WIRING DEVICE-KELLEMS RR15I Receptacle, Standard Duplex, Flush Mount, 15A, 125V AC, Ivory
