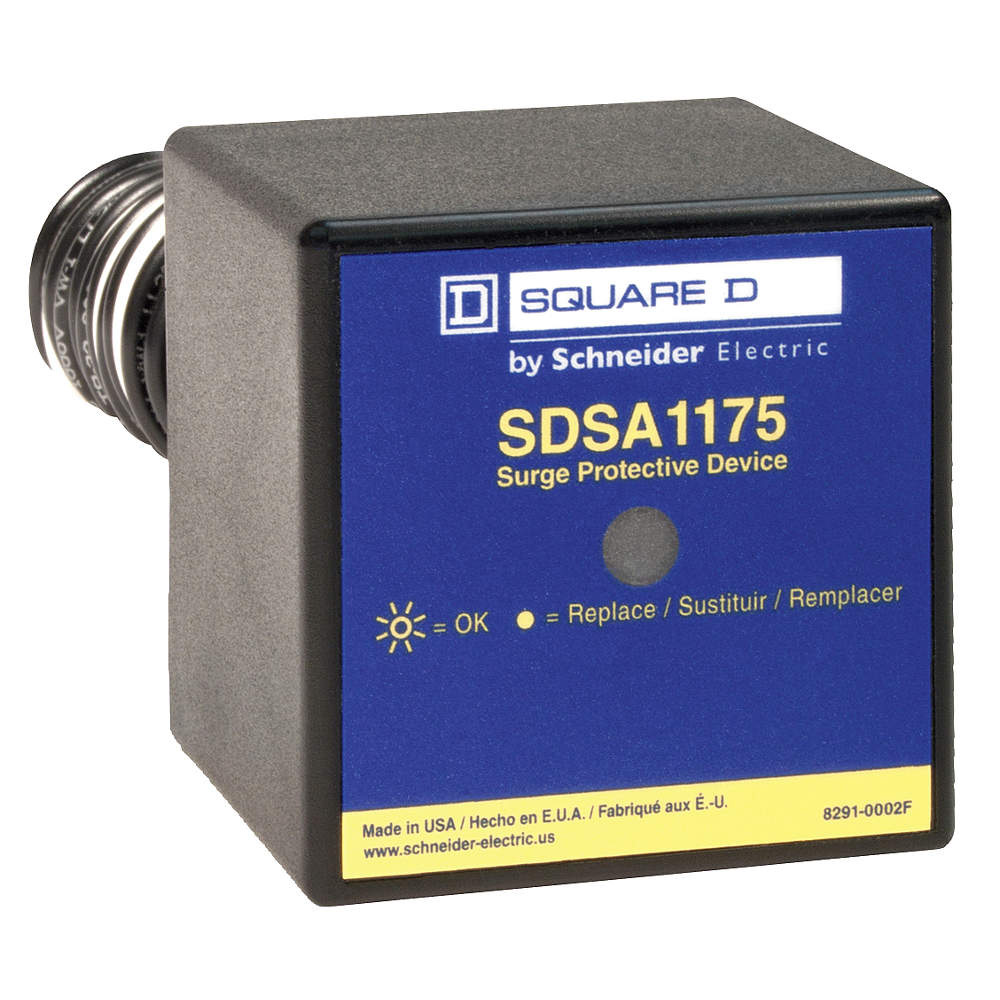

SQUARE D SDSA1175 Spd 1 Phase
Item: AG6QEFModel: SDSA1175Cross Ref: 3XB86
7 In Stock
Ships within 2 days via
5.00% off
€157.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surge Protection Device |
| Ambient Operating | 149°F |
| Amps | 36 kA |
| Basic Material | Nonmetallic |
| Cable Length | 24" |
| Color | Black |
| Depth | 2.69" , 2.7" |
| Enclosure Material | Black Plastic , Plastic |
| Enclosure Nema Rating | 4X |
| Enclosure Rating | NEMA 4X |
| Filter Type | Nonfiltering |
| Filtering | No |
| Height | 2 1/4" |
| Joules | 1304J |
| Length | 2 1/2" |
| Local Signalling | Status LED Green Normal Operation |
| Location Type | 1 |
| Material | Plastic |
| Max. Continuing Operating Voltage | 150 |
| Max. Continuing Operating Voltage | 150V AC |
| Max. Operating Temp. | 149°F |
| Max. Surge Current Per Mode | 36 kA |
| Max. Surge Current Per Mode | 36kA |
| Max. Surge Current Per Phase | 36 kA |
| Max. Surge Current Per Phase | 36kA |
| Mcov | 150V |
| Modes Of Protection | 3 |
| Modular | No |
| Mounting Style | Chase Nipple |
| No. Of Wires | 3 |
| Nominal Discharge Amps | 10 kA |
| Nominal Discharge Current | 10kA |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Rated Joules | 1304 |
| Returnability | Yes |
| Sccr | 25 kA |
| Short Circuit Amps Rating | 25 kA |
| Short Circuit Current Rating | 25kA |
| Status Indicator | LED Light |
| Surge Amps | 36 kA |
| System Connection | Parallel |
| Type | Hardwired |
| Ul Spd Type | Type 1 |
| Voltage | 120/240V AC |
| Voltage Protection Rating | 700 V (L-N), 1200 V (L-L) |
| Voltage Rating | 120/240V AC |
| Width | 2 1/4" , 2.25" |
| Wire | 3 |
| Wire Gauge | 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 6.86 |
| HS code | 8536308000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Phase | Voltage | Number Of Poles | Number Of Wires | Modes Of Protection | Height | Max. Surge Current Per Phase | Voltage Protection Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

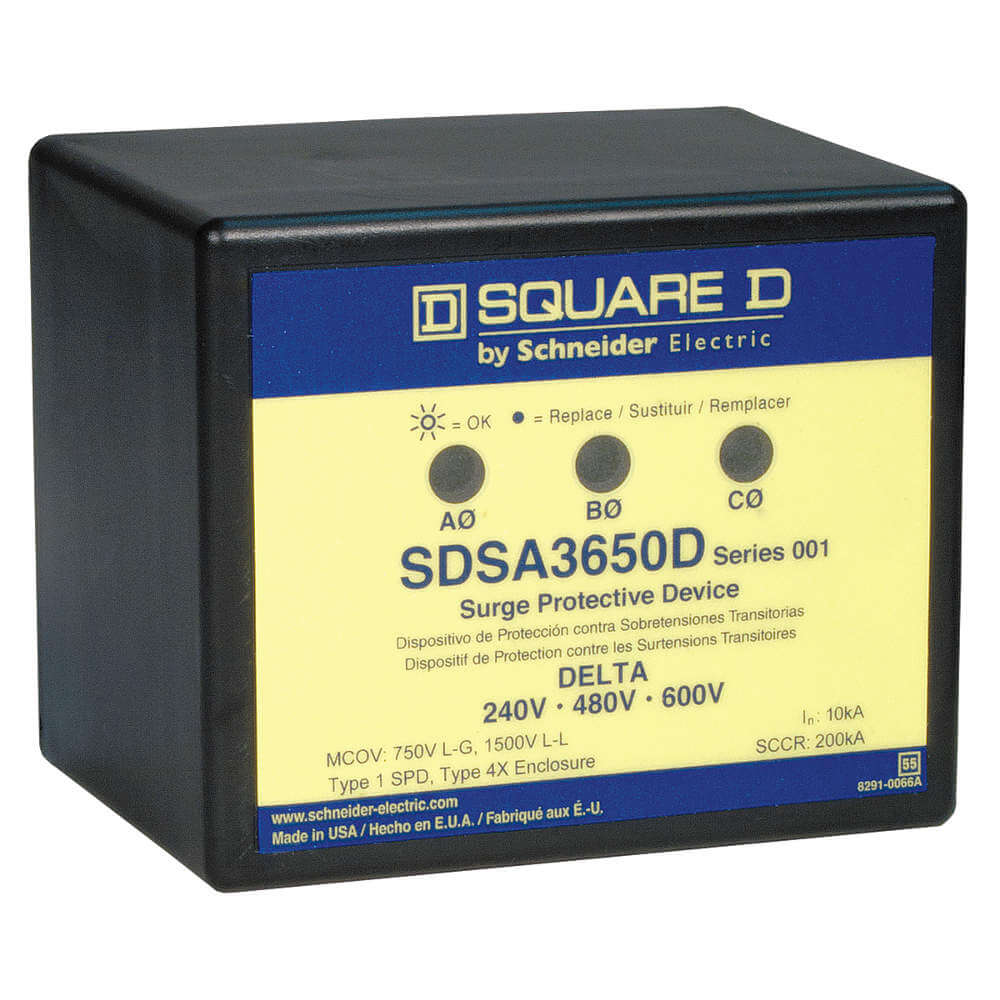

SDSA3650D | 3 | 600V AC | 3 | 3 | 3 | 3" | 40 kA | 3000V | €551.41 | |
 |
TVS6HWA10X | 3 | 240V AC Delta | 1 | 4 | 6 | 4 4/5" | 100 kA | 1500V | €1,984.25 | |
 |

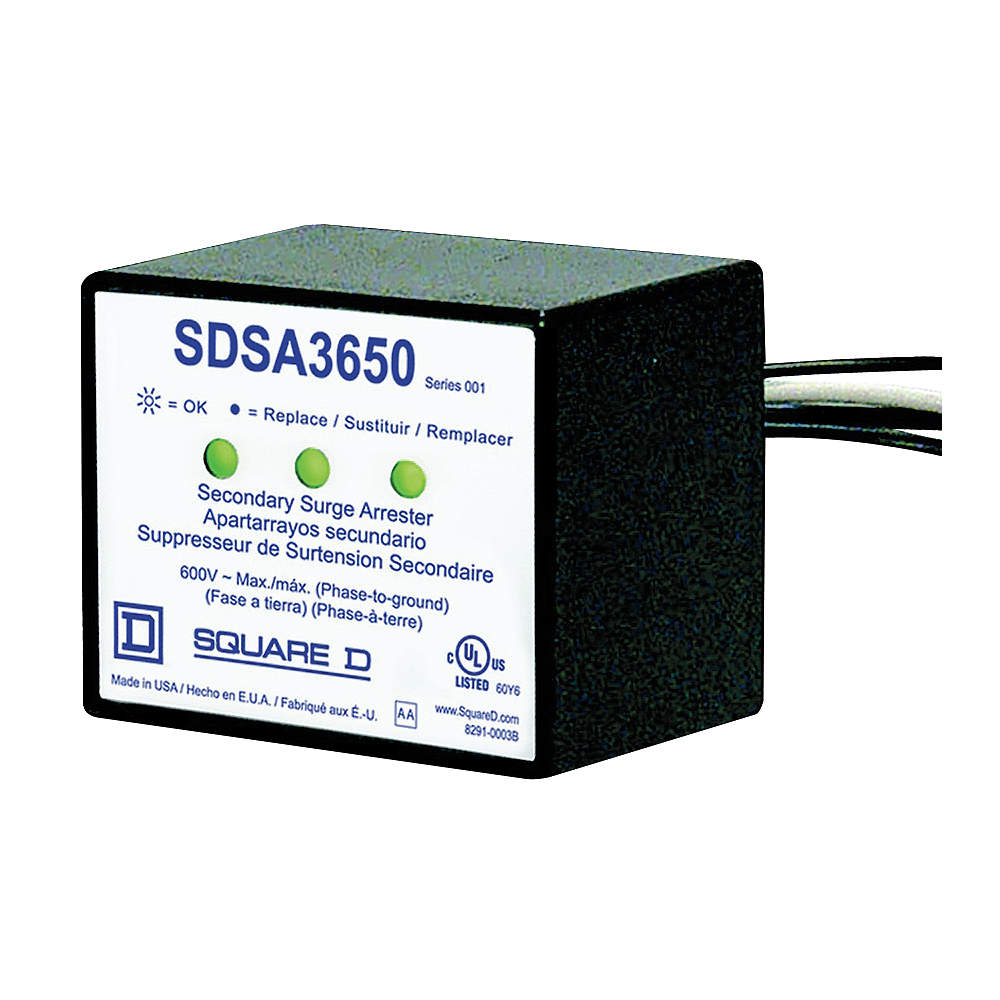

SDSA3650 | 3 | 347/600V AC | 3 | 4 | 6 | 3" | 40 kA | 1800V (L-N), 3000V (L-L) | €408.76 |
