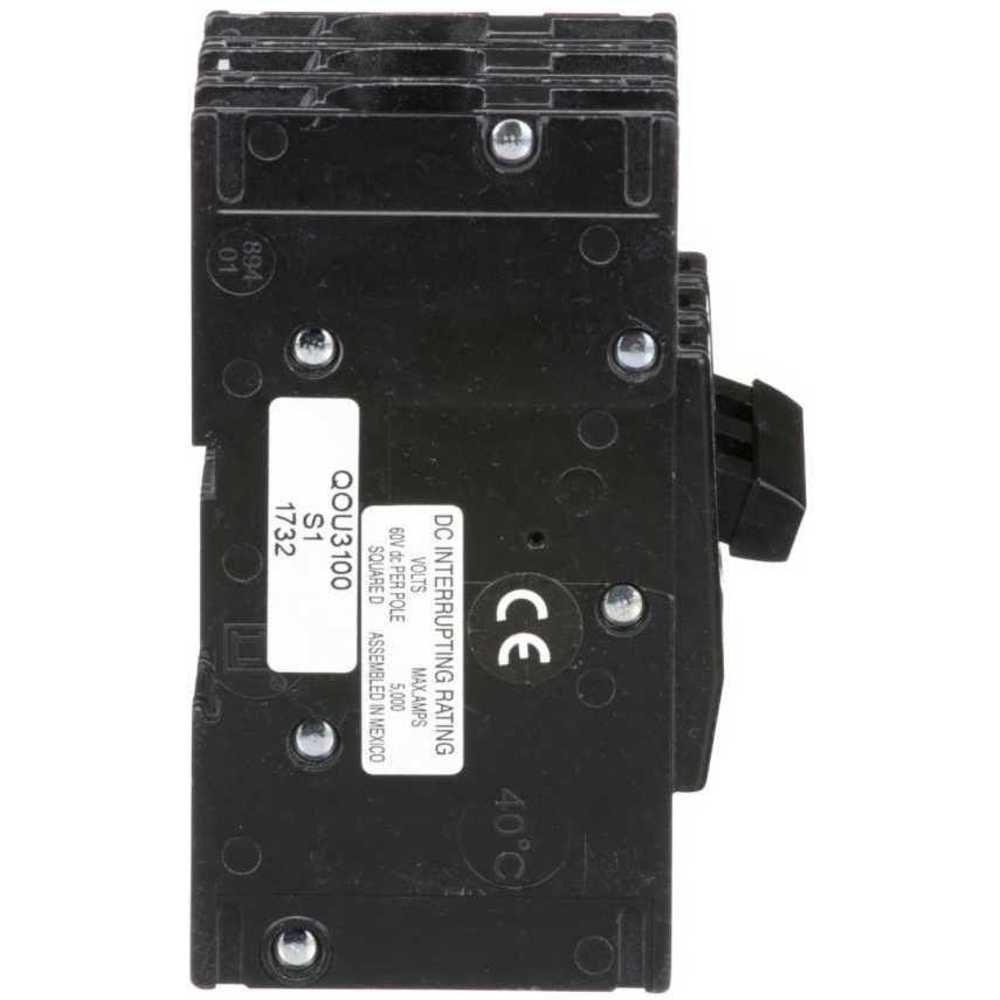

SQUARE D QOU3100 Unit Mount Circuit Breaker Qou 3p 100a
Item: AG7CYXModel: QOU3100Cross Ref: 5B997
7 In Stock
Ships within 2 days via
10.00% off
€674.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Unit Mount Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 100A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Surface/Din Rail |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | 60V DC |
| Dc Voltage Rating | 60V DC |
| Depth | 2.95" |
| For Use With | Air Conditioning And Refrigeration Equipment, Heating |
| Frame Size | 100A, QOU |
| Length | 4.45" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Wire Size | 2/0 AWG |
| Min. Wire Size | 12 AWG |
| Number Of Poles | 3 |
| Phase | 3 |
| Terminal Connection | Slotted Box Lug (Non-Reversible Line And Load) |
| Width | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 8.89 |
| HS code | 8536200040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Amps | Circuit Breaker Type | Phase | Max. Air Rating | Dc Voltage Rating | Terminal Connection | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOU290 | 2 | 90A | Standard | 1 | 10 kA At 120/240V AC | 60V DC | Slotted Box Lug (Non-Reversible Line And Load) | 12 AWG | €508.20 | |
 |
QOU330VH | 3 | 30A | Standard | 3 | 22 kA At 240V AC | 48V | Slotted Box Lug (Reversible Line And Load) | 14 AWG | €756.81 | |
 |
QOU115 | 1 | 15A | Standard | 1 | 10 kA At 120/240V AC | 48V | Slotted Box Lug (Reversible Line And Load) | 14 AWG | €85.20 | |
|
QOU115HM | 1 | 15A | High Magnetic | 1 | 10 kA At 120/240V AC | 48V | Slotted Box Lug (Reversible Line And Load) | 14 AWG | €70.70 | |
 |
QOU120 | 1 | 20A | Standard | 1 | 10 kA At 120/240V AC | 48V | Slotted Box Lug (Reversible Line And Load) | 14 AWG | €85.69 | |
 |
QOU120HM | 1 | 20A | High Magnetic | 1 | 10 kA At 120/240V AC | 48V | Slotted Box Lug (Reversible Line And Load) | 14 AWG | €47.14 | |
|
QOU125 | 1 | 25A | Standard | 1 | 10 kA At 120/240V AC | 48V | Slotted Box Lug (Reversible Line And Load) | 14 AWG | €84.90 |
