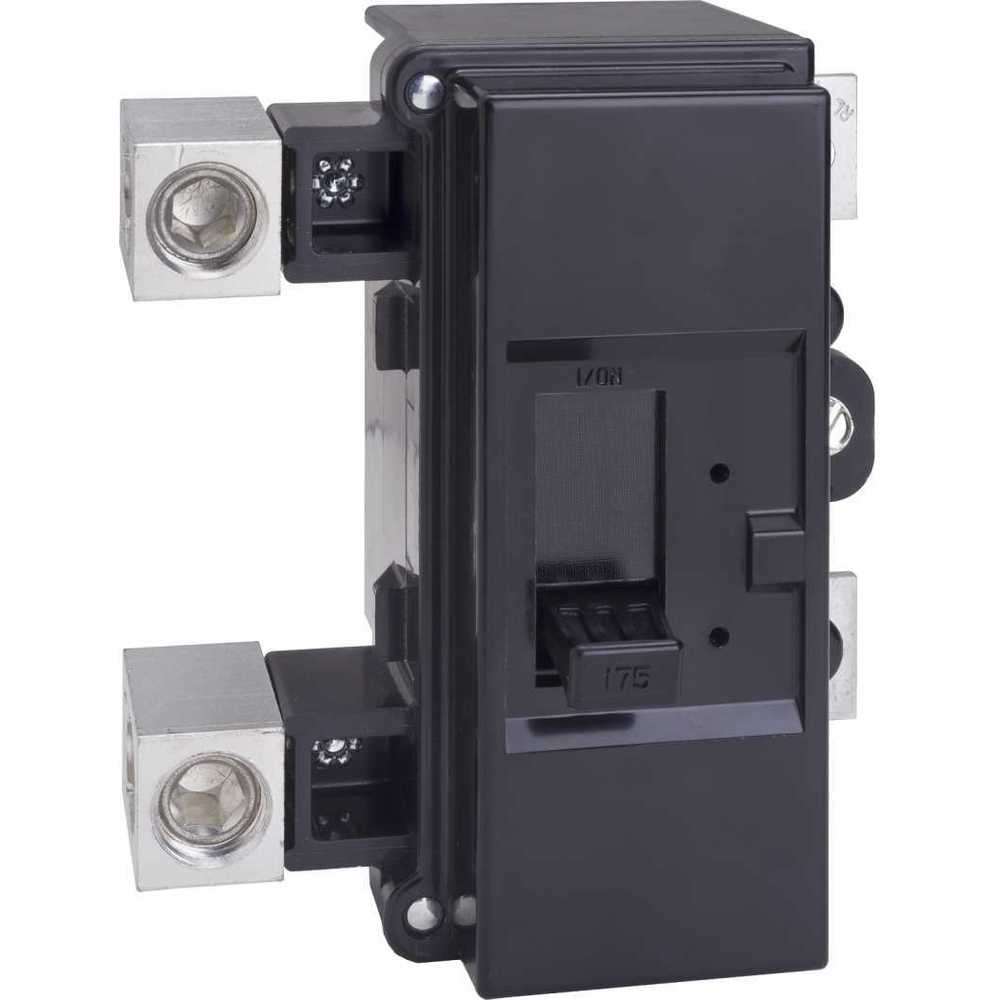

SQUARE D QOM2175VH Bolt On Circuit Breaker Qo 175 Amp 240vac 2p 22kaic@240v

Square D QOM2175VH circuit breaker protects electrical systems, equipment and personnel from short circuit and overload conditions. It also helps to switch on AC and DC systems.

Features:

• It offers bolt-on mounting, allowing quick and secure field installation to the QO / Homeline load centre and panelboards.
• This circuit breaker features a trip-free toggle mechanism with quick make-quick break action to freely move from its end position to the trip position.
• It also features a key-operated mechanism that allows manual setting of a circuit breaker in the ON-OFF / RESET position.
• It has a 2-pole configuration to provide a standard current flow rated at 175A and interrupt rating of 22kA @ 120/240VAC.
• Its compact size allows use in applications where space is a concern.

Standards and Approvals:

• UL
• CSA

Frequently Asked Questions:

Q. What is the purpose of a Visi-trip indicator?

A. Visi-Trip indicator provides a visual indication of tripped status in a circuit breaker.

Q. What is a lug connection?

A. A lug component connects the cable to the terminals of electrical devices. It allows easy and secure connection or disconnection of electrical joints, either permanently or for maintenance purposes.

Q. Which wire is applicable for use with this circuit breaker?

A. The QO series circuit breaker accepts aluminium or copper wire for a secure connection.
