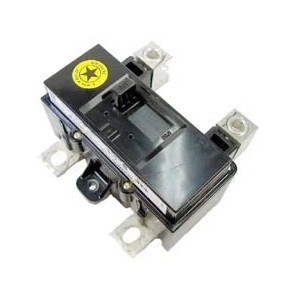

SQUARE D QOM2150MVH Main Breaker, Bolt On, 2 Pole, 1 Phase, 150A, 240VAC
Item: CE6JVUModel: QOM2150MVH
7 In Stock
Ships within 2 days via
5.00% off
€863.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ambient Rating | 104°F |
| Amps | 150A |
| Amps Rating | 150A |
| Depth | 3.6" |
| Electrical Connection | Lugs |
| For Use With | QO Load Center |
| Frame Size | QOM2 |
| Frame Type | QO |
| Height | 5 3/5" |
| Interrupt Rating | 22 kA @ 120/240V AC, 22 kA @ 120V AC |
| Load Center Type | Main Breaker |
| Mounting Type | Bolt On |
| No. Of Poles | 2 |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Ratings | Primary main Breaker |
| Returnability | Yes |
| Tightening Torque | 53.1 lbf.in. @ 0.006 sq. in. to 0.1 sq. in. @ 12 AWG to 2/0 AWG |
| Voltage | 240V |
| Voltage Rating | 120/240V AC |
| Voltage Type | AC |
| Width | 5.08" |
| Wire Size | 4 AWG to 300 kcmil |
Shipping Info:
| Ship weight (kg) | 1.21 |
| Ship height (cm) | 10.39 |
| Ship length (cm) | 16.31 |
| Ship width (cm) | 14 |
| Country of Origin | MX |
Product Details:
- Square D QOM2150MVH main breaker ideal for protection against current overloads & short circuits in power distribution applications
- Suitable for use with QO loadcentres
- Thermal-magnetic trip unit for both long-time and instantaneous current limiting functions
- Features lug terminals for accommodating copper or aluminium wires of sizes from 4 AWG to 300 kcmil
- Bolt-on mounting for installation in vertical or horizontal orientation
- UL-listed and CSA-certified
Product Variants
| Product | Model | Amps | Depth | Frame Size | Aic Rating | Min. Wire Size | Max. Wire Size | Number Of Poles | Frame Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOM100VH | 100A | 3.47" | 100A/QO | - | 12 AWG | 2 AWG | 2 | - | €150.83 | |
 |
QOM2150VH | 150A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | 2 | - | €316.51 | |
 |
QOM2200VH | 200A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | 2 | - | €316.51 | |
 |
QOM125VH | 125A | 5" | 100A/QO | - | 4 AWG | 300 mcm | 2 | - | €309.76 | |
 |
QOM2100VH | 100A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | 2 | - | €316.51 | |
 |
QOM2125VH | 125A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | 2 | - | €316.51 | |
 |
QOM70VH | 70A | 5" | 100A/QO | - | 12 AWG | - | 2 | - | €150.83 |
