SQUARE D QOB350EPD Miniature Circuit Breaker, 50 A, 240V AC, Three Phase, 10kA at 240V AC, QOB, 3 Poles
Item: CU4FWCModel: QOB350EPDCross Ref: 6RHF8
7 In Stock
Ships within 2 days via
5.00% off
€1,346.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Circuit Breaker |
| Ac Voltage Rating | 240V AC |
| Ambient Rating | 104°F |
| Amps | 50A |
| Amps Rating | 50A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Ground Fault Equipment Protection , Ground Fault Protecting Class B 30 mA |
| Compatible Panelboard/load Center Series | NQ, QO |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 2.9" , 2.91" |
| Electrical Connection | Box Lugs |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A/QO |
| Height | 4.1" |
| Interrupt Rating | 10 kA @ 240V AC |
| Length | 4 3/25" |
| Max. Air Rating | 10 kA At 240V AC |
| Max. Operating Temp. | 104°F |
| Maximum Wire Size | 4 AWG, 6 AWG |
| Mfr. Series | QOB Series |
| Min. Operating Temp. | 77°F |
| Minimum Wire Size | 12 AWG, 14 AWG |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 3 |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Phase | 3 |
| Ratings | Not Rated |
| Returnability | Yes |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Tightening Torque | 44.3 lbf.in. @ 0.006 sq. in. to 0.03 sq. in. @ 12 AWG to 4 AWG |
| Voltage Rating | 240V AC |
| Width | 2 1/4" , 2.2" |
| Wire Size | 12 AWG to 4 AWG, 14 AWG to 6 AWG , 4 AWG, 6 AWG |
Shipping Info:
| Ship weight (kg) | 0.76 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 10.46 |
| Ship width (cm) | 5.72 |
| Country of Origin | MX |
Product Variants
| Product | Model | Depth | Phase | Circuit Breaker Mounting Style | Number Of Poles | Amps | Ac Voltage Rating | Max. Air Rating | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

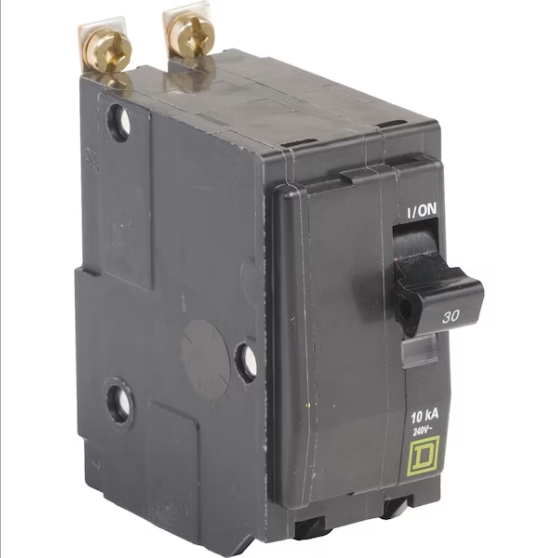

QOB230H | 2.9" | - | - | - | - | - | - | Bolt On | €486.52 | |
 |

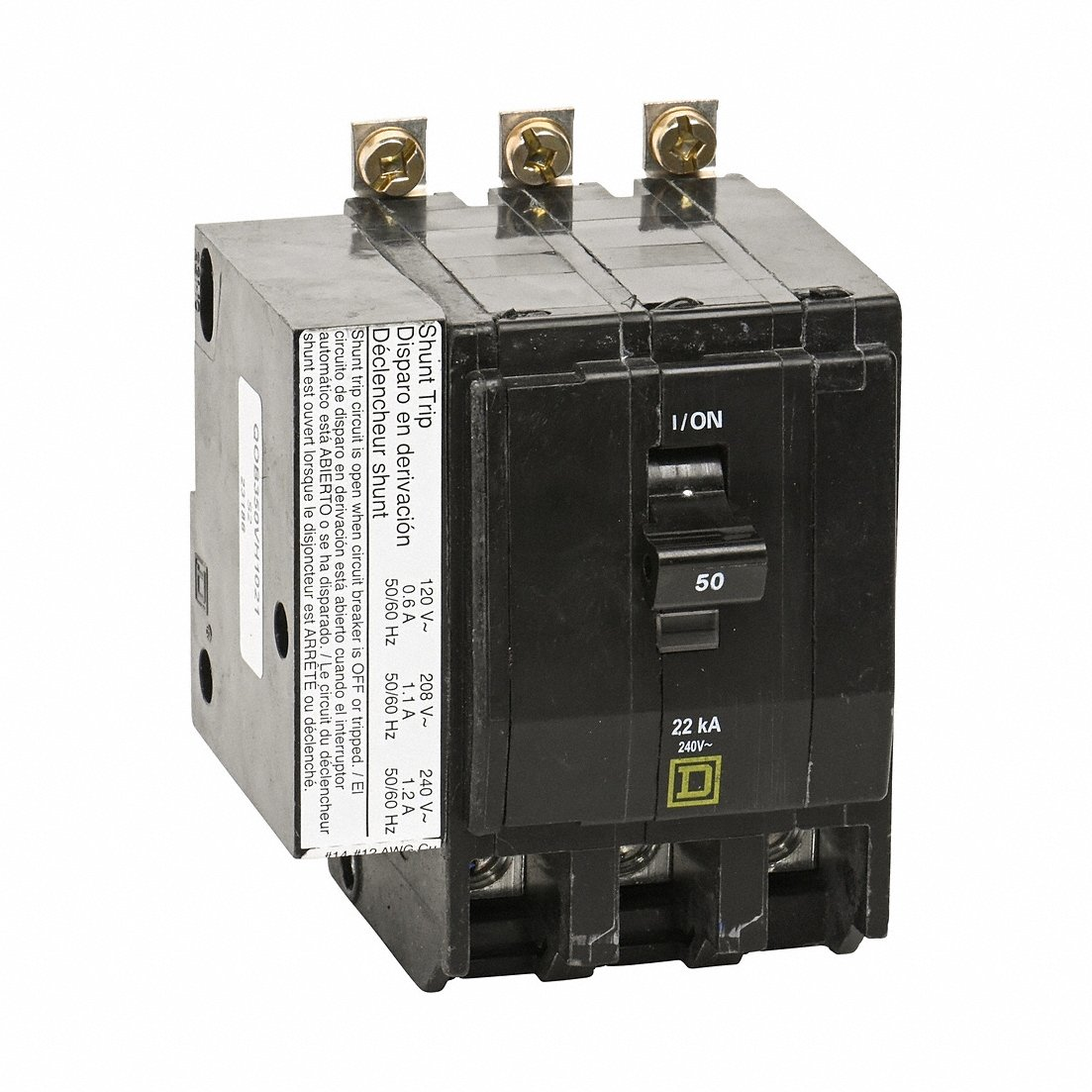

QOB350VH1021 | 2.9" | - | - | - | - | - | - | Bolt On | €1,252.96 |
