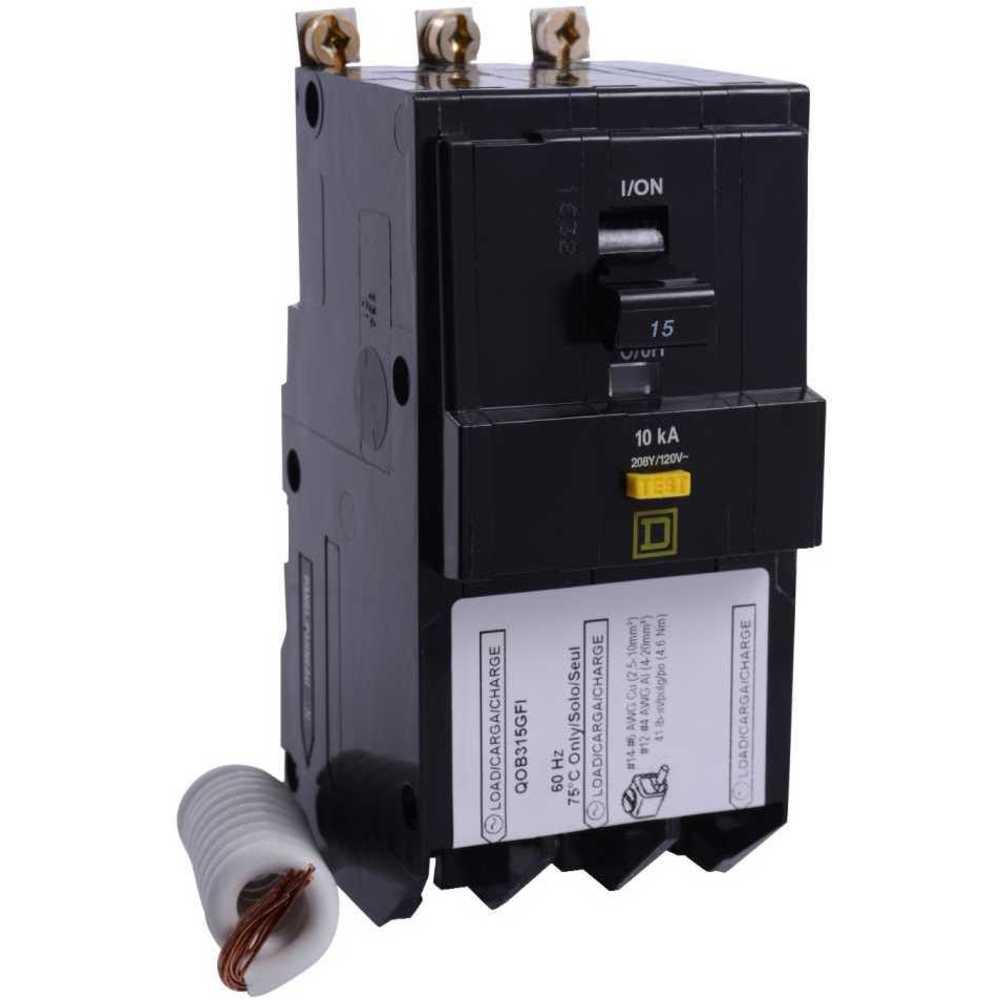

SQUARE D QOB315GFI Bolt On Circuit Breaker 15a 3p 10ka 120v
Item: AG7FXHModel: QOB315GFICross Ref: 6PHL6
7 In Stock
Ships within 2 days via
10.00% off
€1,157.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/208V AC |
| Amps | 15A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Compatible Panelboard/load Center Series | NQ, QO |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 2.91" |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame | 100A/QO |
| Length | 4 3/25" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 208/120V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 14 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Box Lug |
| Width | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 0.78 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 10.46 |
| Ship width (cm) | 5.72 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Amps | Depth | Terminal Connection | Max. Air Rating | Dc Voltage | Terminal Connection Type | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €382.10 | |
 |
QOB120CAFI | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €461.87 | |
 |
QOB120VHCAFI | 1 | 20A | 2.91" | Pressure Plate | 22 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €813.95 | |
 |
QOB110 | 1 | 10A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €24.20 | |
 |
QOB115 | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €22.75 | |
 |
QOB120 | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €24.28 | |
 |
QOB130 | 1 | 30A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €25.45 |
