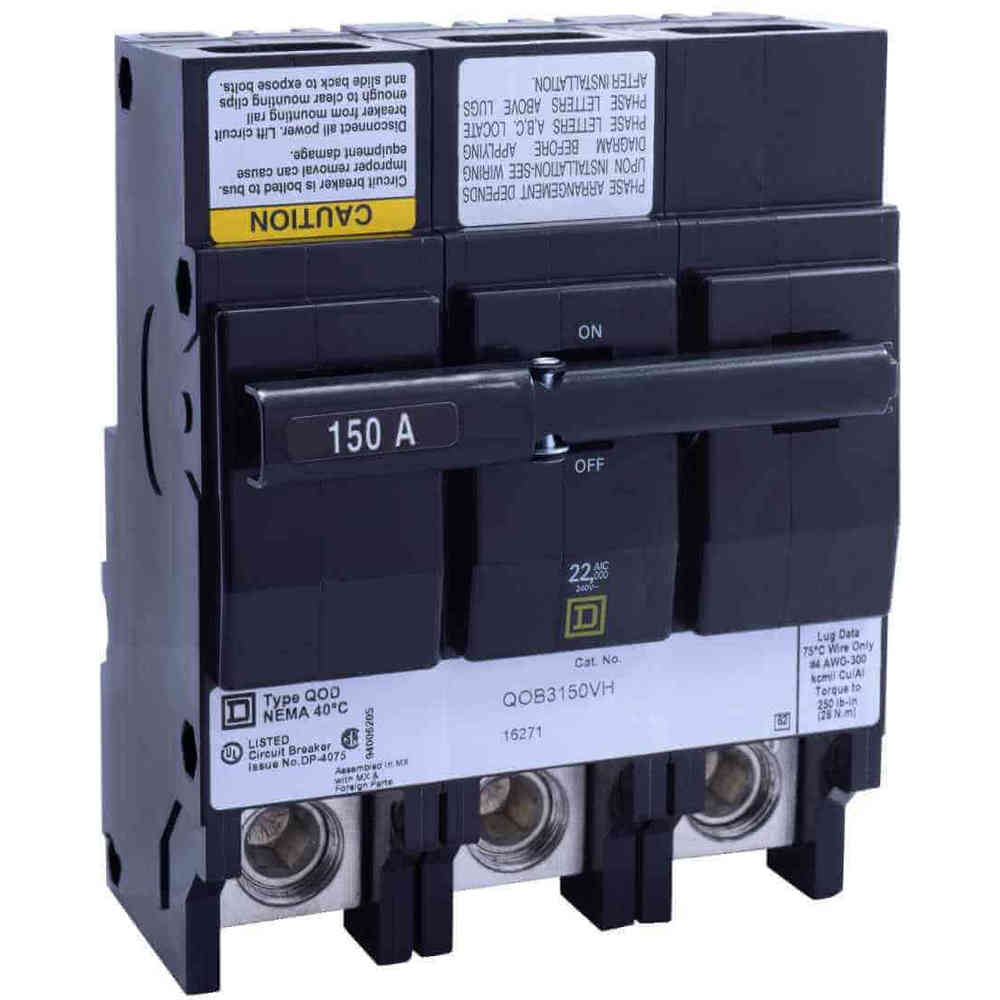

SQUARE D QOB3150VH Qwik-Open Circuit Breaker, Bolt-On, VisiTrip, 150 A, 240 VAC
Item: AF9FQWModel: QOB3150VHCross Ref: 2DM84
7 In Stock
Ships within 2 days via
5.00% off
€1,641.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Ambient Rating | 104°F |
| Amps | 150A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | High Interrupting Capacity , Standard |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | Not Rated |
| Depth | 4.9" |
| Electrical Connection | Box Lugs |
| For Use With | Square D Nqod Panelboards |
| Frame Size | 100A/QO |
| Height | 5.7" |
| Interrupt Rating | 22 kA @ 120/240V AC, 22 kA @ 240V AC, 22 kA @ 120V AC |
| Length | 5.72" |
| Max. Air Rating | 22kA |
| Max. Air Rating | 22 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 300 MCM |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 4 AWG |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 6 |
| No. Of Poles | 3 |
| Phase | 3 |
| Product Datasheet | square-d-qob3150vh.pdf |
| Rating | Not Rated |
| Returnability | Yes |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Tightening Torque | 250.5 lbf.-in. |
| Voltage | 120/240V AC |
| Wire Size | 4 AWG to 300 kcmil |
Shipping Info:
| Ship weight (kg) | 1.77 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 17.02 |
| Ship width (cm) | 12.7 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Qwik-Open bolt-on circuit breaker ideal for use with NQ or NQOD panelboards to provide overcurrent protection
- Features a thermal-magnetic trip unit to provide both instantaneous and long-time current limiting protection
- Equipped with lug terminals to accommodate wire sizes ranging between 4 AWG and 300 kcmi and a VisiTrip indicatior to display the tripping / breaking status of the circuit
- UL-listed / CSA-ceritfied
Documentation:
Product Variants
| Product | Model | No. Of Poles | Amps | Voltage | Height | Depth | Electrical Connection | No. Of Panel Spaces | Returnability | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 1 | 15A | 120V AC | 4 4/5" | 2.9" | Pressure Plate | 1 | No | €260.08 | |
 |
QOB120CAFI | 1 | 20A | 120V AC | 4 4/5" | 2.9" | Pressure Plate | 1 | Yes | €260.08 | |
 |
QOB120VHCAFI | 1 | 20A | 120V AC | 4 4/5" | 2.9" | Pressure Plate | 1 | No | €505.96 | |
 |
QOB110 | 1 | 10A | 120/240V AC | 3" | 2.9" | Pressure Plate | 1 | Yes | €28.96 | |
 |
QOB115 | 1 | 15A | 120/240V AC | 3" | 2.9" | Pressure Plate | 1 | Yes | €28.07 | |
 |
QOB120 | 1 | 20A | 120/240V AC | 3" | 2.9" | Pressure Plate | 1 | Yes | €30.58 | |
 |
QOB130 | 1 | 30A | 120/240V AC | 3" | 2.9" | Pressure Plate | 1 | Yes | €31.57 |
