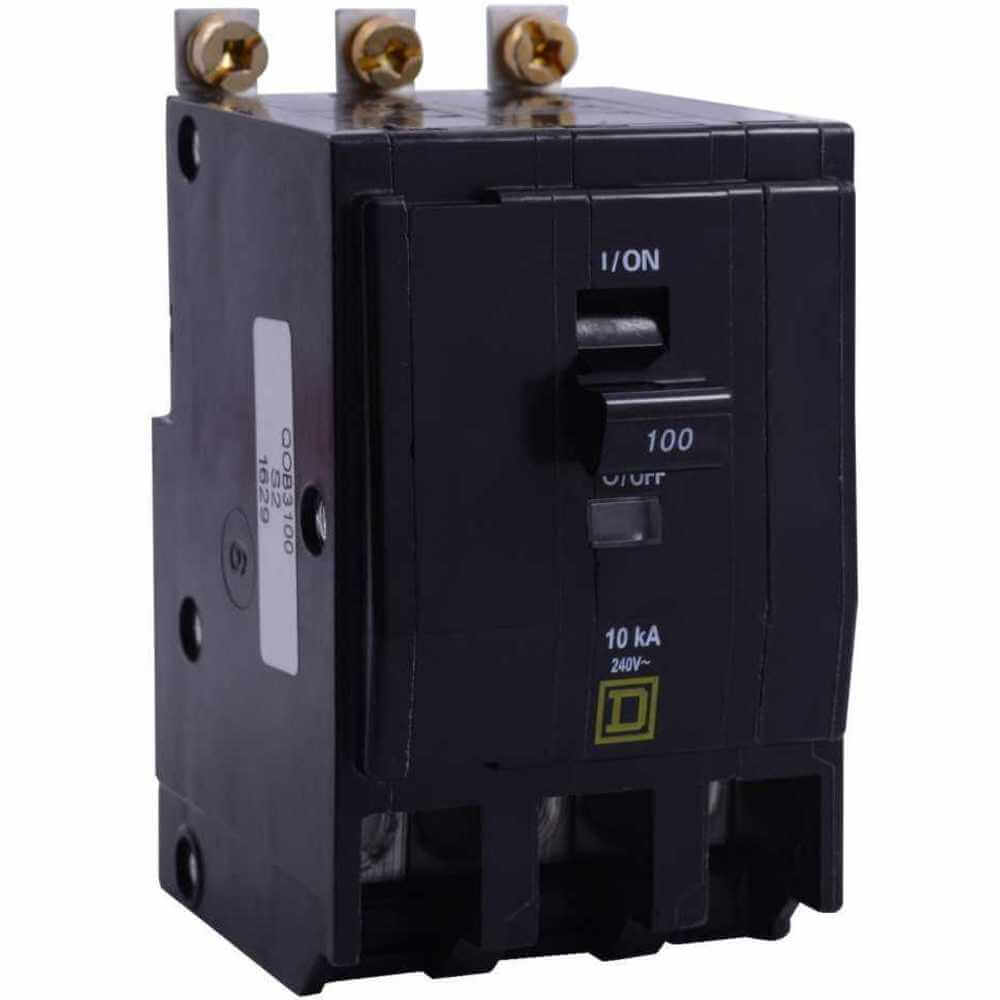

SQUARE D QOB3100 Bolt-On Circuit Breaker, 100 A, 240 V, 3 P, Lug
Item: AF6PPFModel: QOB3100Cross Ref: 1H891
7 In Stock
100A
3
Ships within 2 days via
10.00% off
€179.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 100A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | 48V DC |
| Dc Voltage Rating | 48V |
| Depth | 2.91" |
| For Use With | Square D Nqod Panelboards |
| Frame Size | 100A/QO |
| Length | 3 1/2" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 2 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 4 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Width | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 5.72 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Qwik-Open Series bolt-on circuit breaker suitable for switching AC and DC systems, as well as providing overcurrent protection; ideal for use with NQ or NQOD panelboards
- Features a thermal-magnetic trip unit to provide both instantaneous and long-time current limiting protection and a VisiTrip trip indicatior for providing a visual indication that tripping has occurred
- Lug terminal connection to accommodate wire sizes ranging between 4 and 2/0 AWG
- UL-listed / CSA-ceritfied
Product Variants
| Product | Model | Number Of Poles | Amps | Depth | Terminal Connection | Max. Air Rating | Dc Voltage | Terminal Connection Type | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €382.10 | |
 |
QOB120CAFI | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €461.87 | |
 |
QOB120VHCAFI | 1 | 20A | 2.91" | Pressure Plate | 22 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €813.95 | |
 |
QOB110 | 1 | 10A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €24.20 | |
 |
QOB115 | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €22.75 | |
 |
QOB120 | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €24.28 | |
 |
QOB130 | 1 | 30A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €25.45 |
