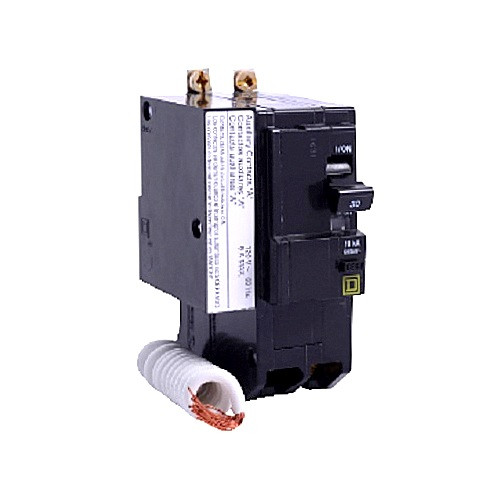

SQUARE D QOB230EPD1200 Bolt-On Circuit Breaker, 30A, 120V, 10kAIC, Thermal Magnetic
Get it by Wednesday, Apr 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ambient Rating | 104°F |
| Amps Rating | 30A |
| Circuit Breaker Type | Ground Fault Protecting Class B 30 mA |
| Depth | 2.9" |
| Electrical Connection | Pressure Plate |
| Frame Type | QOB |
| Height | 4.1" |
| Interrupt Rating | 10 kA @ 120/240V AC, 10 kA @ 120V AC |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 3 |
| No. Of Poles | 2 |
| Number Of Poles | 2 |
| Options | Auxiliary Switch 120V AC 1A |
| Ratings | Not Rated |
| Returnability | No |
| Tightening Torque | 35.4 lbf.in. @ 0.006 sq. in. to 0.03 sq. in. @ 12 AWG to 4 AWG |
| Voltage Rating | 120/240V AC |
| Voltage Type | AC |
| Width | 2.2" |
| Wire Size | 14 AWG to 8 AWG, 12 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.51 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 12.37 |
| Ship width (cm) | 8.26 |
| Country of Origin | US |
Product Details:
- Square D QOB230EPD1200 circuit breaker designed to protect an electrical circuit from damages caused by excess current flows
- Thermal-magnetic trip mechanism providing both long time and instantaneous current limiting functions
- Class B 30mA ground fault wiring which opens when the current reaches the setting of the ground fault sensor
- Equipped with an auxiliary switch to provide remote signalling facility
- Pressure plate terminals to facilitate single- or two-wire terminations; ideal for use with 60 or 75 deg Celsius conductors
Product Variants
| Product | Model | Number Of Poles | Amps | Depth | Terminal Connection | Terminal Connection Type | Max. Air Rating | Phase | Frame Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB230EPD | 2 | 30A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120/240V AC | Single | - | €626.74 | |
 |
QOB115EPD | 1 | 15A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €273.68 | |
 |
QOB120EPD | 1 | 20A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €363.04 | |
 |
QOB125EPD | 1 | 25A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €798.30 | |
 |
QOB130EPD | 1 | 30A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €363.04 | |
 |
QOB215EPD | 2 | 15A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120/240V AC | Single | - | €626.74 | |
 |
QOB220EPD | 2 | 20A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120/240V AC | Single | - | €626.74 |
