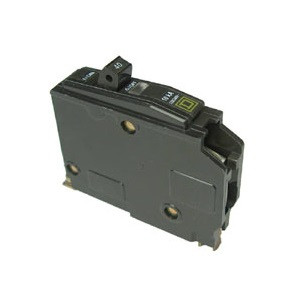

SQUARE D QOB170VH QOB Series Circuit Breaker, 1P, 120VAC, 70A, Bolt-On
Get it by Thursday, Apr 2
€177.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ambient Rating | 104°F |
| Amps | 70A |
| Amps Rating | 70A |
| Circuit Breaker Type | Standard |
| Depth | 2.9" |
| Electrical Connection | Box Lugs |
| Frame Type | QOB |
| Height | 3.1" |
| Interrupt Rating | 22 kA @ 120/240V AC, 22 kA @ 120V AC |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 1 |
| No. Of Poles | 1 |
| Number Of Poles | 1 |
| Ratings | HACR Rated |
| Returnability | No |
| Tightening Torque | 40.7 lbf.-in. |
| Voltage Rating | 120/240V AC |
| Voltage Type | AC |
| Width | 1.5" |
| Wire Size | 8 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 7.9 |
| Ship length (cm) | 7.39 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
Product Details:
- Square D QOB170VH miniature circuit breaker designed for interrupting the current flow when exposed to short-circuit and overload conditions
- Thermal-magnetic trip mechanism providing both instantaneous and time-delayed current limiting functions
- Bolt-on mounting facility equipped with line- and load-side lug terminals (box lugs) for quick field installations and secure wiring
- Accommodates copper and aluminium wiring arrangement of sizes ranging between 8 and 2 AWG
- Meets UL and CSA requirements
Product Variants
| Product | Model | Number Of Poles | Amps | Depth | Terminal Connection | Max. Air Rating | Dc Voltage | Terminal Connection Type | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115CAFI | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €260.08 | |
 |
QOB120CAFI | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €260.08 | |
 |
QOB120VHCAFI | 1 | 20A | 2.91" | Pressure Plate | 22 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | €505.96 | |
 |
QOB110 | 1 | 10A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €28.96 | |
 |
QOB115 | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €28.07 | |
 |
QOB120 | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €30.58 | |
 |
QOB130 | 1 | 30A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | €31.57 |
